Product Information
Ideal for securing pairs of gates in a closed position. Features a locking hasp and staple to prevent risk of animal / equipment theft or unwanted access. Fixings included.
Documents
Technical Specifications
Product Specification
| Carriage Bolt Size mm | M10 x 100 |
| Length inch | 18 |
| Length mm | 450 |
| Nut Size mm | M10 |
| Staple Plate Size L x W mm | 65 x 55 |
| Thickness mm | 6 |
| Washer Size mm | M10 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Max Padlock Shackle Diameter mm | 12 |
| No of Nuts | 1 |
| No of Carriage Bolts | 1 |
| No of Washers | 1 |
| To Suit Gate Thickness mm | 75 |
| Pack Dimensions L x W x H mm | 178 x 30 x 610 |
| Pack Weight kg | 2.4 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | 200 |
| Product Code | TLGL450G |
| SKU Barcode | 5055893360057 |
| To Fit Carriage Bolt Dia mm | M10 |
| No of Bolt Holes | 2 |
Product Specifications
| Finish | Hot Dipped Galvanised |
| Material | Carbon Steel |
| Nut Type | Hex Full |
| Included Items | M10 x 100mm Carriage Bolt (Qty 1), M10 Washer (Qty 1), M10 Hex Full Nut (Qty 1) |
Attribute Group 1
| Brand | TIMCO |

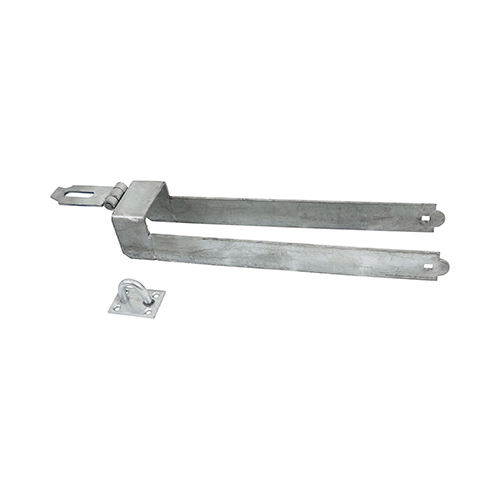

Throw-Over Locking Gate Loop - Hot Dipped Galvanised
450mm
- Product Code: TLGL450G
- Pack Type: Plain Bag
- Pack Quantity: 1
- Barcode: 5055893360057
