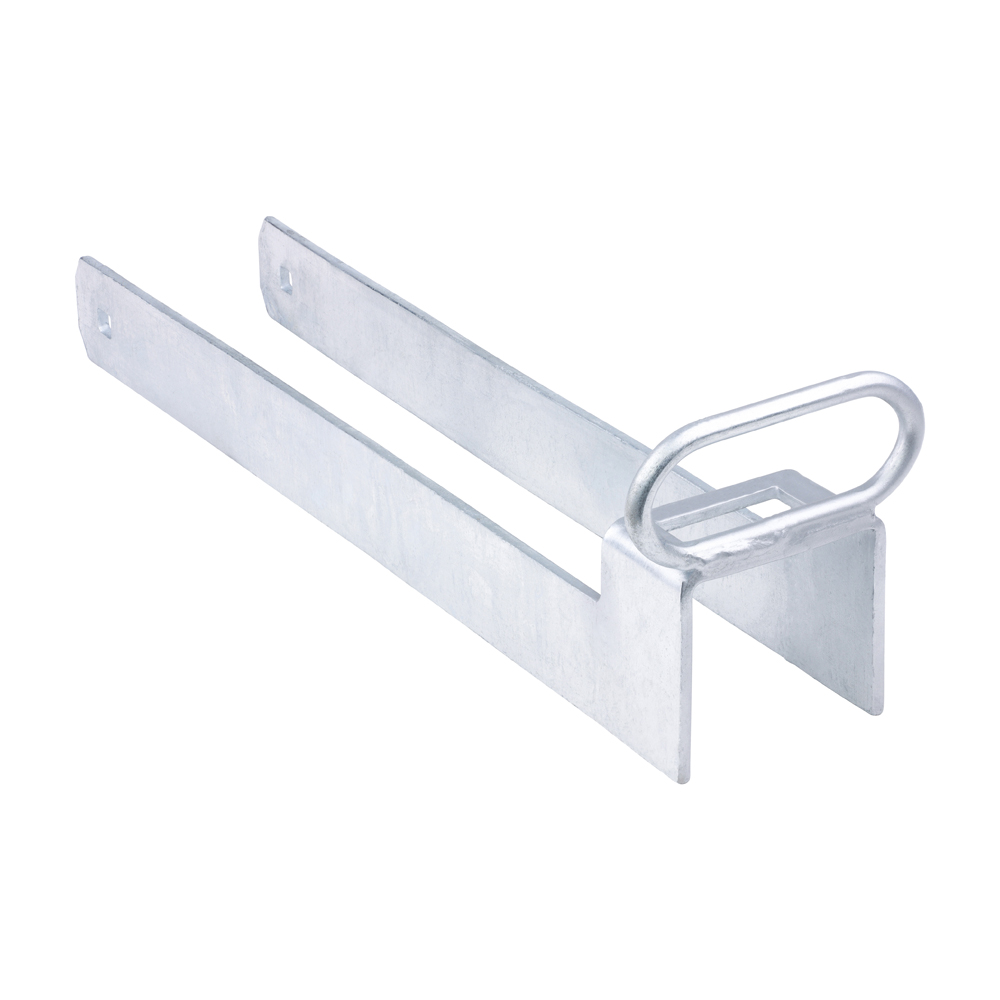

Product Image 1

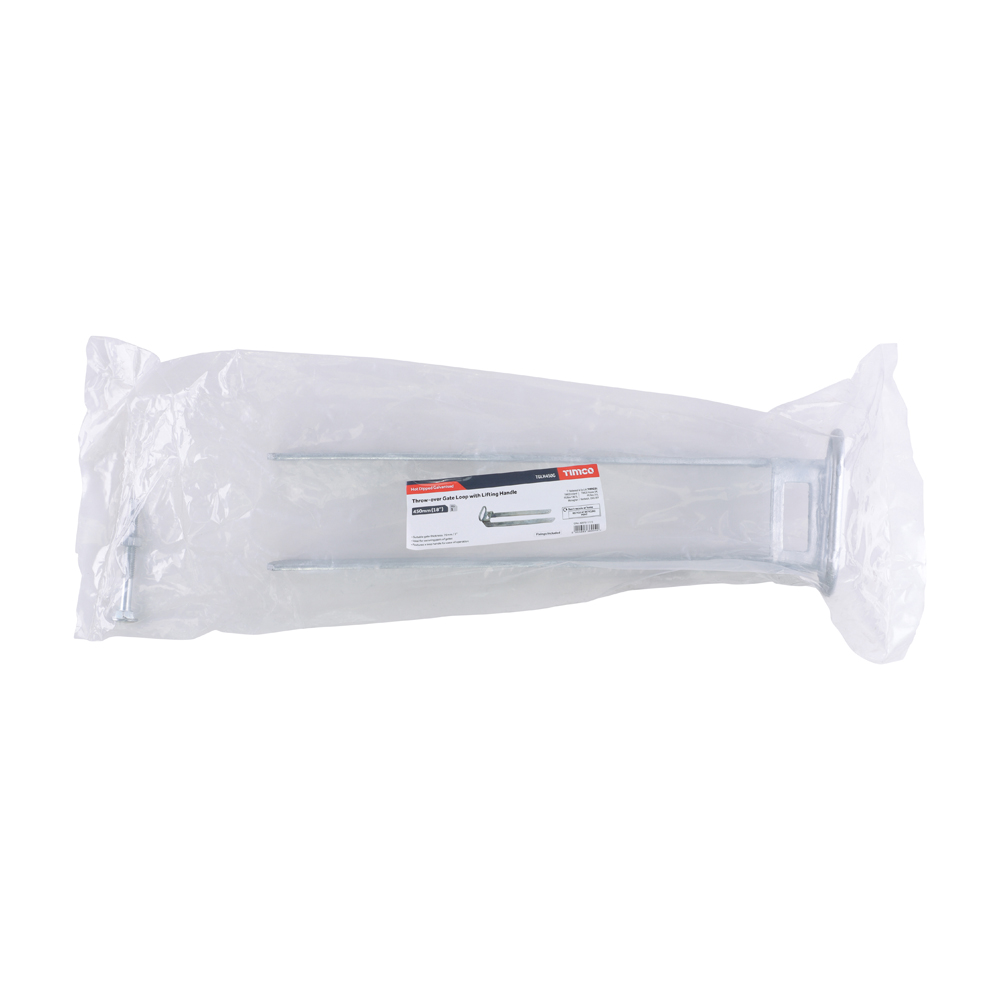

Product Image 2
Product Information
Ideal for securing pairs of gates in a closed position. Features a loop handle for ease of operation, particularly from the saddle of a horse. Fixings included.
Documents
Brochure Page
Technical Specifications
Product Specification
Carriage Bolt Size mm M10 x 100
Handle Size mm 125 x 58
Length inch 18
Length mm 450
Nut Size mm M10
Thickness mm 6
Washer Size mm M10
Corrosion Rating 4 - Urban & industrial areas with a moderate salt atmosphere
No of Nuts 1
No of Carriage Bolts 1
No of Washers 1
To Suit Gate Thickness mm 75
Pack Dimensions L x W x H mm 470 x 143 x 138
Pack Weight kg 2.458
Carton Qty Packs 10
Pallet Qty Packs 200
Product Code TGLH450G
SKU Barcode 5055893360040
To Fit Carriage Bolt Dia mm M10
No of Bolt Holes 2
Product Specifications
Finish Hot Dipped Galvanised
Material Carbon Steel
Nut Type Hex Full
Included Items M10 x 100mm Carriage Bolt (Qty 1), M10 Washer (Qty 1), M10 Hex Full Nut (Qty 1)
Attribute Group 1
Brand TIMCO

Throw-Over Gate Loop With Lifting Handle - Hot Dipped Galvanised

450mm

  • Product Code: TGLH450G
  • Pack Type: Plain Bag
  • Pack Quantity: 1
  • Barcode: 5055893360040
