Product Information

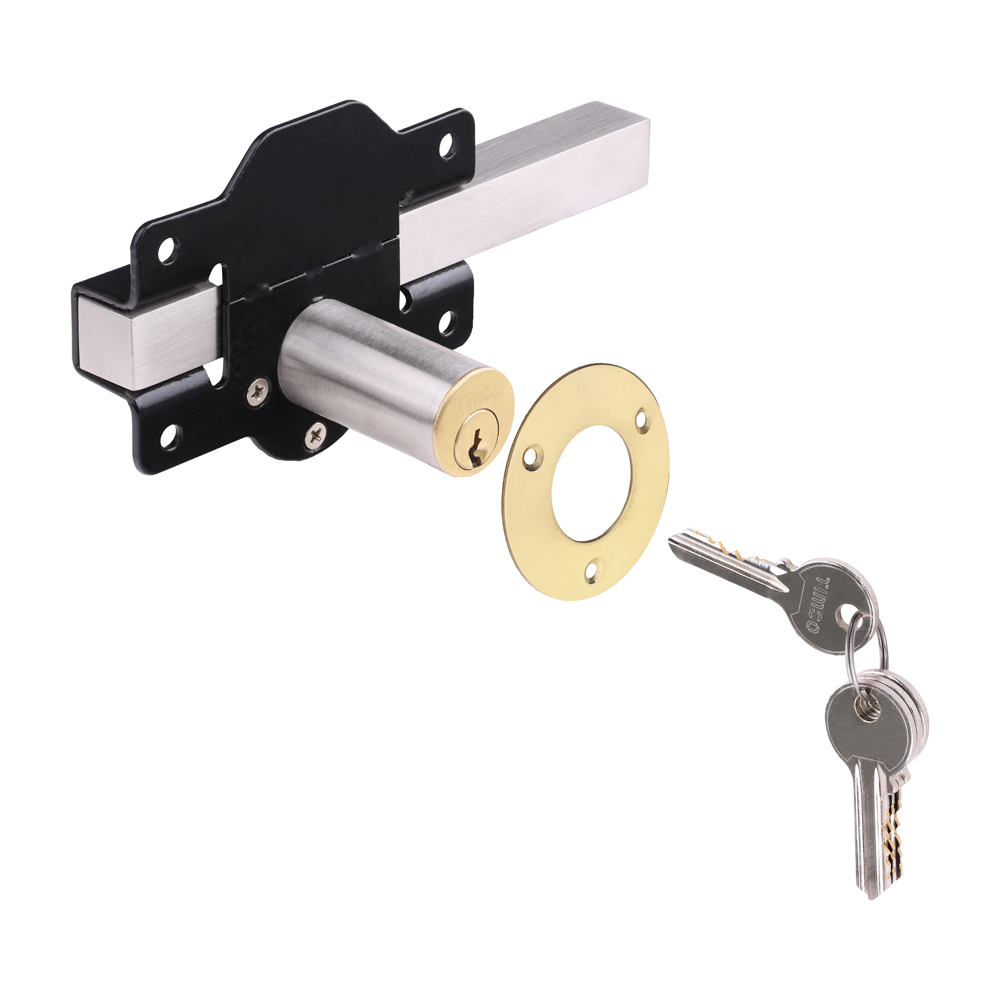

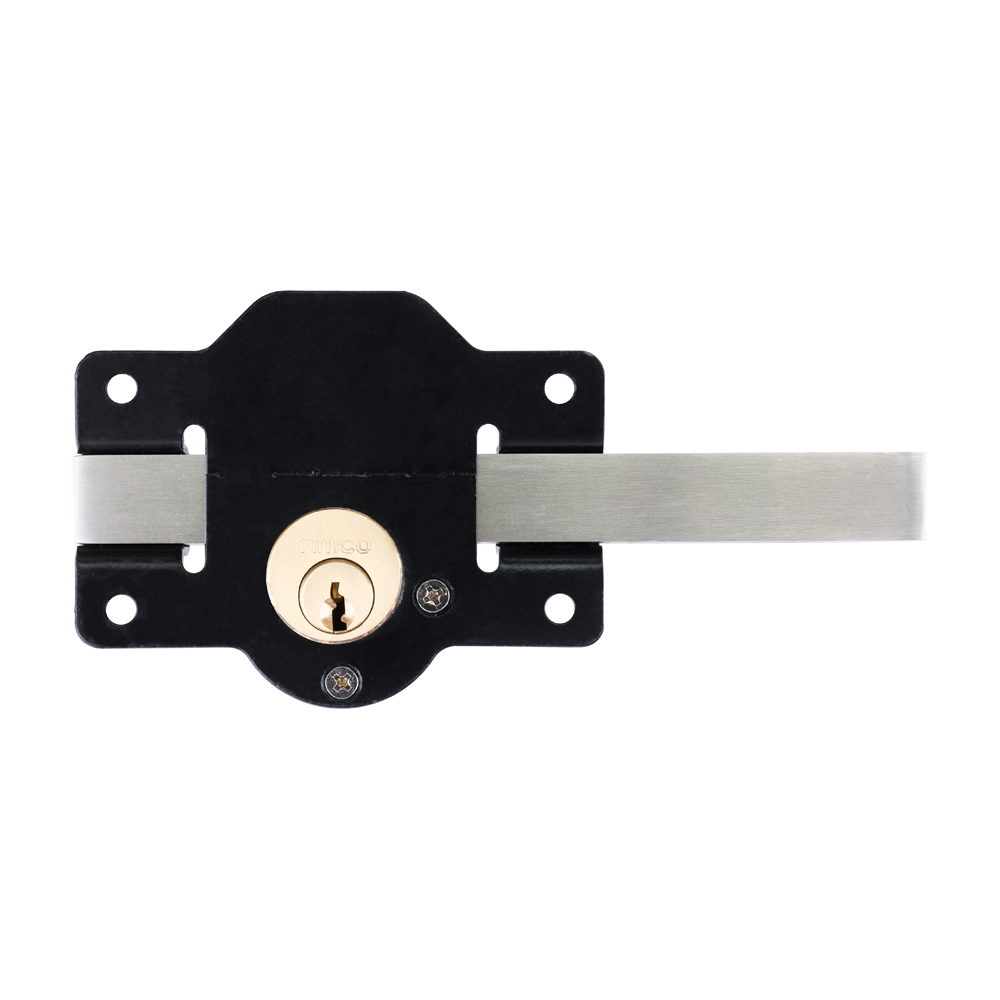

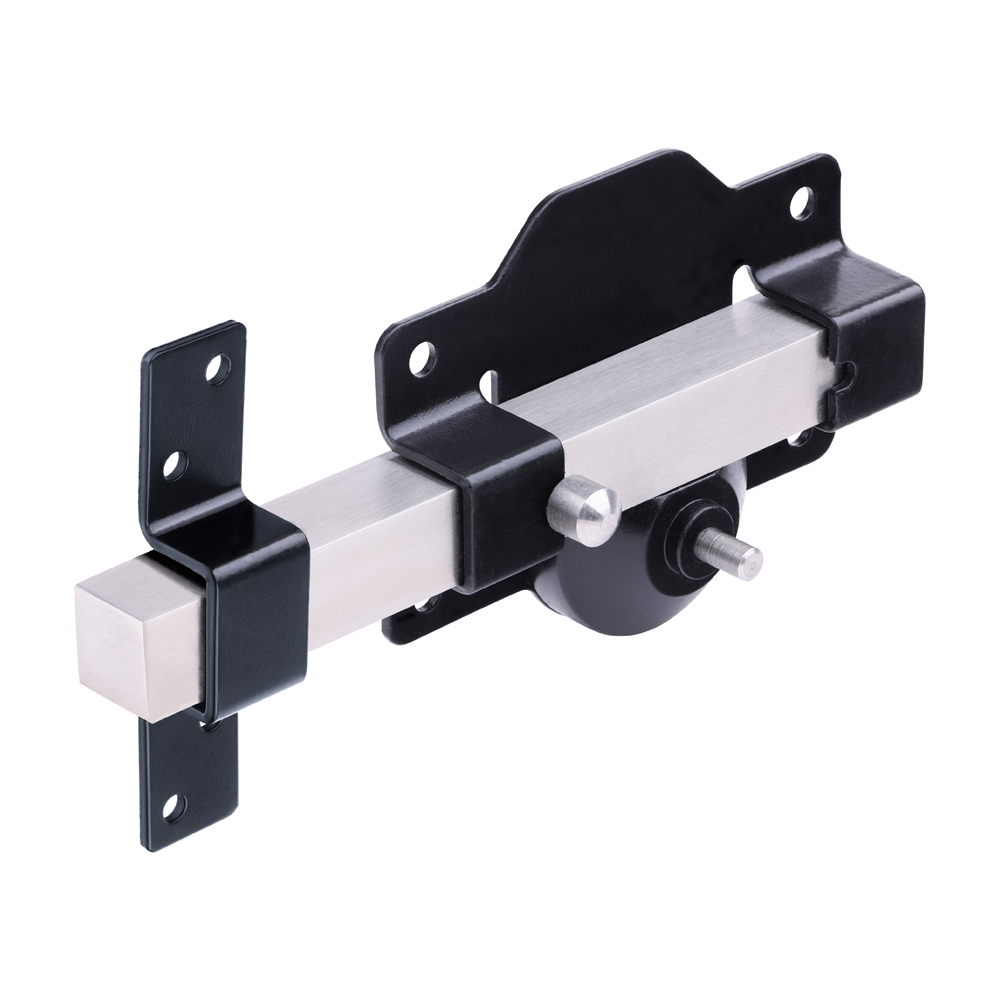

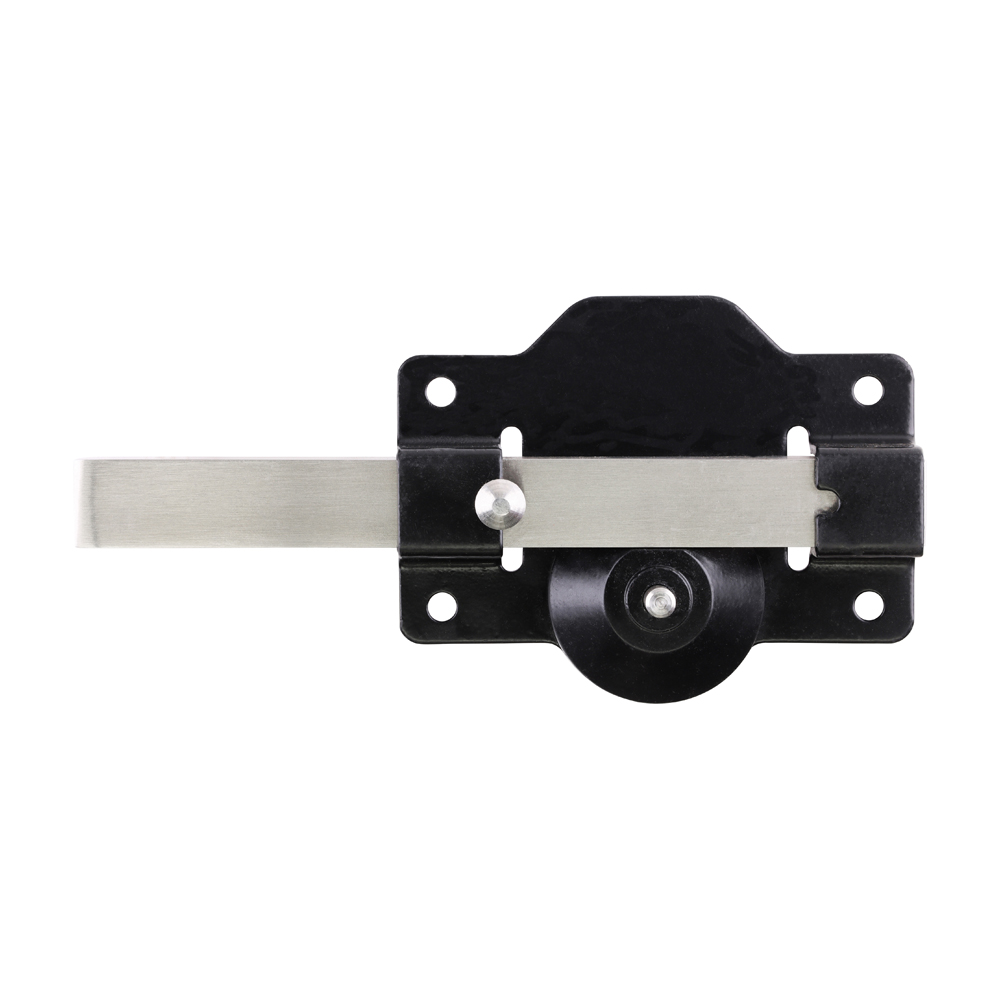

An ideal high security lock for gates where key access from the outside is required. The lock can be opened from the inside without the use of a key providing quick and easy access. The lock features a cylinder suitable for up to 50mm gate thicknesses. Supplied with a brass escutcheon for a clean flush finish around the lock cylinder or alternatively a rim lock escutcheon handle can be used (sold separately). Fixings included.
- Supplied with 3 keys
Documents
Technical Specifications
Product Specification
| Bolt Length mm | 70 |
| Keep Size H x W mm | 125 x 28 |
| Lock Case Size H x D mm | 106 x 70 |
| Lock Type | Single |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Locking Option | Outside Only |
| Max Door Thickness mm | 50 |
| No of Pan Screws | 11 |
| Pan Screw Size mm | 5.5 x 20 and 3.0 x 16 |
| Pack Dimensions L x W x H mm | 184 x 78 x 134 |
| Pack Weight kg | 1.08 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| Offers | Sale |
| Product Code | GLS50 |
| SKU Barcode | 5055893382424 |
| Cylinder Dia mm | 26 |
Product Specifications
| Finish | Epoxy Black |
| Material | Carbon Steel |
| Included Items | 5.5 x 20mm Pan Head Self-Tapping Screws (Qty 8), 3.0 x 16mm Pan Head Chipboard Screws (Qty 3) |
Attribute Group 1
| Brand | TIMCO |
Throw Locks - Single - Black
50mm
- Product Code: GLS50
- Pack Type: Box
- Pack Quantity: 1
- Barcode: 5055893382424
