Product Information
A versatile, torque controlled through fixing for use in a wide range of anchoring applications into concrete. NOTE: If no torque wrench is available, tighten the nut 3 to 4 full turns from finger tight.
- Chamfered head design to prevent damage to thread during installation
- Zinc plated and passivated (3-5 microns)
- Manufactured from cold formed carbon steel (grade 5.8)
- Special expansion clip for rapid installation
Documents
Technical Specifications
Product Specification
| Length mm | 50 |
| Nut Size mm | M8 |
| Nut Socket Size mm | 13 |
| Washer Size mm | M8 x 17 |
| Washer Type | Form A |
| Centre Spacing mm | 110 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Fixture Hole Diameter mm | 9 |
| Max Fixture Thickness mm | 5 |
| Min Drill Hole Depth mm | 45 |
| Pack Dimensions L x W x H mm | 129 x 86 x 15 |
| Pack Weight kg | 0.094 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | 6000 |
| DIN Standard | DIN 125-A, DIN 934 |
| Product Code | 0850TBP |
| SKU Barcode | 5055331828781 |
| Size Thread Dia x L mm | M8 x 50 |
| Thread Dia mm | M8 |
| Drill Hole Dia mm | 8 |
Product Specifications
| Finish | Zinc |
| Head Type | Chamfered |
| Material | Carbon Steel |
| Nut Type | Hex Full |
| Thread Coverage | Fully Threaded |
| Thread Type | Metric |
| Included Items | M8 Hex Full Nuts & Form A Washers |
| Substrates | Concrete |
Attribute Group 1
| Brand | TIMCO |

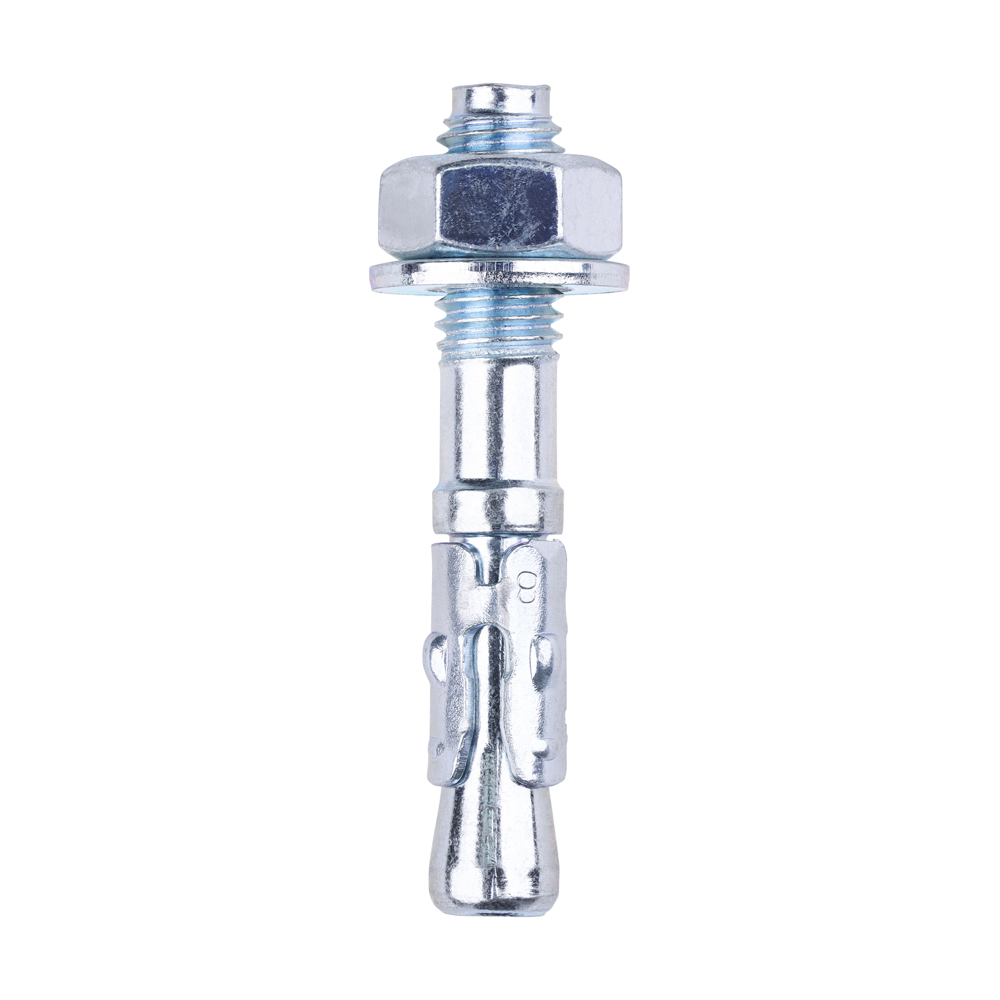

Throughbolts - Zinc
M8 x 50
- Product Code: 0850TBP

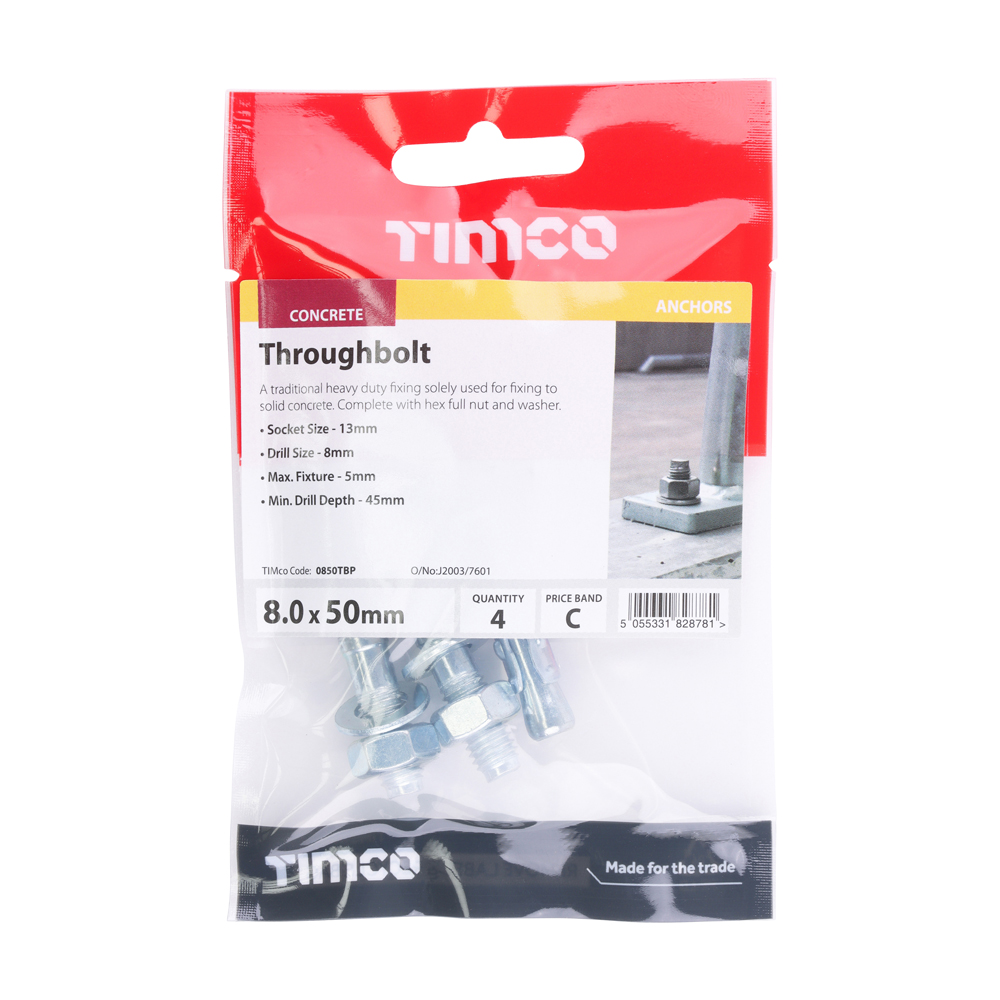

- Pack Type: TIMpac
- Pack Quantity: 4
- Barcode: 5055331828781
