Product Information

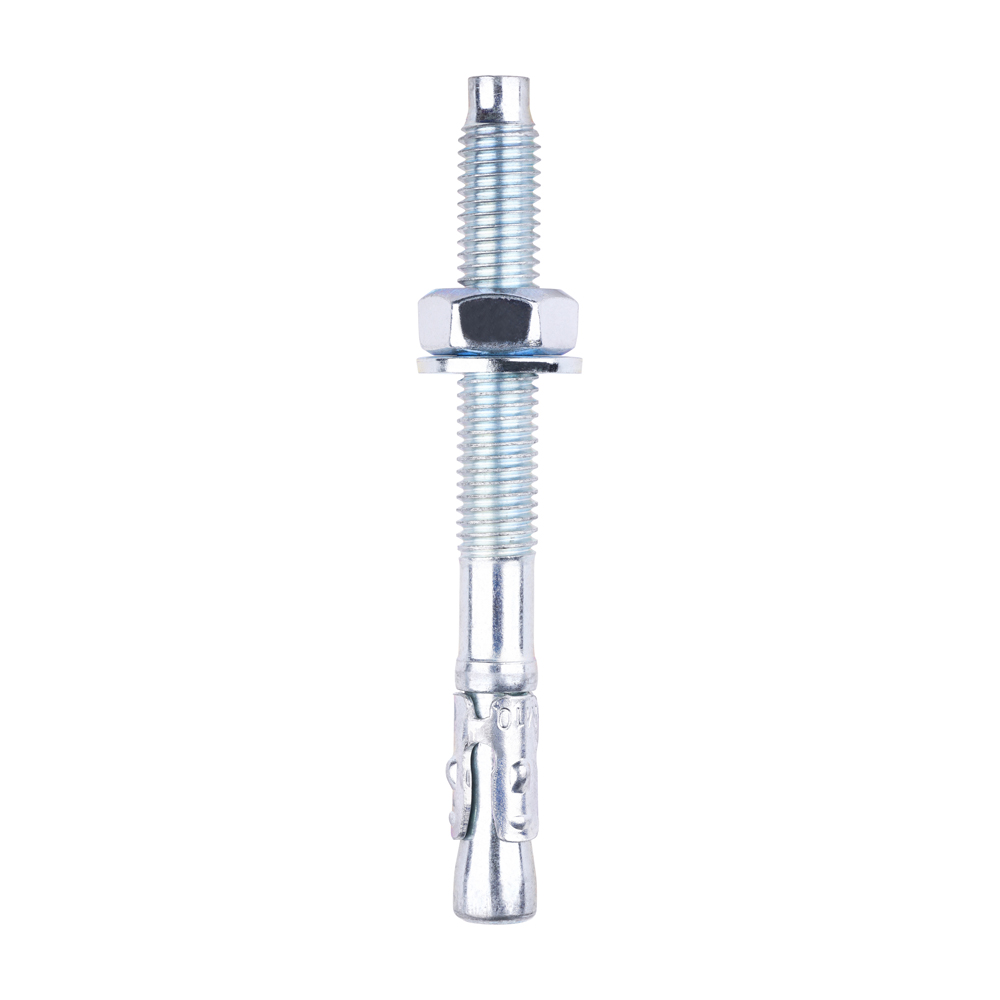

A versatile, torque controlled through fixing for use in a wide range of anchoring applications into concrete. NOTE: If no torque wrench is available, tighten the nut 3 to 4 full turns from finger tight.
- Chamfered head design to prevent damage to thread during installation
- Zinc plated and passivated (3-5 microns)
- Manufactured from cold formed carbon steel (grade 5.8)
- Special expansion clip for rapid installation
Documents
Technical Specifications
Product Specification
| Length mm | 100 |
| Nut Size mm | M10 |
| Nut Socket Size mm | 17 |
| Washer Size mm | M10 x 21 |
| Washer Type | Form A |
| Centre Spacing mm | 140 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Fixture Hole Diameter mm | 12 |
| Max Fixture Thickness mm | 35 |
| Min Drill Hole Depth mm | 50 |
| Pack Dimensions L x W x H mm | 161 x 88 x 18 |
| Pack Weight kg | 0.13 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | 5000 |
| DIN Standard | DIN 125-A, DIN 934 |
| Product Code | 10100TBP |
| SKU Barcode | 5055331828798 |
| Size Thread Dia x L mm | M10 x 100 |
| Thread Dia mm | M10 |
| Drill Hole Dia mm | 10 |
Product Specifications
| Finish | Zinc |
| Head Type | Chamfered |
| Material | Carbon Steel |
| Nut Type | Hex Full |
| Thread Coverage | Fully Threaded |
| Thread Type | Metric |
| Included Items | M10 Hex Full Nuts & Form A Washers |
| Substrates | Concrete |
Attribute Group 1
| Brand | TIMCO |

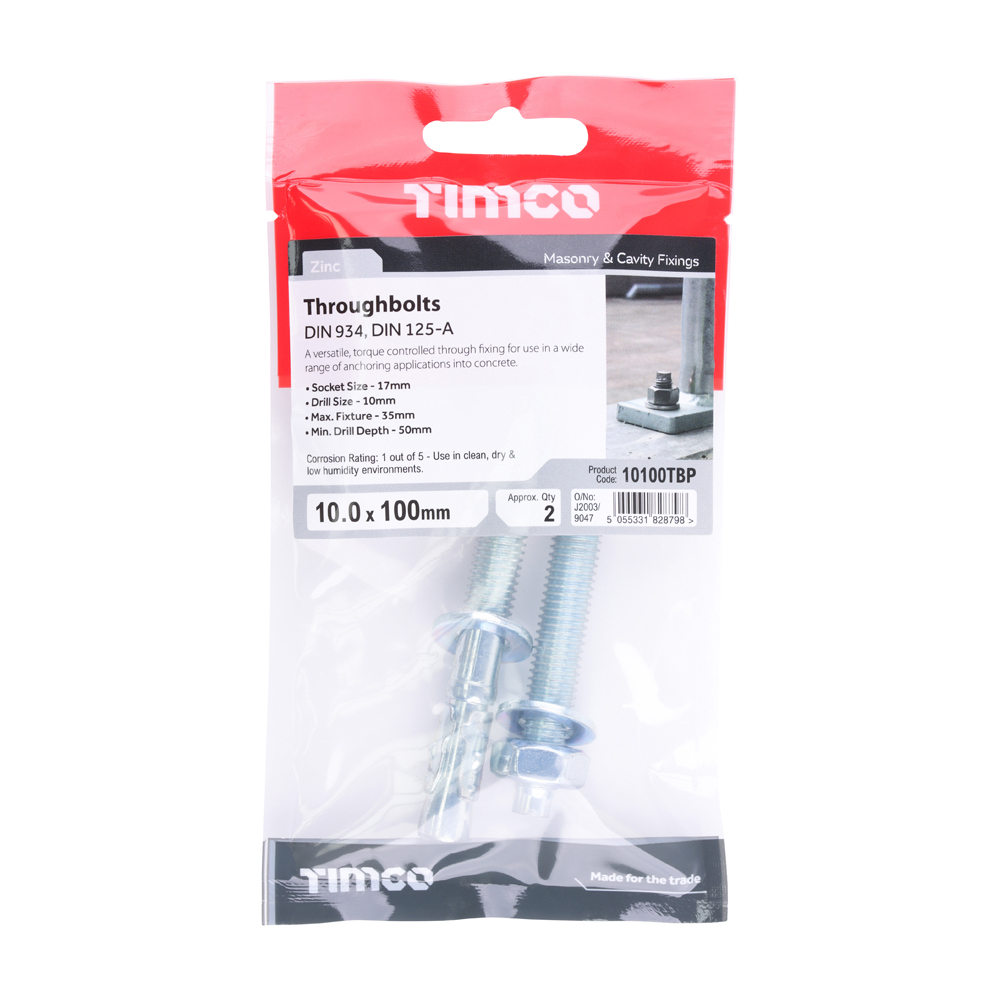

Throughbolts - Zinc
M10 x 100
- Product Code: 10100TBP
- Pack Type: TIMpac
- Pack Quantity: 2
- Barcode: 5055331828798
