Product Information

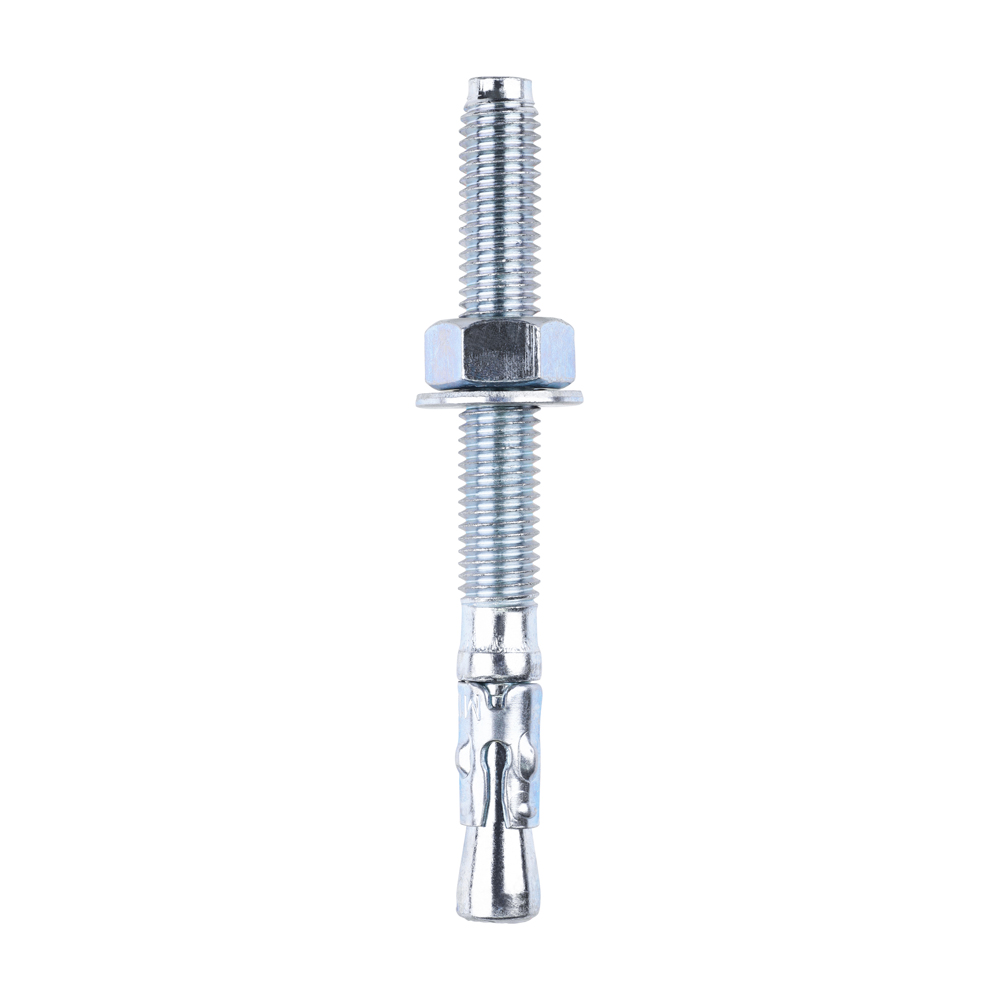

A versatile, torque controlled through fixing for use in a wide range of anchoring applications into concrete. Complete with hex full nut and washer. NOTE: If no torque wrench is available, tighten the nut 3 to 4 full turns from finger tight.
- Chamfered head design to prevent damage to thread during installation
- Zinc plated and passivated (3-5 microns)
- Manufactured from cold formed carbon steel (grade 5.8)
- Special expansion clip for rapid installation
Documents
Technical Specifications
Product Specification
| Length mm | 120 |
| Nut Size mm | M12 |
| Nut Socket Size mm | 19 |
| Washer Size mm | M12 x 24 |
| Finish | Zinc |
| Head Type | Chamfered |
| Material | Carbon Steel |
| Nut Type | Hex Full |
| Thread Coverage | Fully Threaded |
| Thread Type | Metric |
| Washer Type | Form A |
| Centre Spacing mm | 150 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Fixture Hole Diameter mm | 14 |
| Included Items | M12 Hex Full Nuts & Form A Washers |
| Max Fixture Thickness mm | 45 |
| Min Drill Hole Depth mm | 60 |
| Substrates | Concrete |
| Pack Dimensions L x W x H mm | 162 x 94 x 90 |
| Pack Weight kg | 2.64 |
| Carton Qty Packs | 6 |
| Pallet Qty Packs | 270 |
| DIN Standard | DIN 125-A, DIN 934 |
| Product Code | 12120TB |
| SKU Barcode | 5055331820464 |
| Size Thread Dia x L mm | M12 x 120 |
| Thread Dia mm | M12 |
| Drill Hole Dia mm | 12 |
Attribute Group 1
| Brand | TIMCO |

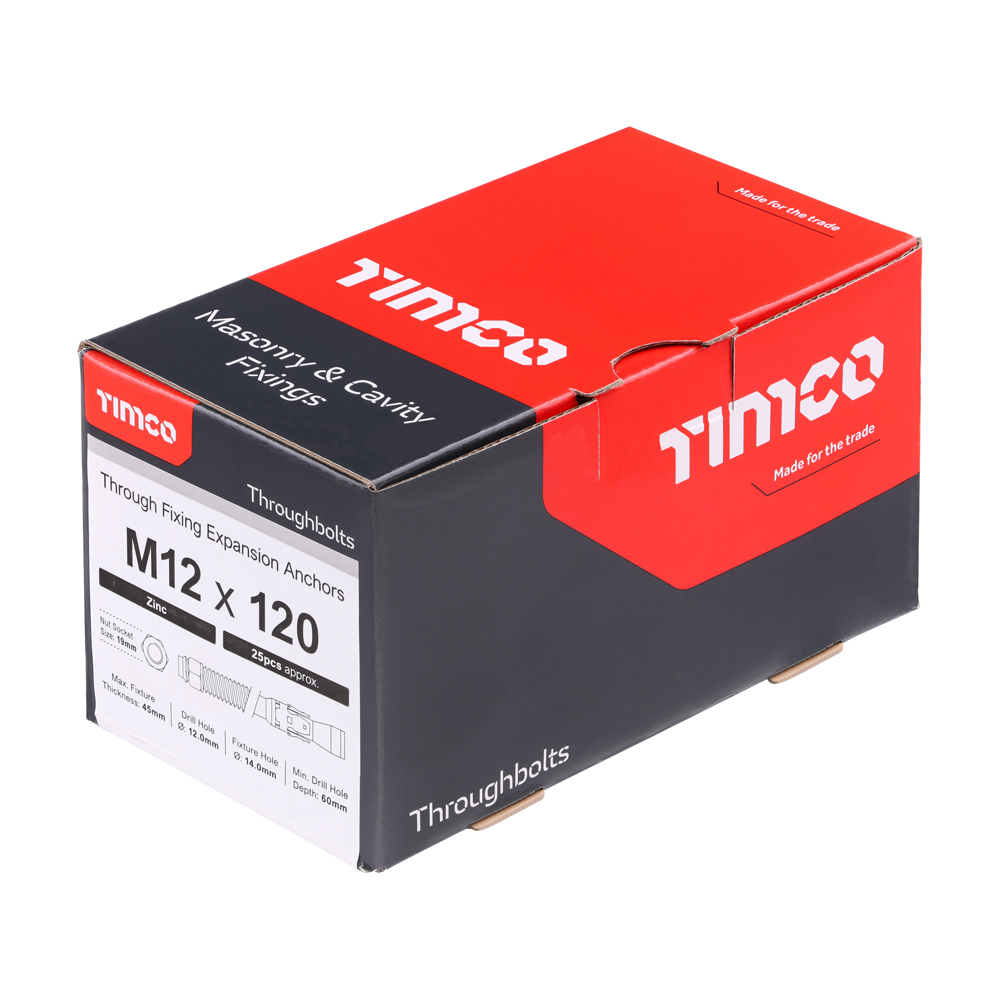

Throughbolts - Zinc
M12 x 120
- Product Code: 12120TB
- Pack Type: Box
- Pack Quantity: 25
- Barcode: 5055331820464
