Product Information
Commonly used with drop in anchors for suspending cable trays from ceilings or can be cut to a required length and used with chemical resin.
- Manufactured from grade 8.8 high tensile carbon steel

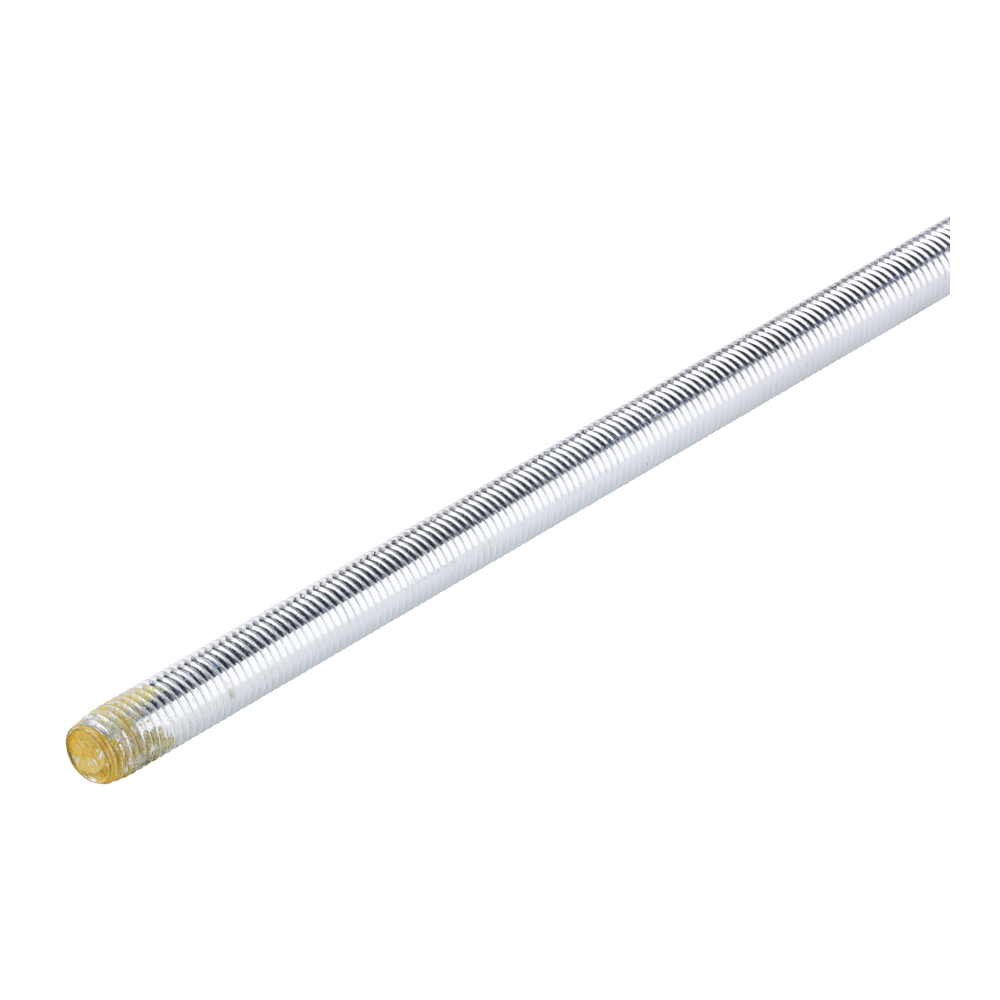

- Bar ends are yellow for ease of identification and to distinguish from other grades of threaded bar
Documents
Technical Specifications
Product Specification
| Length mm | 1000 |
| Material Grade | 8.8 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Pack Dimensions L x W x H mm | 1013 x 73 x 48 |
| Pack Weight kg | 12.99 |
| Pallet Qty Packs | 80 |
| DIN Standard | DIN 975 |
| Product Code | 16TBZHT |
| SKU Barcode | 5055893352984 |
| Size Thread Dia x L mm | M16 x 1000 |
| Thread Dia mm | M16 |
Product Specifications
| Finish | Zinc |
| Material | Carbon Steel |
| Thread Coverage | Fully Threaded |
| Thread Type | Metric |
Attribute Group 1
| Brand | TIMCO |
Threaded Bars - High Tensile - Grade 8.8 - Zinc
M16 x 1000
- Product Code: 16TBZHT

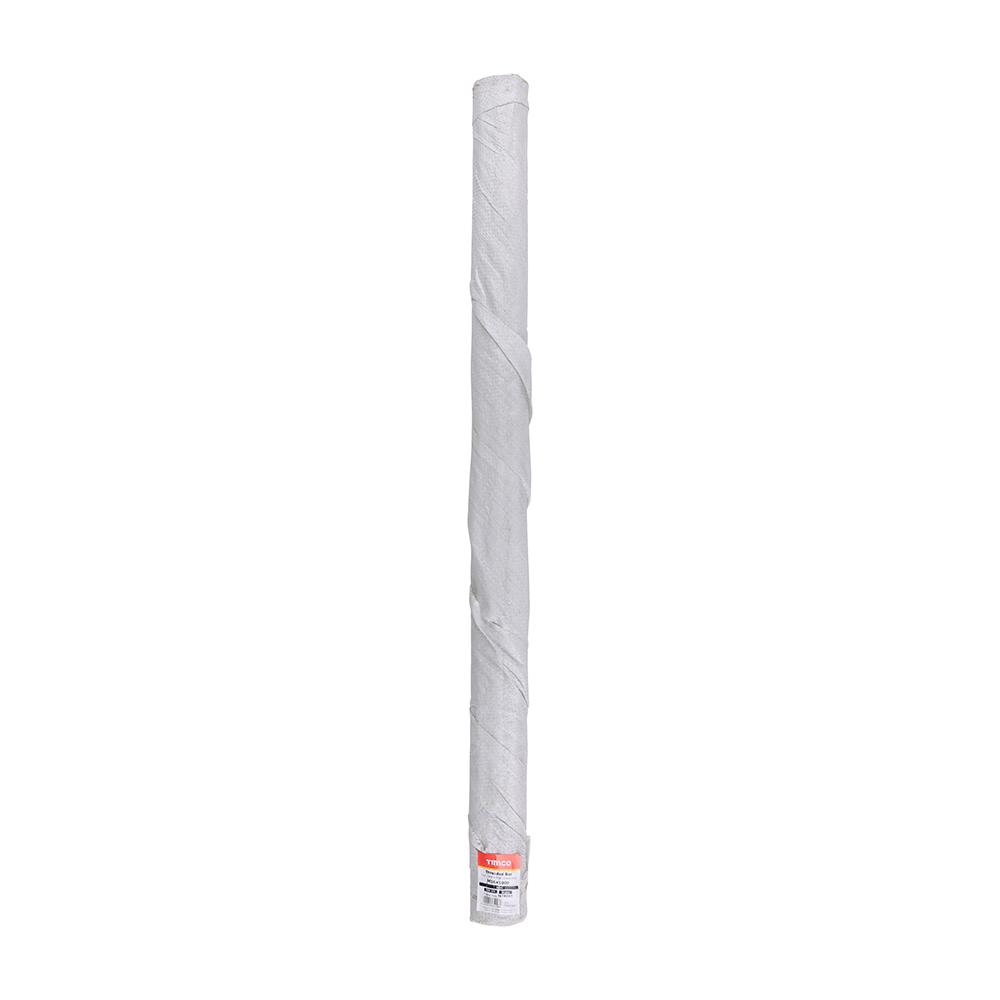

- Pack Type: Bundle
- Pack Quantity: 10
- Barcode: 5055893352984
