Product Information
A high security, heavy duty hasp and staple for sheds, gates and doors in heavy domestic, commercial and agricultural applications. The swivel pattern hasp and staple is commonly fitted to double doors as the hasp drops away and allows the slave leaf to open independently. Bolt fixed for additional security. Fixings included.
Documents
Technical Specifications
Product Specification
| Fixing Plate Size L x W mm | 55 x 103 |
| Hasp Plate Size L x W mm | 92 x 55 |
| Size inch | 8 |
| Size mm | 200 |
| Staple Plate Size L x W mm | 65 x 55 |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| CSK Screw Size mm | 5.0 x 30 |
| Max Padlock Shackle Diameter mm | 15 |
| No of CSK Screws | 8 |
| Pack Dimensions L x W x H mm | 20 x 160 x 290 |
| Pack Weight kg | 0.84 |
| Carton Qty Packs | 5 |
| Pallet Qty Packs | N/A |
| Product Code | SHS8BP |
| SKU Barcode | 5055893367100 |
Product Specifications
| Finish | Epoxy Black |
| Material | Carbon Steel |
| Included Items | 5.0 x 30mm Countersunk Screws (Qty 8) |
Attribute Group 1
| Brand | TIMCO |

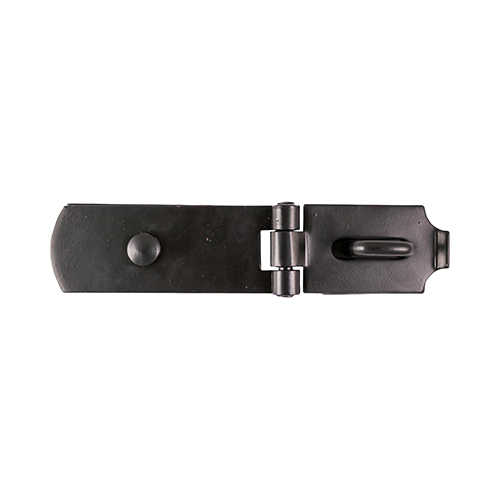

Swivel Pattern Hasp & Staple - Heavy Duty - Black
8"
- Product Code: SHS8BP
- Pack Type: TIMbag
- Pack Quantity: 1
- Barcode: 5055893367100
