Product Information
For use on light domestic gates. External handle allows gate to be opened from the outside. Fixings included.
Documents
Technical Specifications
Product Specification
| Backplate Size L x W mm | 205 x 45 |
| Bar Length mm | 185 |
| Catch Projection mm | 80 |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| CSK Screw Size mm | 4.0 x 30 |
| Max Gate Thickness mm | 50 |
| No of Pan Screws | 12 |
| No of CSK Screws | 4 |
| Pan Screw Size mm | 4.0 x 30 |
| Pack Dimensions L x W x H mm | 378 x 157 x 47 |
| Pack Weight kg | 0.454 |
| Carton Qty Packs | 5 |
| Pallet Qty Packs | N/A |
| Product Code | SLMZP |
| SKU Barcode | 5055893366776 |
| Rec Screw Dia mm | 4.0 |
Product Specifications
| Finish | Zinc |
| Material | Carbon Steel |
| Included Items | 4.0 x 30mm Pan Screws (Qty 12), 4.0 x 30mm Countersunk Screws (Qty 4) |
Attribute Group 1
| Brand | TIMCO |

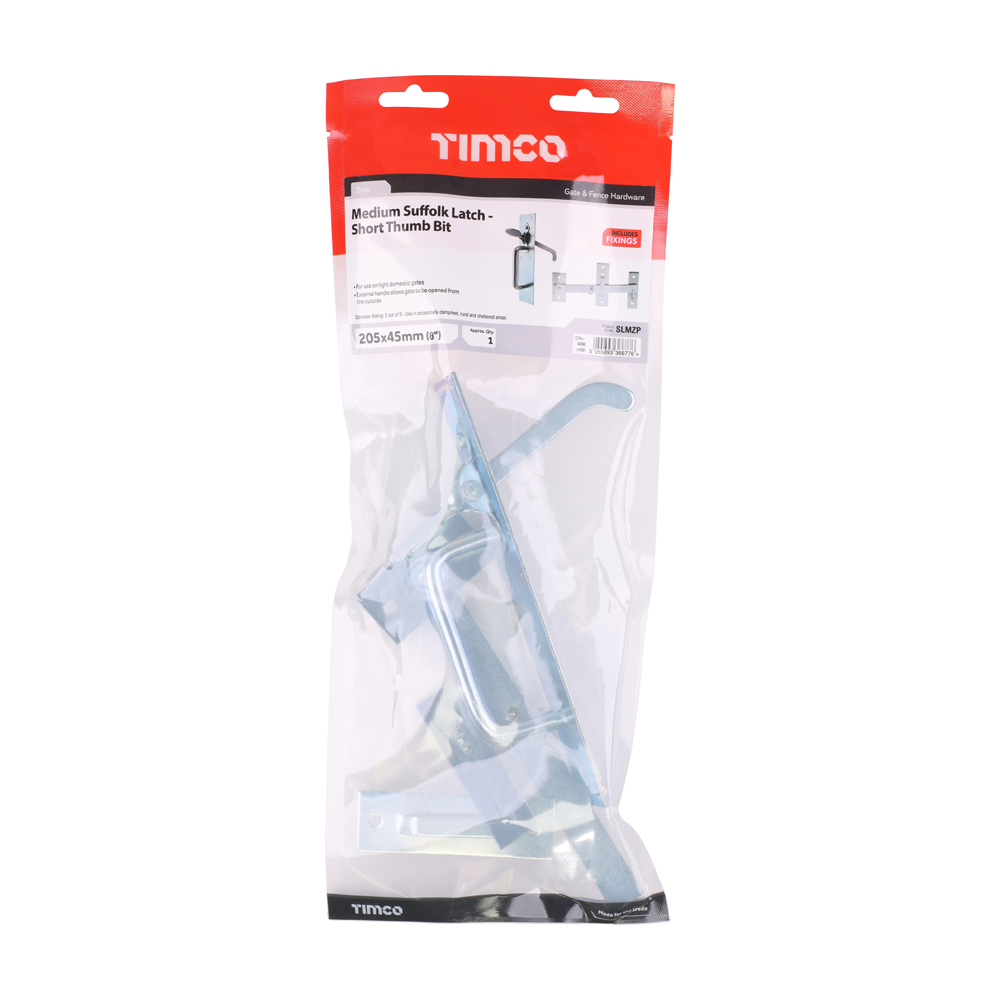

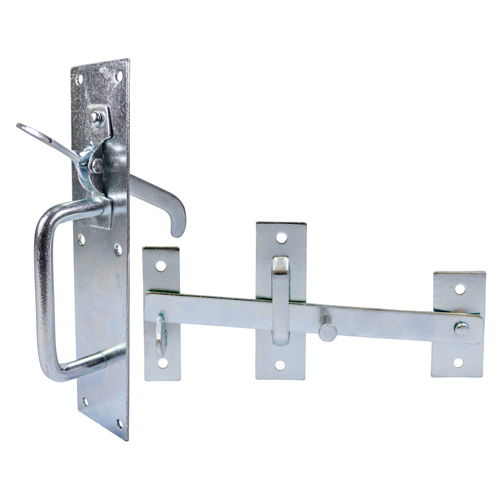

Suffolk Latch - Medium Duty - Zinc
205 x 45mm
- Product Code: SLMZP
- Pack Type: TIMbag
- Pack Quantity: 1
- Barcode: 5055893366776
