Product Information
For use on light domestic gates. External handle allows gate to be opened from the outside. Fixings included.
Documents
Technical Specifications
Product Specification
| Backplate Size L x W mm | 205 x 45 |
| Bar Length mm | 185 |
| Catch Projection mm | 80 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| CSK Screw Size mm | 4.0 x 30 |
| Max Gate Thickness mm | 50 |
| No of Pan Screws | 12 |
| No of CSK Screws | 4 |
| Pan Screw Size mm | 4.0 x 30 |
| Pack Dimensions L x W x H mm | 379 x 155 x 53 |
| Pack Weight kg | 0.456 |
| Carton Qty Packs | 5 |
| Pallet Qty Packs | N/A |
| Product Code | SLMGP |
| SKU Barcode | 5055893366783 |
| Rec Screw Dia mm | 4.0 |
Product Specifications
| Finish | Hot Dipped Galvanised |
| Material | Carbon Steel |
| Included Items | 4.0 x 30mm Pan Screws (Qty 12), 4.0 x 30mm Countersunk Screws (Qty 4) |
Attribute Group 1
| Brand | TIMCO |

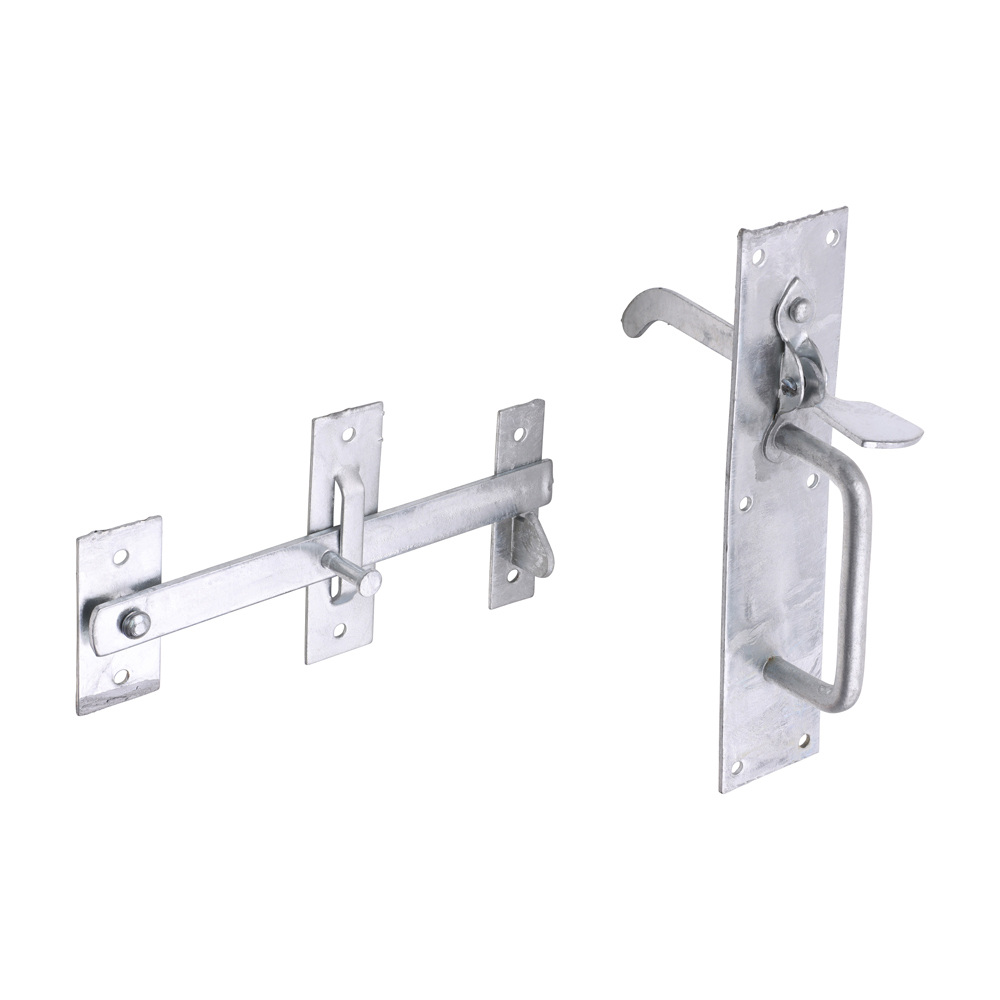

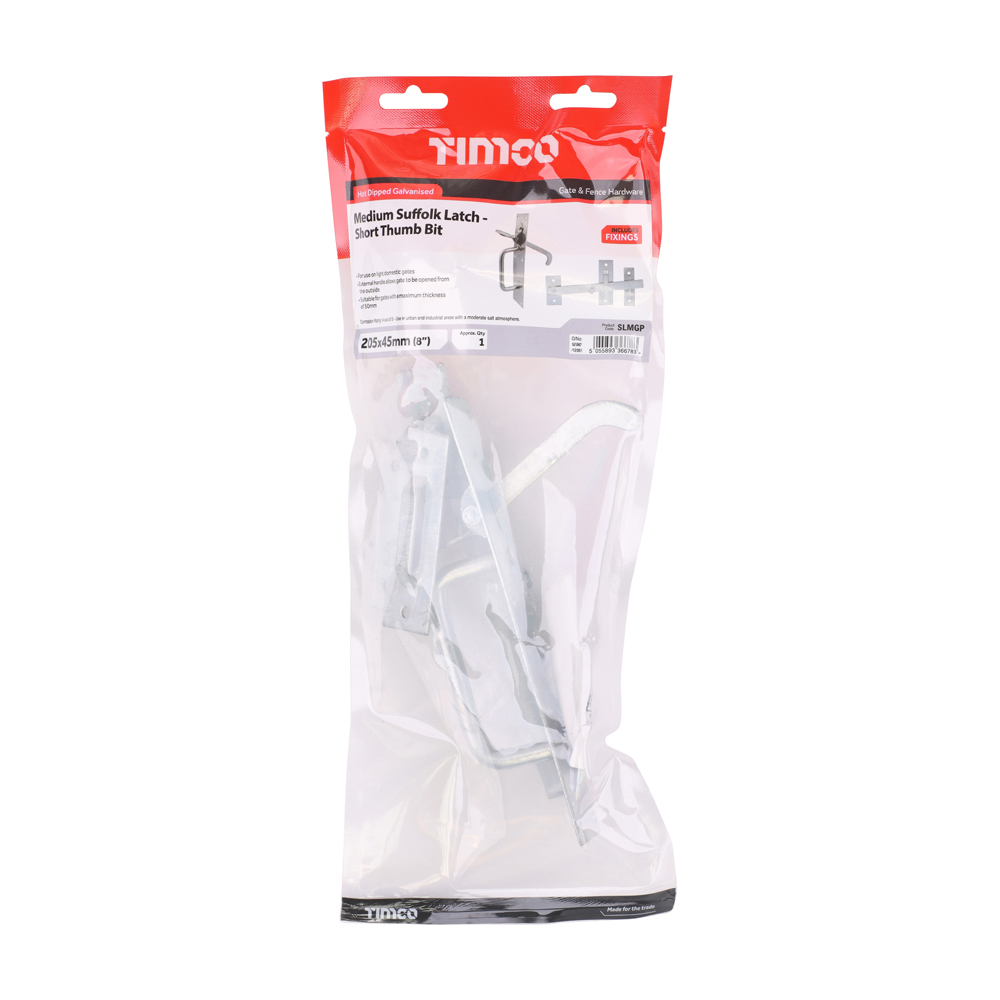

Suffolk Latch - Medium Duty - Hot Dipped Galvanised
205 x 45mm
- Product Code: SLMGP
- Pack Type: TIMbag
- Pack Quantity: 1
- Barcode: 5055893366783
