Product Information
Ideal for use on heavy duty doors.
- A heavy duty version of the plain butt hinge
- Manufactured from thicker gauge steel for added strength
- Fixed pin for use with inward and outward opening doors
Documents
Technical Specifications
Product Specification
| Length inch | 4 |
| Length mm | 100 |
| Open Width mm | 73 |
| Size L x W mm | 100 x 73 |
| Thickness mm | 2.5 |
| Corner Type | Square |
| Knuckle Type | Plain |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Screws Required Per Pair | 16 |
| Pack Dimensions L x W x H mm | 170 x 92 x 10 |
| Pack Weight kg | 0.42 |
| Carton Qty Packs | 30 |
| Pallet Qty Packs | 1,440 Pairs |
| Pattern | 451 |
| Product Code | 434569 |
| SKU Barcode | 5056110808772 |
| Size imp | 4 |
| Knuckle Dia mm | 12 |
| Hole Dia mm | 7.3 |
| Rec Screw Dia mm | 5.0 |
Product Specifications
| Finish | Zinc |
| Material | Steel |
Attribute Group 1
| Brand | TIMCO |

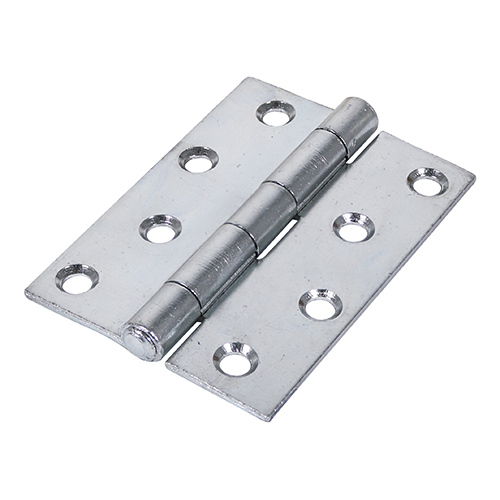

Strong Steel Plain Butt Hinge (451) - Zinc
100 x 73
- Product Code: 434569
- Pack Type: Plain Bag
- Pack Quantity: 1
- Barcode: 5056110808772
