Product Information

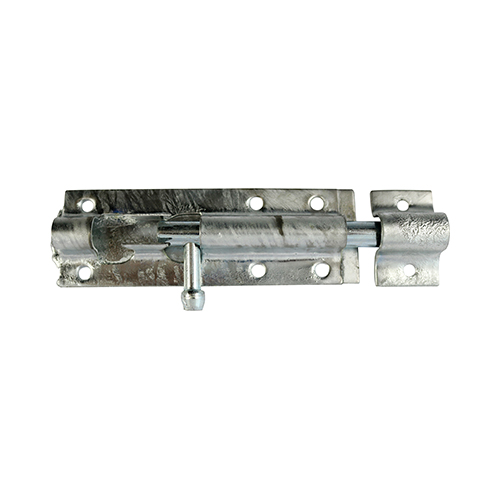

Straight tower bolts are used for securing flush fitting gates and shed doors in a closed position. Fixings included.
Documents
Technical Specifications
Product Specification
| Bolt Length inch | 3 |
| Bolt Length mm | 75 |
| Bolt Throw mm | 20 |
| Plate Size L x W mm | 95 x 38 |
| Staple Keep Size L x W mm | 39 x 25 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| No of Pan Screws | 8 |
| Pan Screw Size mm | 4.0 x 30 |
| Pack Dimensions L x W x H mm | 211 x 94 x 28 |
| Pack Weight kg | 0.128 |
| Carton Qty Packs | 15 |
| Pallet Qty Packs | N/A |
| Product Code | TBS3GP |
| SKU Barcode | 5055893366363 |
| Bolt Dia mm | 10 |
| Rec Screw Dia mm | 4.0 |
Product Specifications
| Finish | Hot Dipped Galvanised |
| Material | Carbon Steel |
| Included Items | 4.0 x 30mm Pan Screws (Qty 8) |
Attribute Group 1
| Brand | TIMCO |

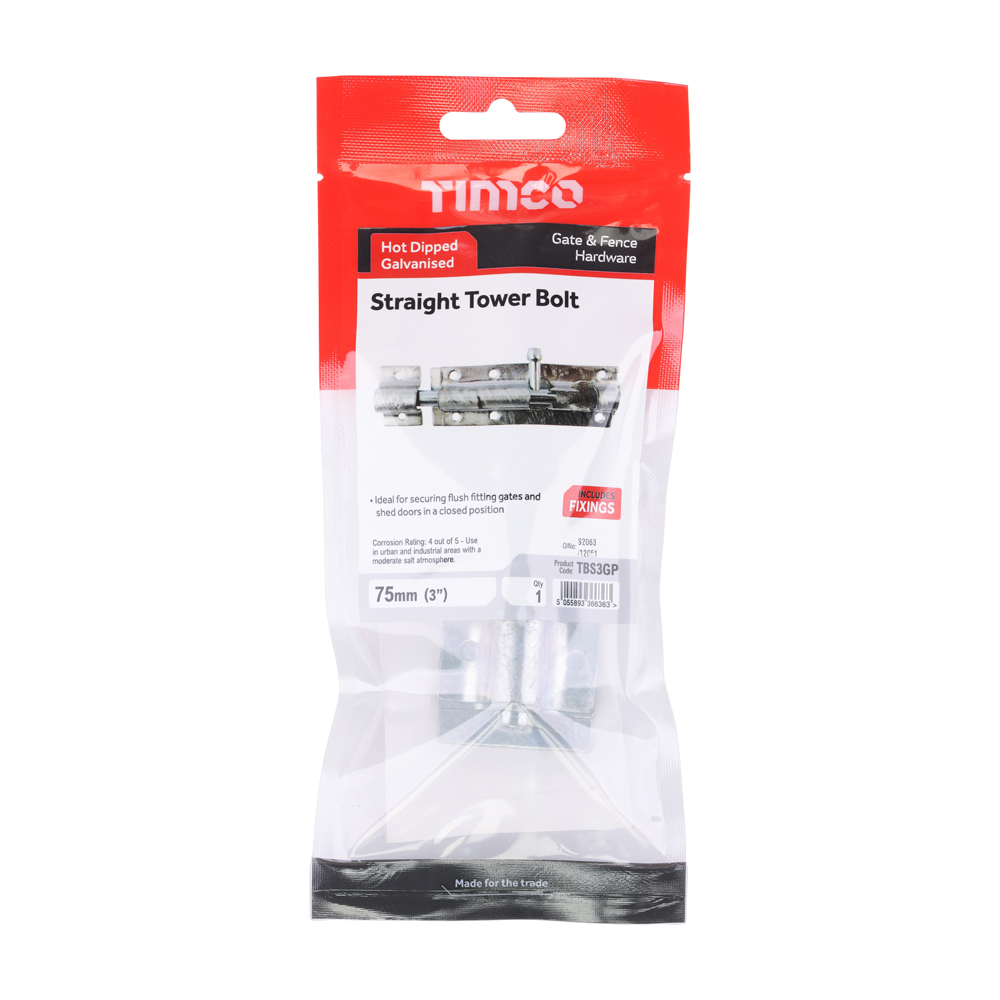

Straight Tower Bolt - Hot Dipped Galvanised
3"
- Product Code: TBS3GP
- Pack Type: TIMpac
- Pack Quantity: 1
- Barcode: 5055893366363
