Product Information
Straight tower bolts are used for securing flush fitting gates and shed doors in a closed position. Fixings included.
Documents
Technical Specifications
Product Specification
| Bolt Length inch | 8 |
| Bolt Length mm | 200 |
| Bolt Throw mm | 35 |
| Plate Size L x W mm | 225 x 45 |
| Staple Keep Size L x W mm | 46 x 33 |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| No of Pan Screws | 12 |
| Pan Screw Size mm | 4.0 x 30 |
| Pack Dimensions L x W x H mm | 334 x 92 x 30 |
| Pack Weight kg | 0.374 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| Product Code | TBS8BP |
| SKU Barcode | 5055893366295 |
| Bolt Dia mm | 11 |
| Rec Screw Dia mm | 4.0 |
Product Specifications
| Finish | Epoxy Black |
| Material | Carbon Steel |
| Included Items | 4.0 x 30mm Pan Screws (Qty 12) |
Attribute Group 1
| Brand | TIMCO |

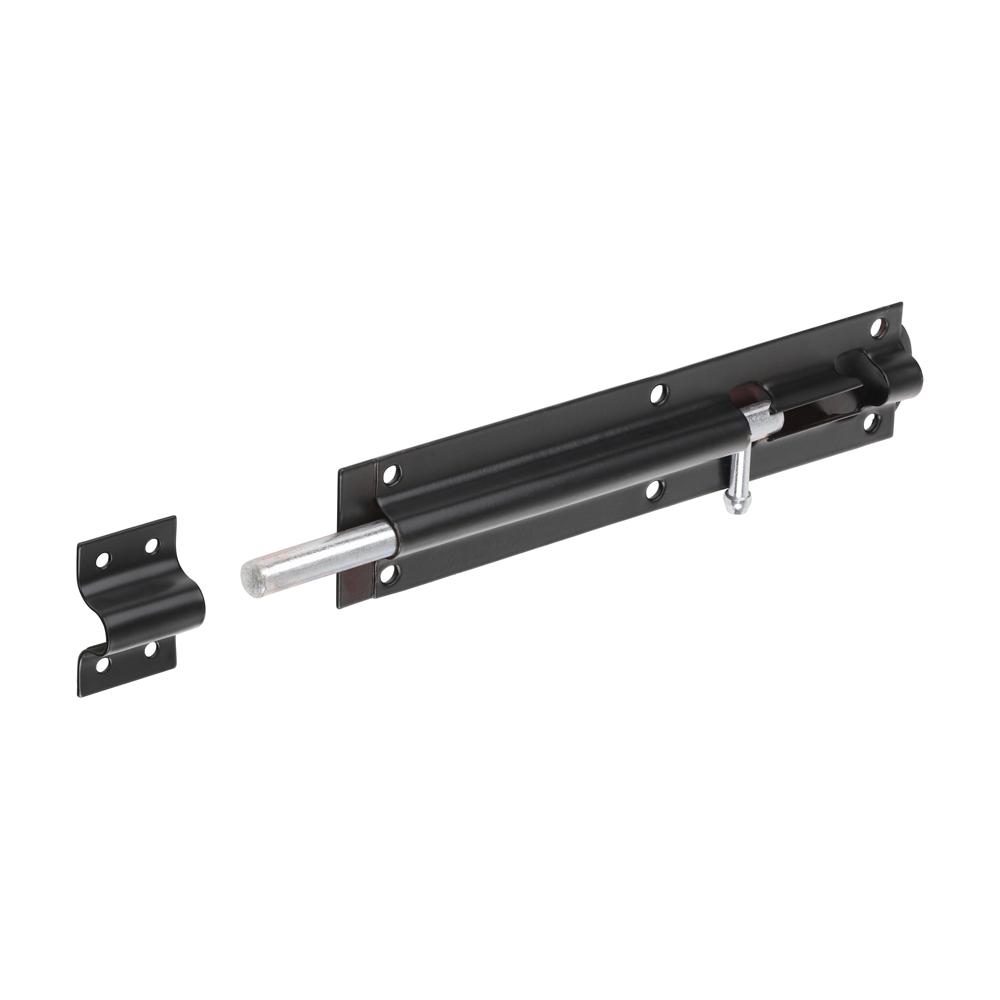

Straight Tower Bolt - Black
8"
- Product Code: TBS8BP

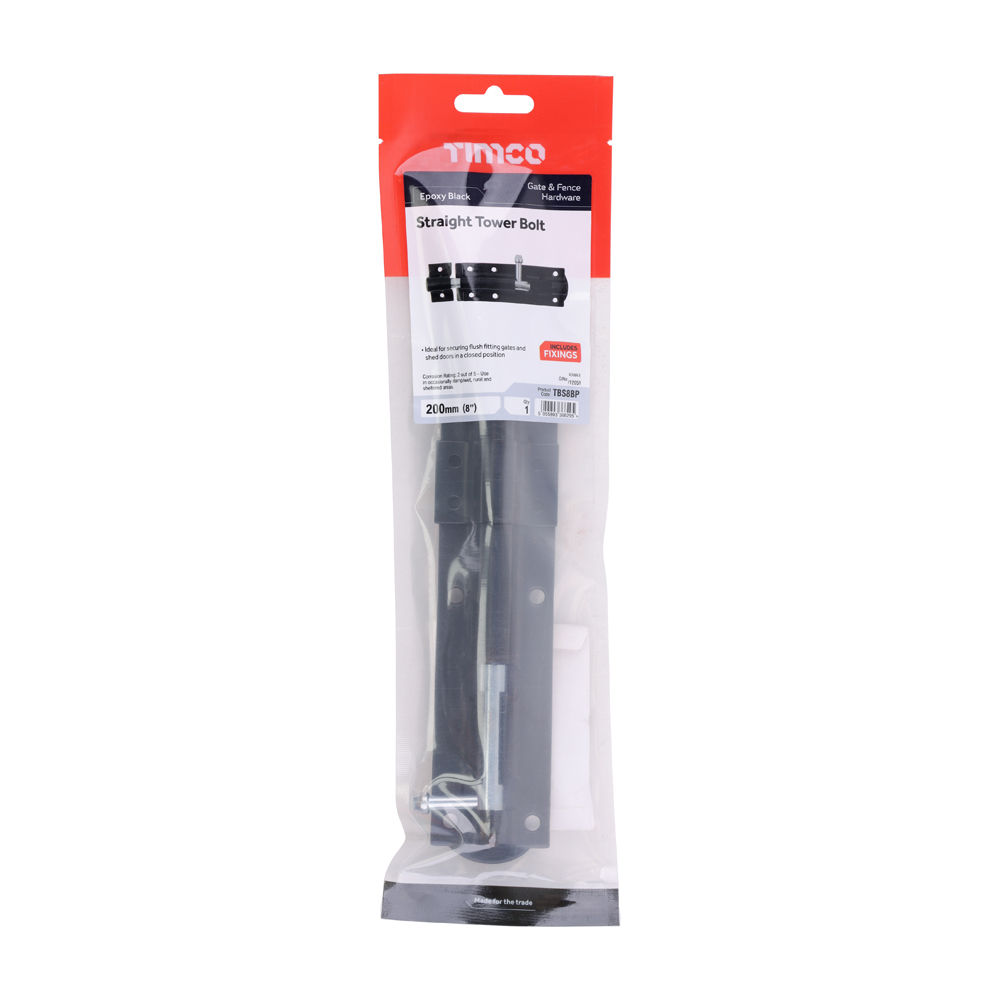

- Pack Type: TIMpac
- Pack Quantity: 1
- Barcode: 5055893366295
