Product Information
Designed to fit a stormproof rebated casement frame.
- Allow the door to pivot away from the frame
- Cranked knuckle to assist with weatherproofing
- Manufactured from steel and Available in a variety of finishes
Documents
Technical Specifications
Product Specification
| Length inch | 2.5 |
| Length mm | 63 |
| Open Width mm | 58 |
| Screw Size mm | 4.0 x 30 |
| Size L x W mm | 63 x 58 |
| Thickness mm | 1.8 |
| Corner Type | Square |
| Knuckle Type | Plain |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Screws Required Per Pair | 12 |
| Pack Dimensions L x W x H mm | 194 x 86 x 29 |
| Pack Weight kg | 0.2 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| Pattern | 1951 |
| Product Code | 434105P |
| SKU Barcode | 5056110884967 |
| Size imp | 2.5 |
| Screw Size imp | 8 x 1 1/4 |
| Knuckle Dia mm | 10 |
| Hole Dia mm | 6 |
| Rec Screw Dia mm | 4.0 |
Product Specifications
| Finish | Zinc |
| Material | Steel |
Attribute Group 1
| Brand | TIMCO |

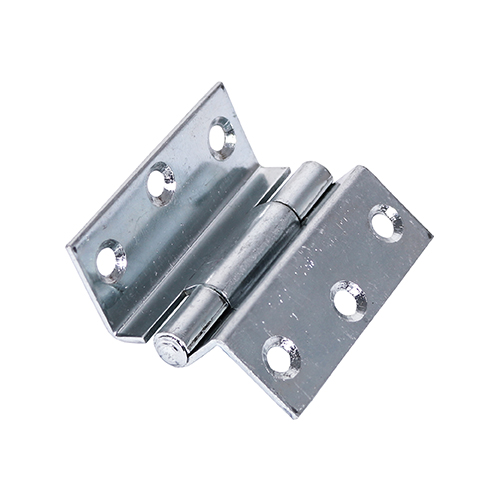

Stormproof Hinge (1951) - Zinc
63 x 58
- Product Code: 434105P
- Pack Type: TIMpac
- Pack Quantity: 1
- Barcode: 5056110884967
