Product Information
A highly effective universal anchor for fixing heavy loads to plasterboard, cavities and solid materials.
- Zinc & clear machine screws
- TX25 Drive recess allows simple installation with a screw driver
- Strengthened nylon plug with captivated steel threaded nut
- Perfect for double board
Documents
Technical Specifications
Product Specification
| Plug Length mm | 59 |
| Plug Size mm | 10 x 59 |
| Screw Size mm | M5 x 90 |
| Board Thickness mm | 18 - 30 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Max Fixture Thickness mm | 38 |
| Temperature Resistant °C | -40ºC to +80ºC |
| Pack Dimensions L x W x H mm | 15 x 90 x 163 |
| Pack Weight kg | 0.074 |
| Carton Qty Packs | 5 |
| Pallet Qty Packs | N/A |
| Product Code | 725973 |
| SKU Barcode | 5055893399941 |
| Thread Dia mm | M5 |
| Plug Dia mm | 10 |
| Drill Hole Dia mm | 10 |
Product Specifications
| Colour | Black |
| Head Type | Pan |
| Material | Nylon |
| Point Type | B Point |
| Recess Type | TX Drive |
| Thread Coverage | Fully Threaded |
| Thread Type | Metric |
| Driver Bit Size | TX25 |
| Substrates | Concrete, Block, Double Board |
Attribute Group 1
| Brand | TIMCO |

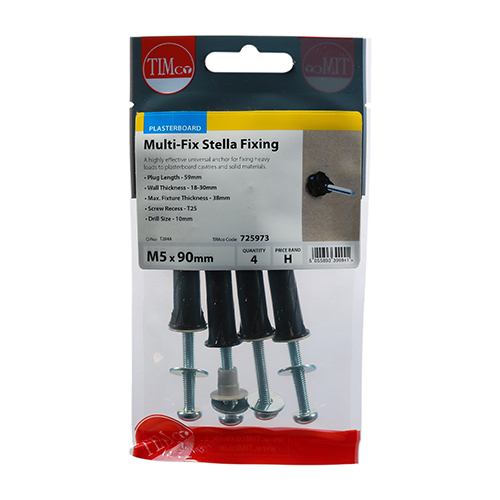

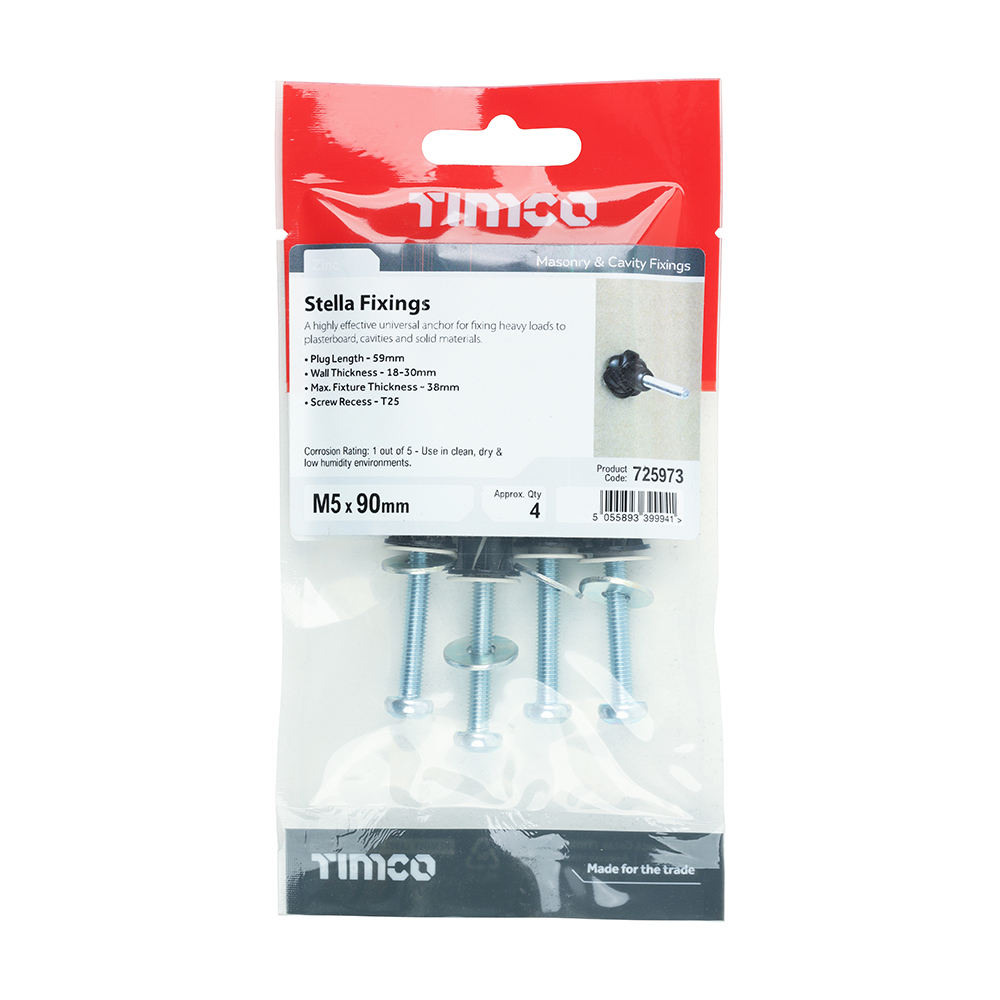

Stella Fix Universal Anchors - TX - Pan - Black
M5 x 90
- Product Code: 725973
- Pack Type: TIMpac
- Pack Quantity: 4
- Barcode: 5055893399941
