Product Information

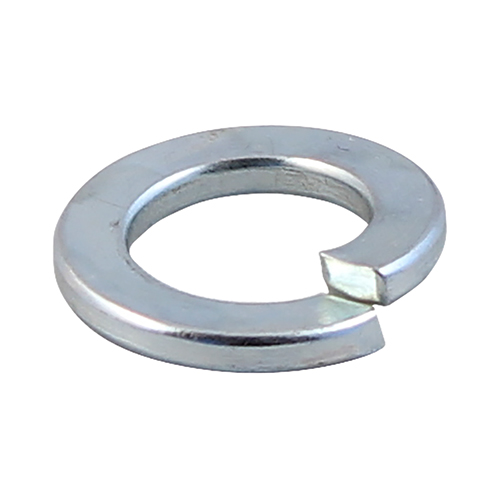

A square section spring washer designed to prevent the nut from loosening.
- Plated in Trivalent Chromium (Cr3) Zinc
Documents
Technical Specifications
Product Specification
| Length mm | 16 |
| Size mm | M10 |
| Thickness mm | 2.5 |
| Width mm | 5 |
| Washer Type | Spring |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Pack Dimensions L x W x H mm | 15 x 90 x 133 |
| Pack Weight kg | 0.022 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| Product Code | WSP10ZP |
| SKU Barcode | 5055893384121 |
| Outer Dia mm | 16 |
| Thread Dia mm | M10 |
| Hole Dia mm | M10 |
Product Specifications
| Finish | Zinc & Clear Cr3 |
| Material | Carbon Steel |
Attribute Group 1
| Brand | TIMCO |

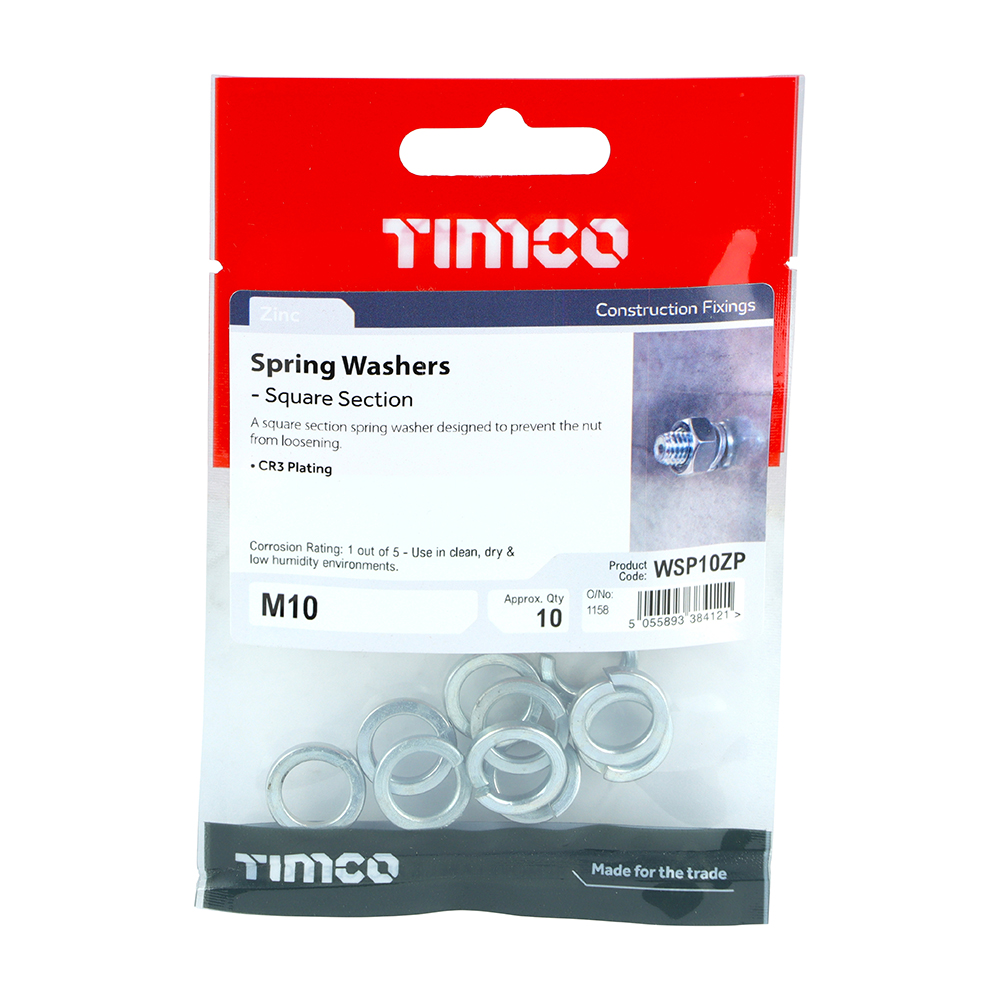

Spring Washers - Zinc
M10
- Product Code: WSP10ZP
- Pack Type: TIMpac
- Pack Quantity: 10
- Barcode: 5055893384121
