Product Information

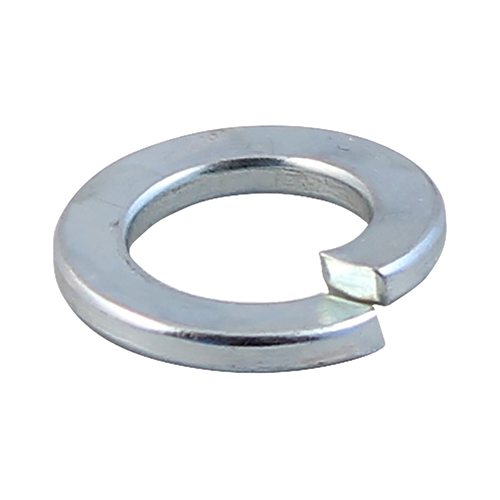

A square section spring washer designed to prevent the nut from loosening.
- Plated in Trivalent Chromium (Cr3) Zinc
Documents
Technical Specifications
Product Specification
| Length mm | 12.7 |
| Size mm | M8 |
| Thickness mm | 2 |
| Width mm | 4 |
| Washer Type | Spring |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Pack Dimensions L x W x H mm | 72 x 60 x 36 |
| Pack Weight kg | 0.28 |
| Carton Qty Packs | 75 |
| Pallet Qty Packs | 2700 |
| DIN Standard | DIN 7980 |
| Product Code | WSP8Z |
| SKU Barcode | 5055331895912 |
| Outer Dia mm | 12.5 |
| Thread Dia mm | M8 |
| Hole Dia mm | M8 |
Product Specifications
| Finish | Zinc & Clear Cr3 |
| Material | Carbon Steel |
Attribute Group 1
| Brand | TIMCO |

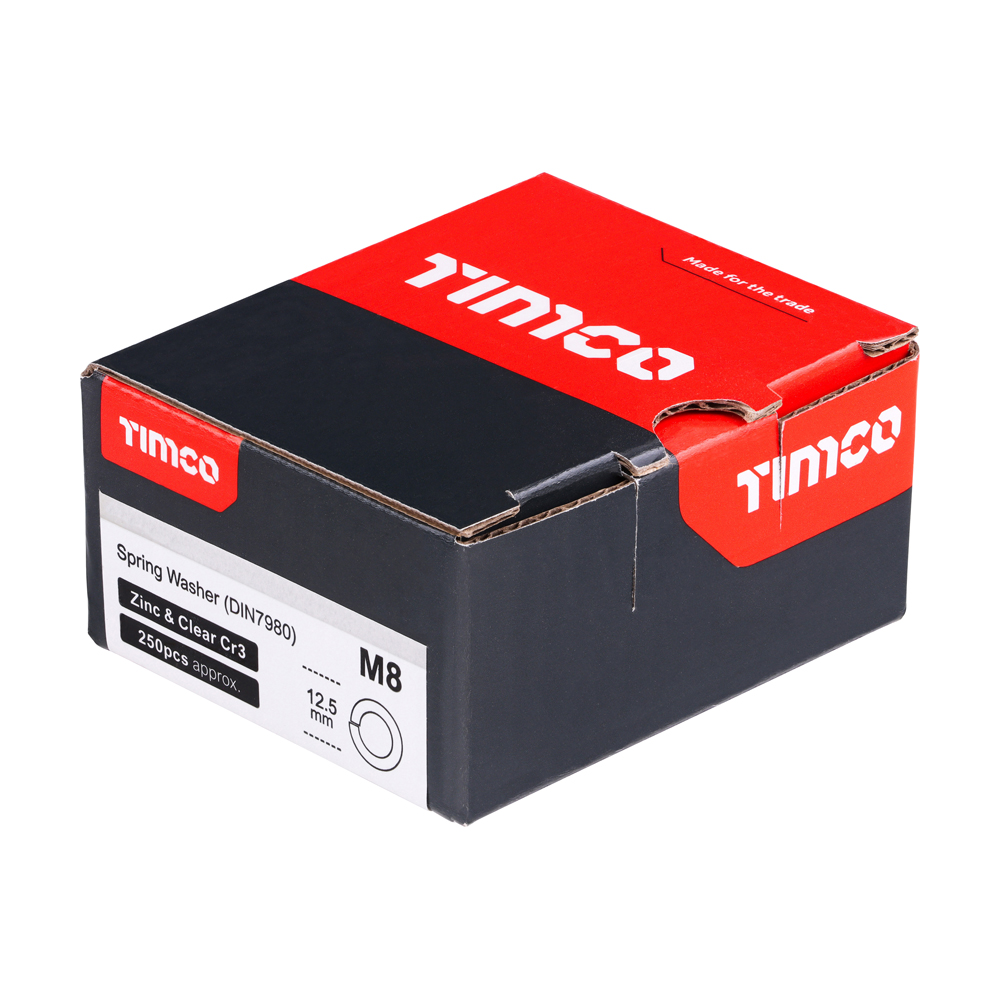

Spring Washers - Zinc
M8
- Product Code: WSP8Z
- Pack Type: Box
- Pack Quantity: 250
- Barcode: 5055331895912
