Product Information

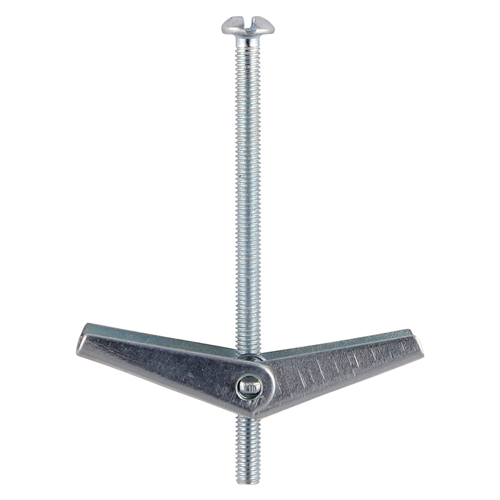

A cavity fixing that is ideal for overhead installations. The wings spread the load over a wider area making them more suited for heavier loads.
Documents
Technical Specifications
Product Specification
| Screw Length mm | 75 |
| Screw Size mm | M5 x 75 |
| Thread Length mm | 75 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Min Cavity Depth mm | 30 |
| Wall and Fixture Thickness mm | 45 |
| Pack Dimensions L x W x H mm | 15 x 90 x 163 |
| Pack Weight kg | 0.067 |
| Carton Qty Packs | 5 |
| Pallet Qty Packs | N/A |
| Product Code | TOG575P |
| SKU Barcode | 5056110836133 |
| Thread Dia mm | M5 |
| Drill Hole Dia mm | 14 |
Product Specifications
| Finish | Zinc |
| Head Type | Pan |
| Material | Carbon Steel |
| Point Type | B Point |
| Recess Type | Combi |
| Thread Type | Metric |
| Substrates | Plasterboard, Wood Panel, Block |
Attribute Group 1
| Brand | TIMCO |

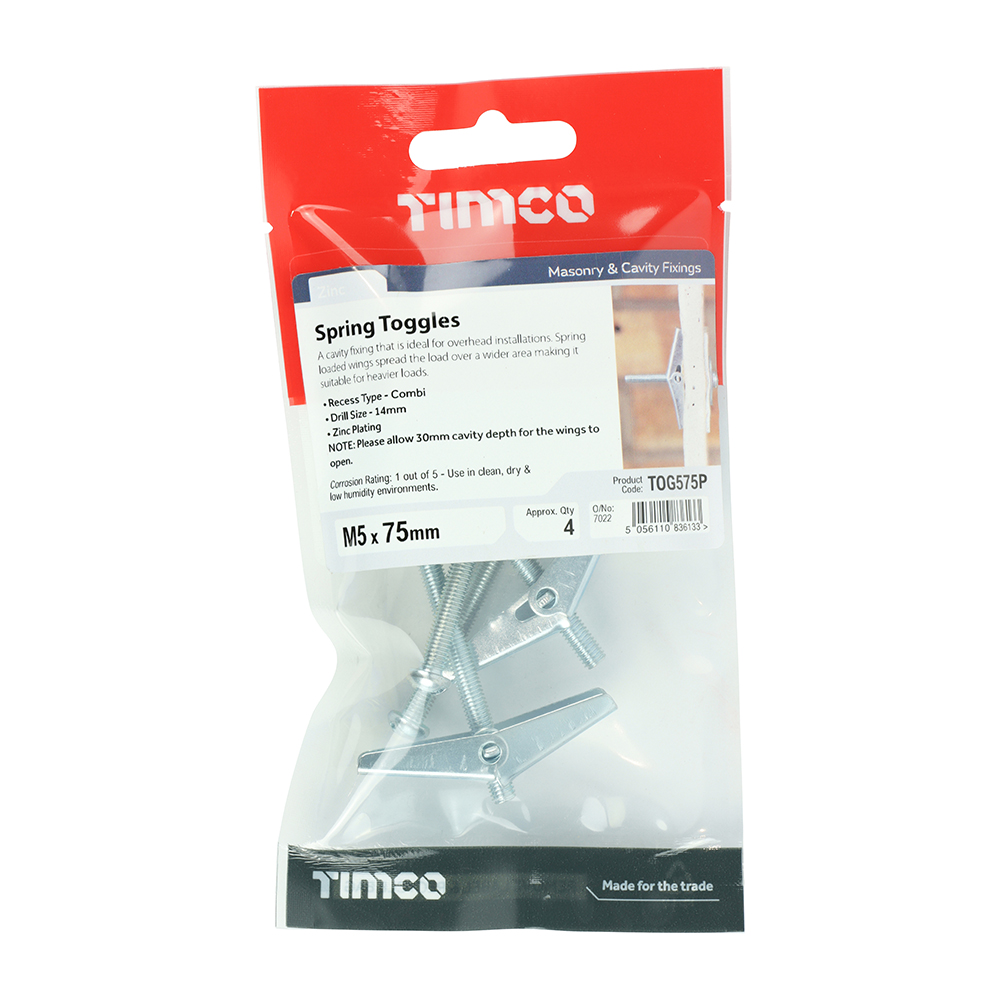

Spring Toggles - Zinc
M5 x 75
- Product Code: TOG575P
- Pack Type: TIMpac
- Pack Quantity: 4
- Barcode: 5056110836133
