Product Information
A light duty spring loaded gate wheel that is ideal for domestic and light commercial applications. This wheel provides support at the leading edge of gates and doors and self adjusts to overcome sloping or uneven groundwork.
Documents
Technical Specifications
Product Specification
| Backplate Size L x W mm | 100 x 25 |
| Length inch | 10 2/3 |
| Length mm | 270 |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Max Gate Weight kg | 50 |
| Max Spring Compression mm | 40 |
| No of Set Screws | 2 |
| Set Screw Size mm | M8 x 100 |
| Pack Dimensions L x W x H mm | 333 x 130 x 54 |
| Pack Weight kg | 1.22 |
| Carton Qty Packs | 5 |
| Pallet Qty Packs | 200 |
| Product Code | GW10ZB |
| SKU Barcode | 5055893378816 |
| Wheel Dia mm | 100 |
Product Specifications
| Finish | Zinc |
| Material | Carbon Steel |
Attribute Group 1
| Brand | TIMCO |

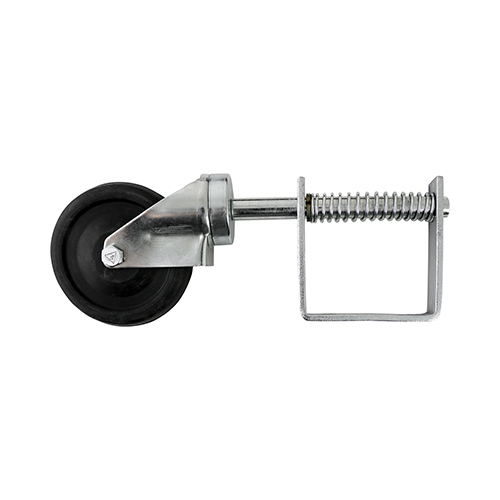

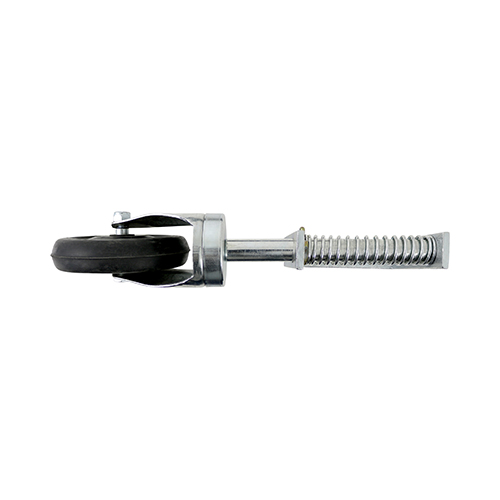

Spring Loaded Field Gate Wheel - Light Duty - Zinc
270mm
- Product Code: GW10ZB
- Pack Type: Plain Bag
- Pack Quantity: 1
- Barcode: 5055893378816
