Product Information
Ideal for securing flush mounted stable doors and gates in a close position. They are spring loaded to prevent animals working the bolt loose and escaping. Our animal bolts come supplied with a staple keep. Fixings included.
Documents
Technical Specifications
Product Specification
| Bolt Length inch | 9 |
| Bolt Length mm | 225 |
| Bolt Throw mm | 65 |
| Plate Size L x W mm | 118 x 40 |
| Staple Plate Size L x W mm | 50 x 50 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| CSK Screw Size mm | 5.0 x 30 |
| No of CSK Screws | 8 |
| Pack Dimensions L x W x H mm | 20 x 160 x 290 |
| Pack Weight kg | 0.6 |
| Carton Qty Packs | 5 |
| Pallet Qty Packs | N/A |
| Product Code | 287663 |
| SKU Barcode | 5055893395103 |
| Bolt Dia mm | 12 |
| Rec Screw Dia mm | 5.0 |
Product Specifications
| Finish | Hot Dipped Galvanised |
| Material | Carbon Steel |
| Included Items | 5.0 x 30mm Countersunk Screws (Qty 8) |
Attribute Group 1
| Brand | TIMCO |

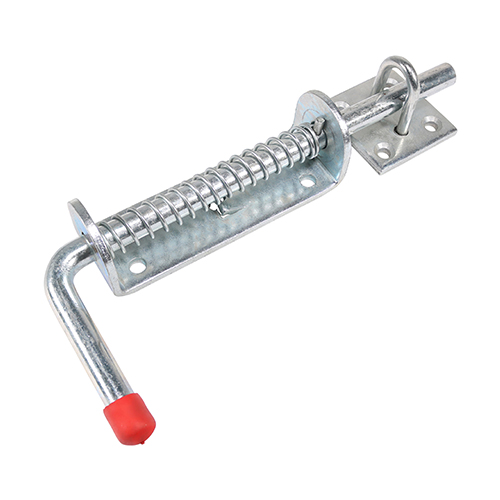

Spring Loaded Animal Bolt - Hot Dipped Galvanised
9"
- Product Code: 287663
- Pack Type: TIMbag
- Pack Quantity: 1
- Barcode: 5055893395103
