Product Information

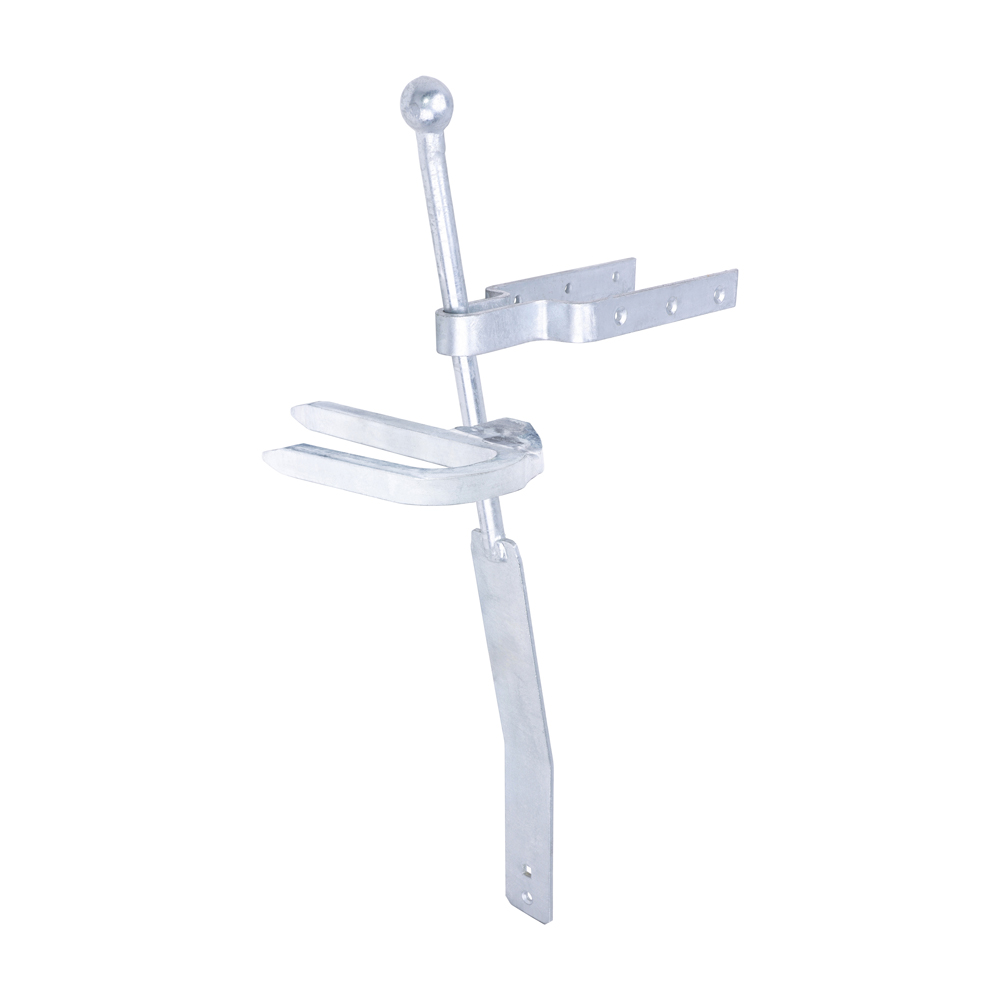

A heavy duty catch for fieldgates with a high frequency of use. The gate locates behind the peg of the double leg catch automatically when closed. The catch requires an in front of post gate mounting. Fixings included.
Documents
Technical Specifications
Product Specification
| Carriage Bolt Size mm | M8 x 100 |
| Handle Length mm | 310 |
| Nut Size mm | M8 |
| Spring Keep Size L x W x H mm | 250 x 75 x 25 |
| Staple Catch Size L x W mm | 180 x 80 |
| Total Length mm | 610 |
| Washer Size mm | M8 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| CSK Screw Size mm | 6.0 x 40 |
| No of Nuts | 1 |
| No of CSK Screws | 6 |
| No of Carriage Bolts | 1 |
| No of Washers | 1 |
| To Suit Gate Thickness mm | 75 |
| Pack Dimensions L x W x H mm | 607 x 144 x 59 |
| Pack Weight kg | 1.968 |
| Carton Qty Packs | 5 |
| Pallet Qty Packs | 240 |
| Product Code | SFF610G |
| SKU Barcode | 5055893360071 |
| To Fit Carriage Bolt Dia mm | M8 |
| No of Bolt Holes | 1 |
Product Specifications
| Finish | Hot Dipped Galvanised |
| Material | Carbon Steel |
| Nut Type | Hex Full |

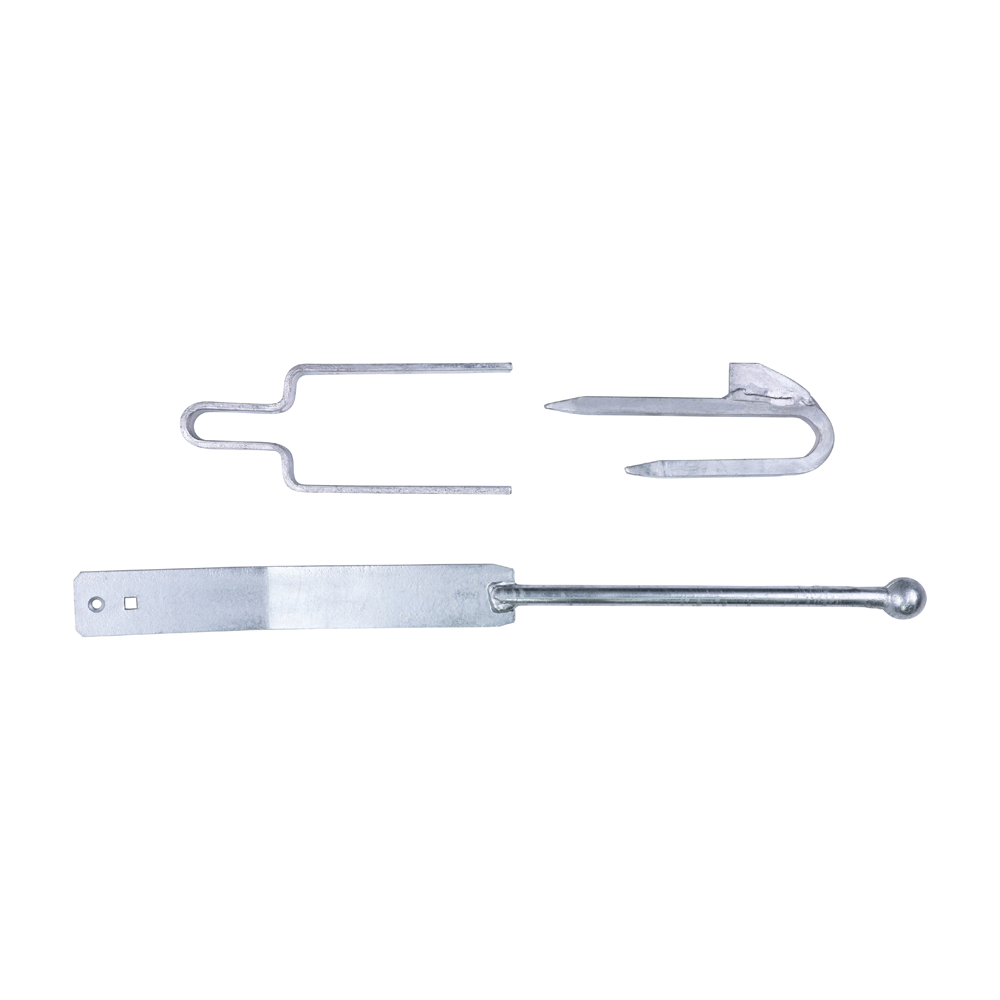

| Contents | Spring Fastener (Qty 1), Double Leg Striker (Qty 1), Spring Keep (Qty 1), Carriage Bolt M8 x 100mm (Qty 1), Woodscrews 6.0 x 40mm (Qty 6), M8 Hex Full Nut (Qty 1), M8 Form A Washer (Qty 1) |
Attribute Group 1
| Brand | TIMCO |
Spring Gate Fastener Set With Staple Catch - Hot Dipped Galvanised
610mm
- Product Code: SFF610G
- Pack Type: Plain Bag
- Pack Quantity: 1
- Barcode: 5055893360071
