Product Information

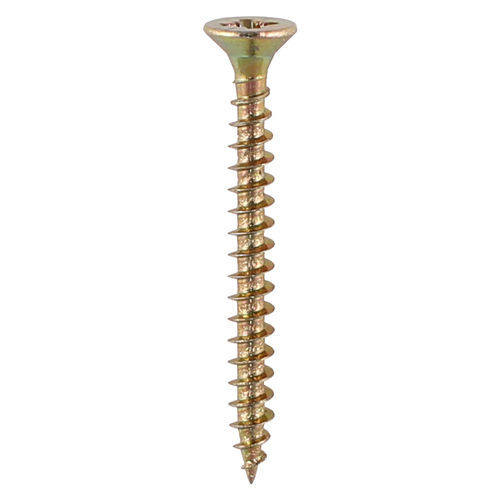

A single thread woodscrew mainly used in various types of timber and man-made boards or into masonry with the use of a plastic plug.
- Double countersunk reduces the likelihood of head shear and assists completion of countersinking
- Wax lubricated to enhance screw insertion time, extra driving torque and resistance to corrosion
- 40° deep single thread to provide a secure fixing with high pull-out resistance
- 25° sharp point and single lead for a fast start and improved thread acceptance
- All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Documents
Technical Specifications
Product Specifications
| Gauge | 10 |
| Finish | Zinc & Yellow |
| Head Type | Double Countersunk |
| Material | Carbon Steel |
| Point Type | 25° Sharp |
| Recess Type | Pozi |
| Thread Coverage | Fully Threaded |
| Thread Type | 40° Single Deep |
| Driver Bit Size | PZ2 |
| Substrates | Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal |
Product Specification
| Length inch | 2 3/4 |
| Length mm | 70 |
| Diameter mm | 5.0 |
| Size mm | 5.0 x 70 |
| Thread Length mm | 65 |
| Lubrication | Wax |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Pack Dimensions L x W x H mm | 15 x 90 x 163 |
| Pack Weight kg | 0.048 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | 6000 |
| CE Standard Web | BS EN 14592:2008 |
| Product Code | 50070CHYP |
| SKU Barcode | 5055331828217 |
| Size imp | 10 x 2 '3/4 |
| Thread Dia mm | 5 |
| Inner Thread Dia mm | 3.1 |
| Head Dia mm | 9.74 |
Attribute Group 1
| Brand | TIMCO |

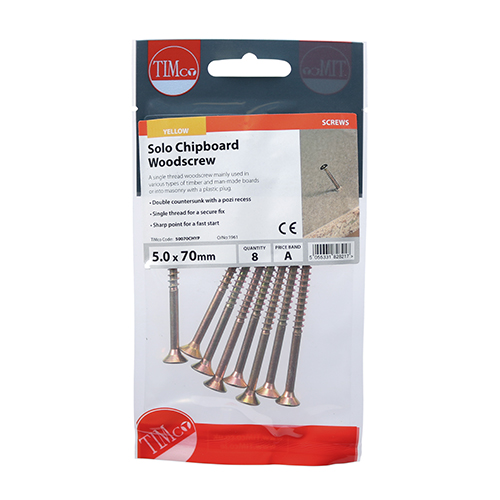

Solo Woodscrews - PZ - Double Countersunk - Yellow
5.0 x 70
- Product Code: 50070CHYP
- Pack Type: TIMpac
- Pack Quantity: 8
- Barcode: 5055331828217
