Product Information
A single thread woodscrew mainly used in various types of timber and man-made boards.

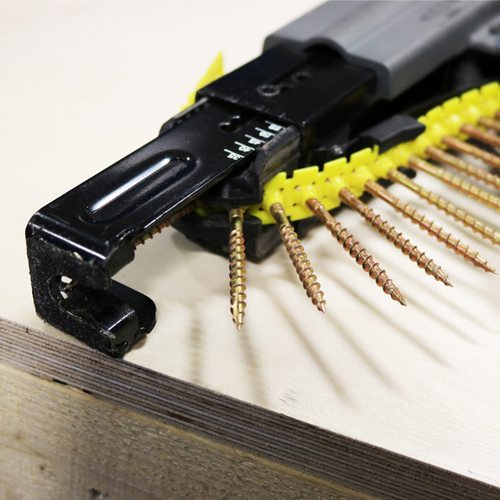

- The collated strips are specifically designed to be compatible with all leading power tool brands
- Dual thread to assist with clamping
Documents
Technical Specifications
Product Specification
| Length inch | 2 3/8 |
| Length mm | 55 |
| Diameter mm | 4.2 |
| Size mm | 4.2 x 55 |
| Thread Length mm | 36.7 |
| Collated Uncollated | Collated |
| Lubrication | Wax |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Pack Dimensions L x W x H mm | 562 x 122 x 66 |
| Pack Weight kg | 3.76 |
| Carton Qty Packs | 4 |
| Pallet Qty Packs | 128 |
| CE Standard Web | BS EN 14592:2008 |
| Product Code | 55SCOLY |
| SKU Barcode | 5055893368732 |
| Thread Dia mm | 4.2 |
| Inner Thread Dia mm | 2.75 |
| Head Dia mm | 8.23 |
Product Specifications
| Finish | Zinc & Yellow |
| Head Type | Double Countersunk |
| Material | Carbon Steel |
| Point Type | Single Slash |
| Recess Type | Phillips |
| Screws Per Strip | 50 |
| Thread Coverage | Partially Threaded |
| Thread Type | Dual 60° Single Deep |
| Driver Bit Size | PH2 |
| Substrates | Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal |
Attribute Group 1
| Brand | TIMCO |

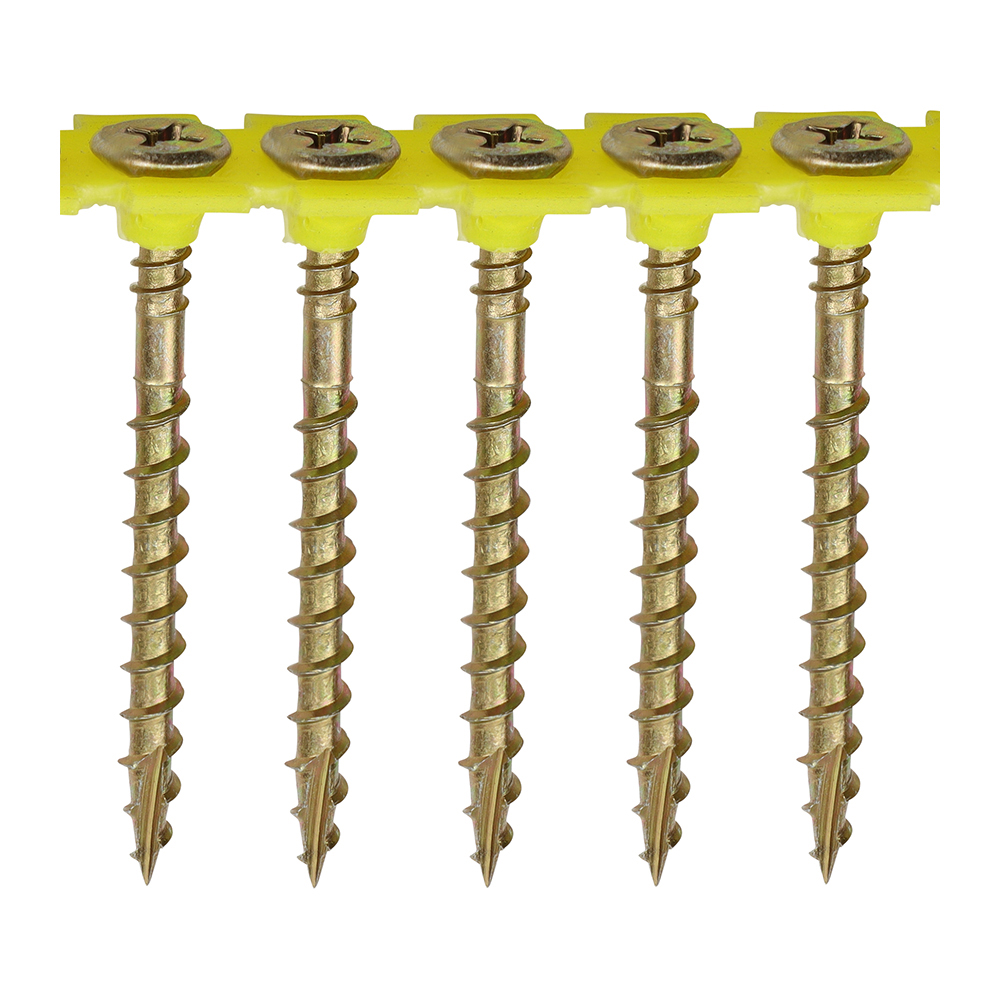

Solo Collated Chipboard & Woodscrews - PH - Double Countersunk - Yellow
4.2 x 55
- Product Code: 55SCOLY
- Pack Type: Box
- Pack Quantity: 1000
- Barcode: 5055893368732
