Product Information

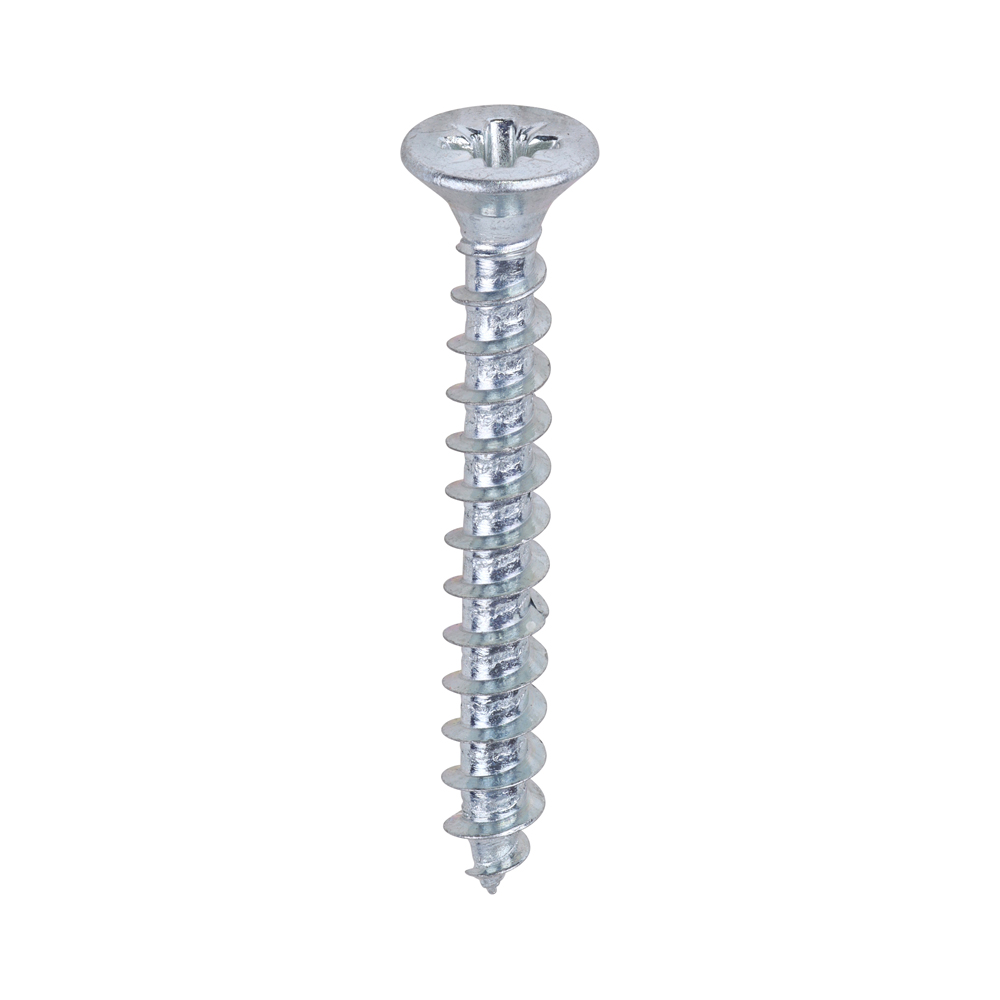

A single thread woodscrew mainly used in various types of timber and man-made boards or into masonry with the use of a plastic plug.
- Double countersunk reduces the likelihood of head shear and assists completion of countersinking
- Wax lubricated to enhance screw insertion time, extra driving torque and resistance to corrosion
- 40° deep single thread to provide a secure fixing with high pull-out resistance
- 25° sharp point and single lead for a fast start and improved thread acceptance
- All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Documents
Technical Specifications
Product Specifications
| Gauge | 4 |
| Finish | Zinc |
| Head Type | Double Countersunk |
| Material | Carbon Steel |
| Point Type | 25° Sharp |
| Recess Type | Pozi |
| Thread Coverage | Fully Threaded |
| Thread Type | 40° Single Deep |
| Driver Bit Size | PZ1 |
| Substrates | Softwood, Chipboard, MDF, Masonry (with plug) |
Product Specification
| Length inch | 1 |
| Length mm | 25 |
| Diameter mm | 3.0 |
| Size mm | 3.0 x 25 |
| Thread Length mm | 20 |
| Lubrication | Wax |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Indoor Outdoor Usage | Internal |
| Pack Dimensions L x W x H mm | 70 x 58 x 34 |
| Pack Weight kg | 0.18 |
| Carton Qty Packs | 75 |
| Pallet Qty Packs | 2700 |
| CE Standard Web | BS EN 14592:2008 |
| Service Class | 1 |
| Product Code | 30025SOLOZ |
| SKU Barcode | 5056110843773 |
| Size imp | 4 x 1 |
| Thread Dia mm | 3 |
| Inner Thread Dia mm | 2 |
| Head Dia mm | 5.82 |
Attribute Group 1
| Brand | TIMCO |

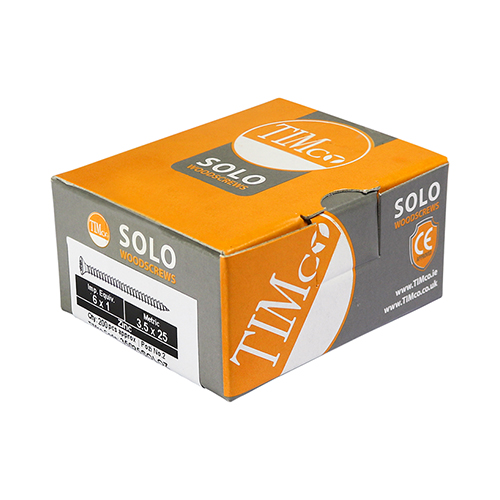

Solo Chipboard & Woodscrews - PZ - Double Countersunk - Zinc
3.0 x 25
- Product Code: 30025SOLOZ
- Pack Type: Box
- Pack Quantity: 200
- Barcode: 5056110843773
