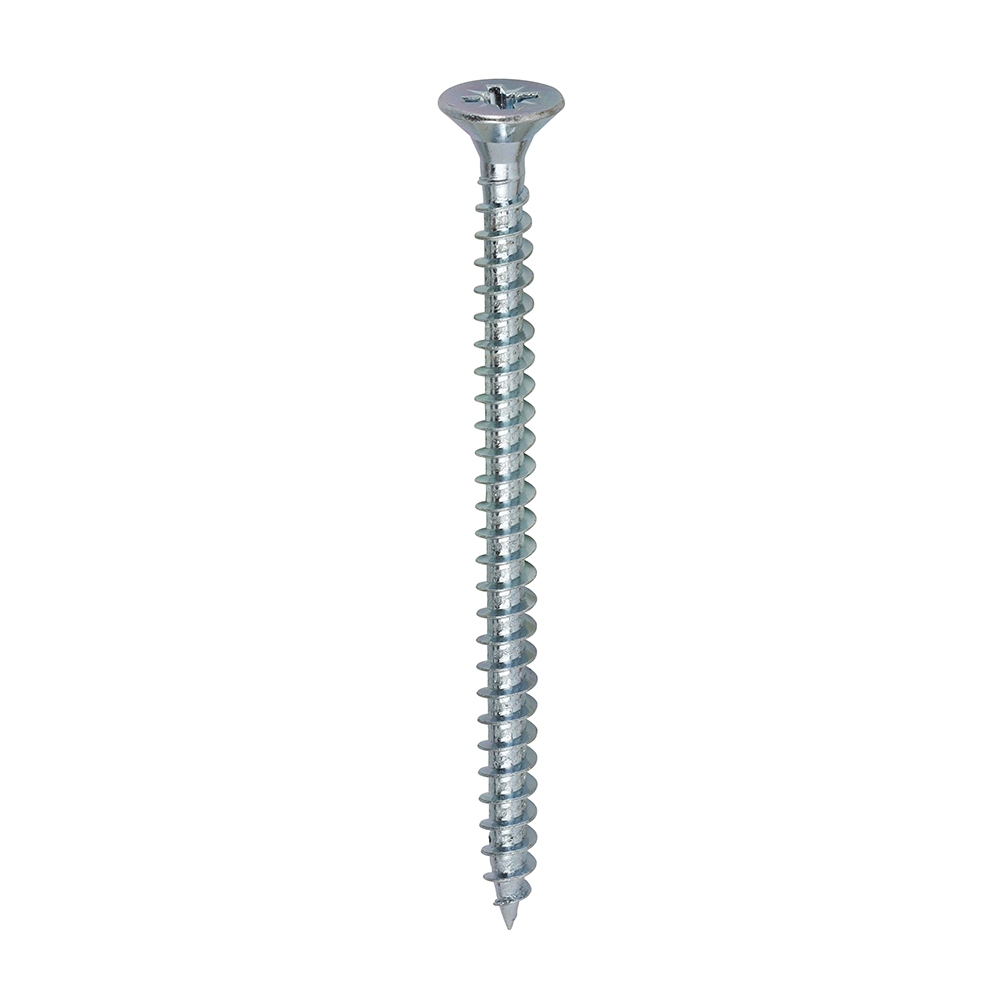

Product Image 1

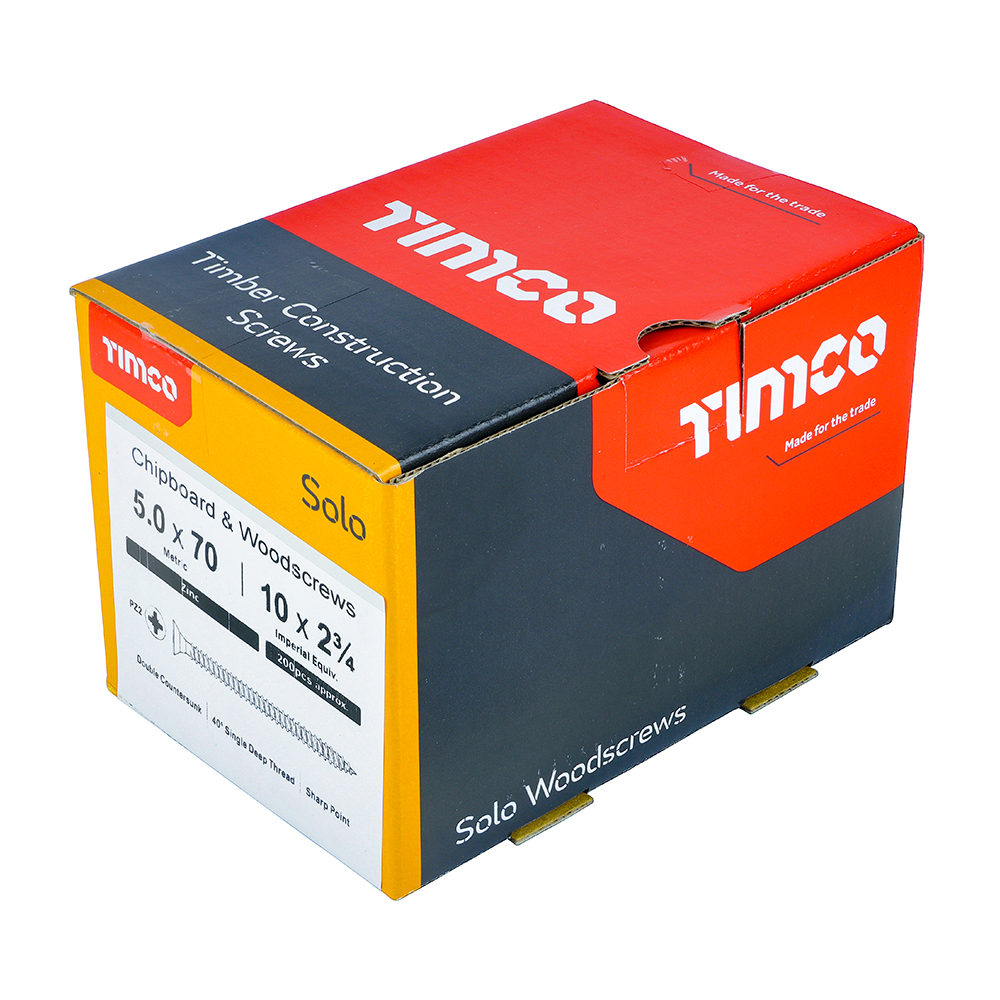

Product Image 2

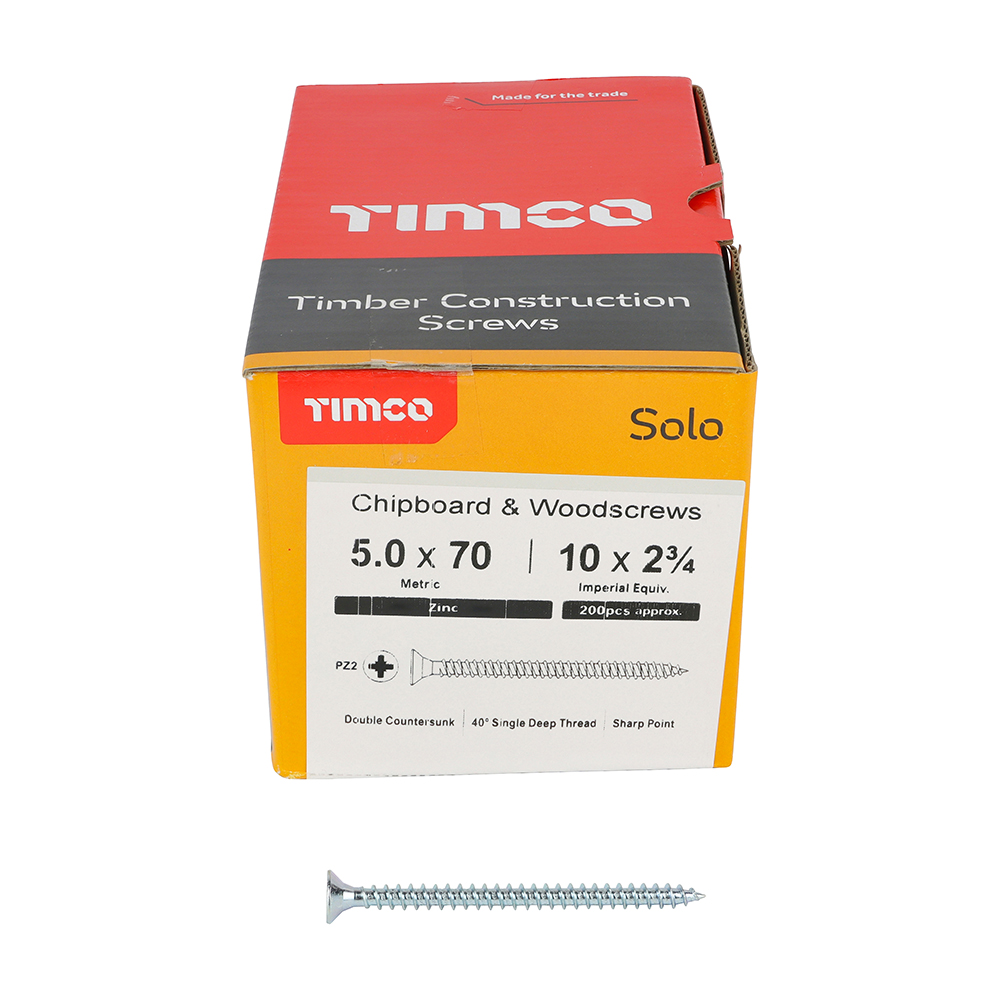

Product Image 3
Product Information
A single thread woodscrew mainly used in various types of timber and man-made boards or into masonry with the use of a plastic plug.
  • Double countersunk reduces the likelihood of head shear and assists completion of countersinking
  • Wax lubricated to enhance screw insertion time, extra driving torque and resistance to corrosion
  • 40° deep single thread to provide a secure fixing with high pull-out resistance
  • 25° sharp point and single lead for a fast start and improved thread acceptance
  • All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Documents
Brochure Page
Declaration of Performance CE
Technical Specifications
Product Specification
Gauge 10
Length inch 2 3/4
Length mm 70
Diameter mm 5.0
Size mm 5.0 x 70
Thread Length mm 65
Finish Zinc
Head Type Double Countersunk
Lubrication Wax
Material Carbon Steel
Point Type 25° Sharp
Recess Type Pozi
Thread Coverage Fully Threaded
Thread Type 40° Single Deep
Corrosion Rating 1 - Clean, dry & low humidity environments
Driver Bit Size PZ2
Substrates Softwood, Chipboard, MDF, Masonry (with plug)
Pack Dimensions L x W x H mm 138 x 96 x 94
Pack Weight kg 1.14
Carton Qty Packs 16
Pallet Qty Packs 384
CE Standard Web BS EN 14592:2008
Product Code 50070SOLOZ
SKU Barcode 5055331847508
Size imp 10 x 2 '3/4
Thread Dia mm 5
Inner Thread Dia mm 3.1
Head Dia mm 9.74
Attribute Group 1
Brand TIMCO

Solo Chipboard & Woodscrews - PZ - Double Countersunk - Zinc

5.0 x 70

  • Product Code: 50070SOLOZ
  • Pack Type: Box
  • Pack Quantity: 200
  • Barcode: 5055331847508
