Product Information

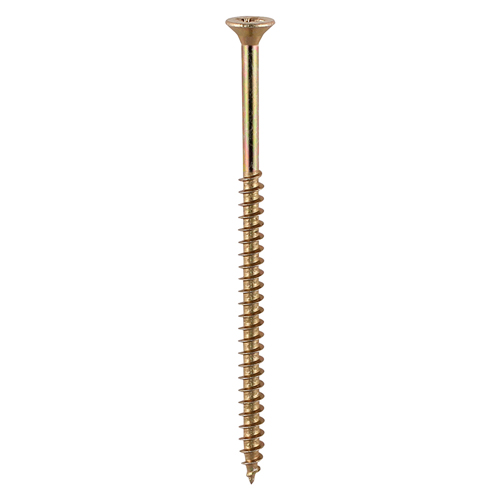

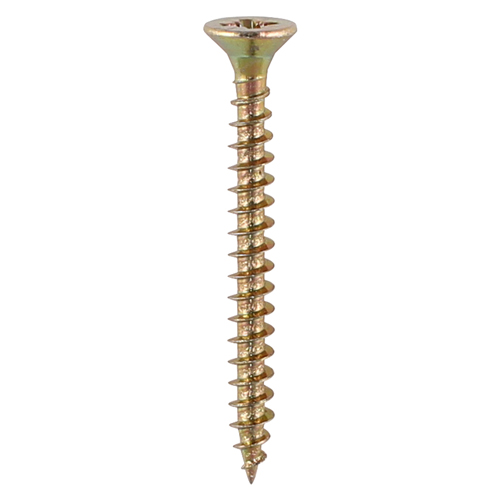

A single thread woodscrew mainly used in various types of timber and man-made boards or into masonry with the use of a plastic plug.
- Double countersunk reduces the likelihood of head shear and assists completion of countersinking
- Wax lubricated to enhance screw insertion time, extra driving torque and resistance to corrosion
- 40° deep single thread to provide a secure fixing with high pull-out resistance
- 25° sharp point and single lead for a fast start and improved thread acceptance
- All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Documents
Technical Specifications
Product Specification
| Length mm | Assorted |
| Diameter mm | Assorted |
| Size mm | Assorted |
| Thread Length mm | Assorted |
| Lubrication | Wax |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Pack Dimensions L x W x H mm | 254 x 196 x 144 |
| Pack Weight kg | 5.22 |
| Carton Qty Packs | N/A |
| Pallet Qty Packs | 64 |
| CE Standard Web | BS EN 14592:2008 |
| Product Code | SOLOMP |
| SKU Barcode | 5055331835314 |
| Thread Dia mm | Assorted |
Product Specifications
| Finish | Zinc & Yellow |
| Head Type | Double Countersunk |
| Material | Carbon Steel |
| Point Type | 25° Sharp |
| Recess Type | Pozi |
| Thread Type | 40° Single Deep |
| Driver Bit Size | PZ2 |
| Substrates | Softwood, Chipboard, MDF, Masonry (with plug) |
| Contents | 3.5 x 25mm (Qty 200), 4.0 x 30mm (Qty 200), 4.0 x 40mm (Qty 200), 4.0 x 50mm (Qty 200), 5.0 x 50mm (Qty 200), 5.0 x 60mm (Qty 100), 5.0 x 70mm (Qty 100), 5.0 x 80mm (Qty 100), 5.0 x 100mm (Qty 100) |
Attribute Group 1
| Brand | TIMCO |

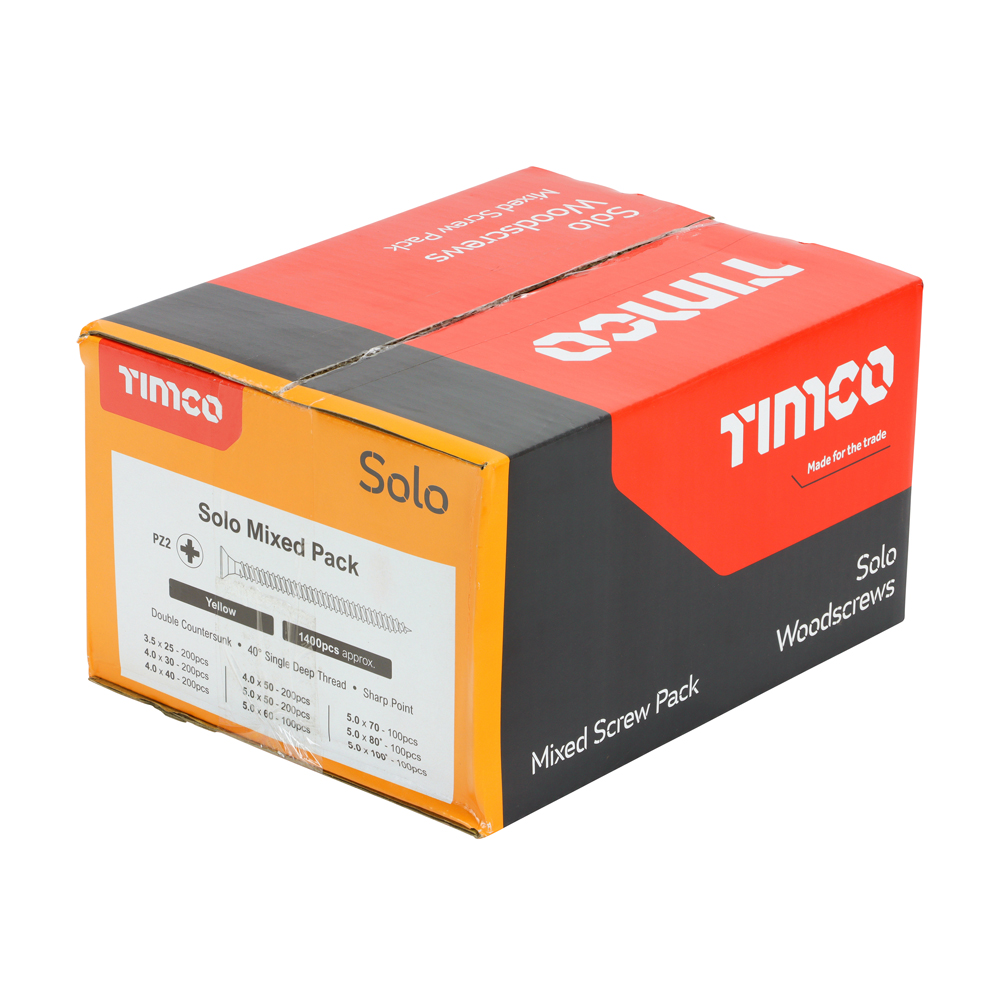

Solo Chipboard & Woodscrews - Mixed Pack - PZ - Double Countersunk - Yellow
1400pcs
- Product Code: SOLOMP
- Pack Type: Box
- Pack Quantity: 1400
- Barcode: 5055331835314
