Product Information
Ideal for hanging light cupboard and cabinet doors in quality joinery projects.
- Manufactured from solid drawn brass to guarantee no rust and a superior finish
- Available in a variety of finishes
Documents
Technical Specifications
Product Specification
| Length inch | 3 |
| Length mm | 75 |
| Open Width mm | 40 |
| Screw Size mm | 3.5 x 25 |
| Size L x W mm | 75 x 40 |
| Thickness mm | 2 |
| Corner Type | Square |
| Knuckle Type | Plain |
| Pin Material | Brass |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Screws Required Per Pair | 12 |
| No of CSK Screws | 12 |
| Pack Dimensions L x W x H mm | 96 x 44 x 10 |
| Pack Weight kg | 0.14 |
| Carton Qty Packs | 100 |
| Pallet Qty Packs | N/A |
| Offers | Clearance |
| Product Code | 234279 |
| SKU Barcode | 5056110823171 |
| Size imp | 3 |
| Screw Size imp | 6 x 1 |
| Knuckle Dia mm | 6.6 |
| Hole Dia mm | 4 |
| Rec Screw Dia mm | 3.5 |
Product Specifications
| Finish | Polished Chrome |
| Material | Solid Brass |
Attribute Group 1
| Brand | TIMCO |

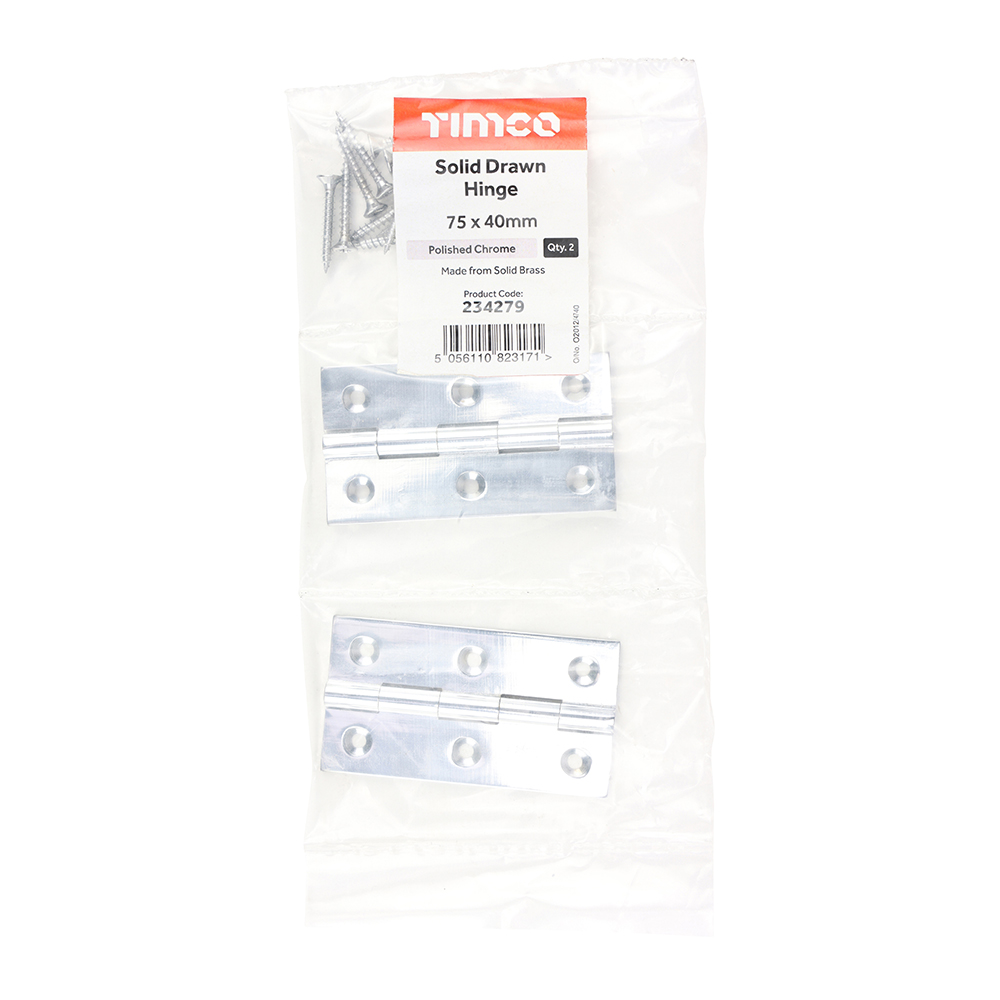

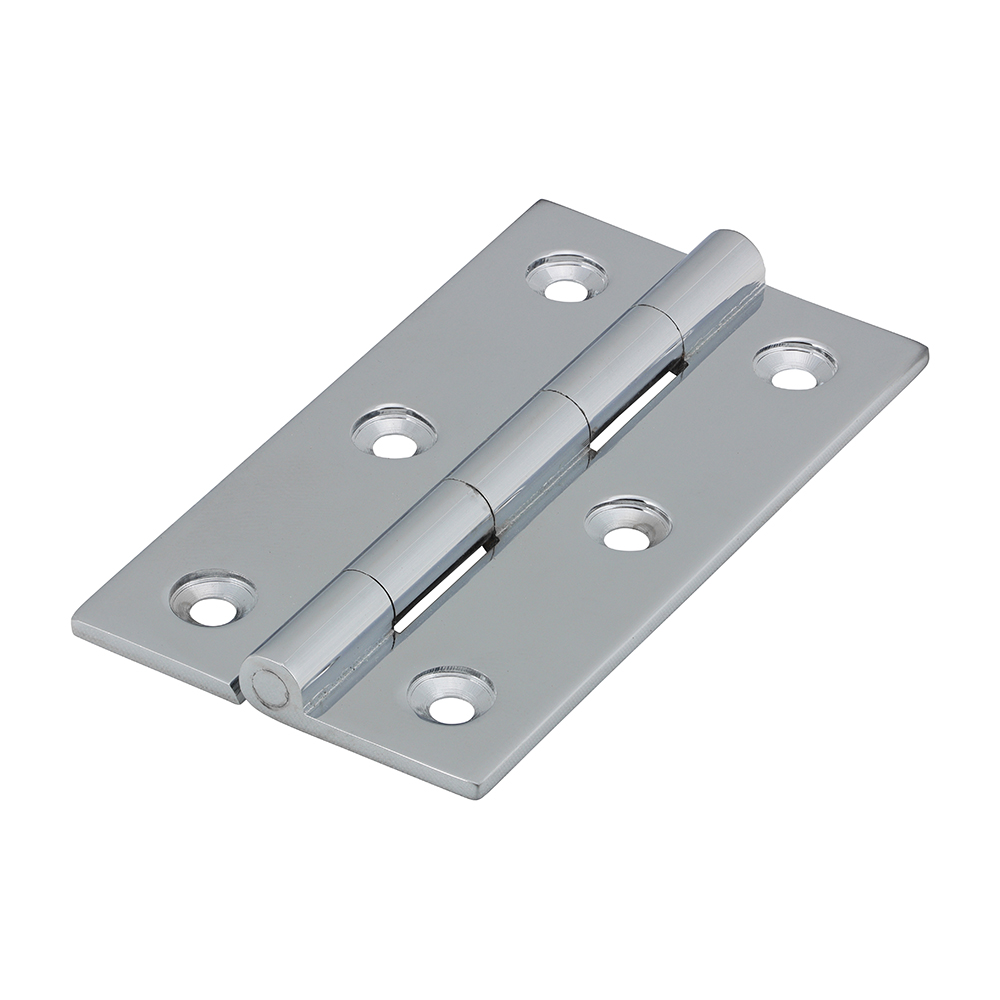

Solid Drawn Hinge - Solid Brass - Polished Chrome
75 x 40
- Product Code: 234279
- Pack Type: Bag
- Pack Quantity: 1
- Barcode: 5056110823171
