Product Information
Ideal for hanging light cupboard and cabinet doors in quality joinery projects.
- Manufactured from solid drawn brass to guarantee no rust and a superior finish
- Available in a variety of finishes
Documents
Technical Specifications
Product Specification
| Length inch | 2 |
| Length mm | 50 |
| Open Width mm | 28 |
| Screw Size mm | 3.0 x 15 |
| Size L x W mm | 50 x 28 |
| Thickness mm | 1.45 |
| Corner Type | Square |
| Knuckle Type | Plain |
| Pin Material | Brass |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Screws Required Per Pair | 12 |
| No of CSK Screws | 12 |
| Pack Dimensions L x W x H mm | 92 x 36 x 15 |
| Pack Weight kg | 0.06 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| Offers | Clearance |
| Product Code | 234204 |
| SKU Barcode | 5056110823119 |
| Size imp | 2 |
| Screw Size imp | 4 x 5/8 |
| Knuckle Dia mm | 5 |
| Hole Dia mm | 3.7 |
| Rec Screw Dia mm | 3.0 |
Product Specifications
| Finish | Bronze |
| Material | Solid Brass |
Attribute Group 1
| Brand | TIMCO |

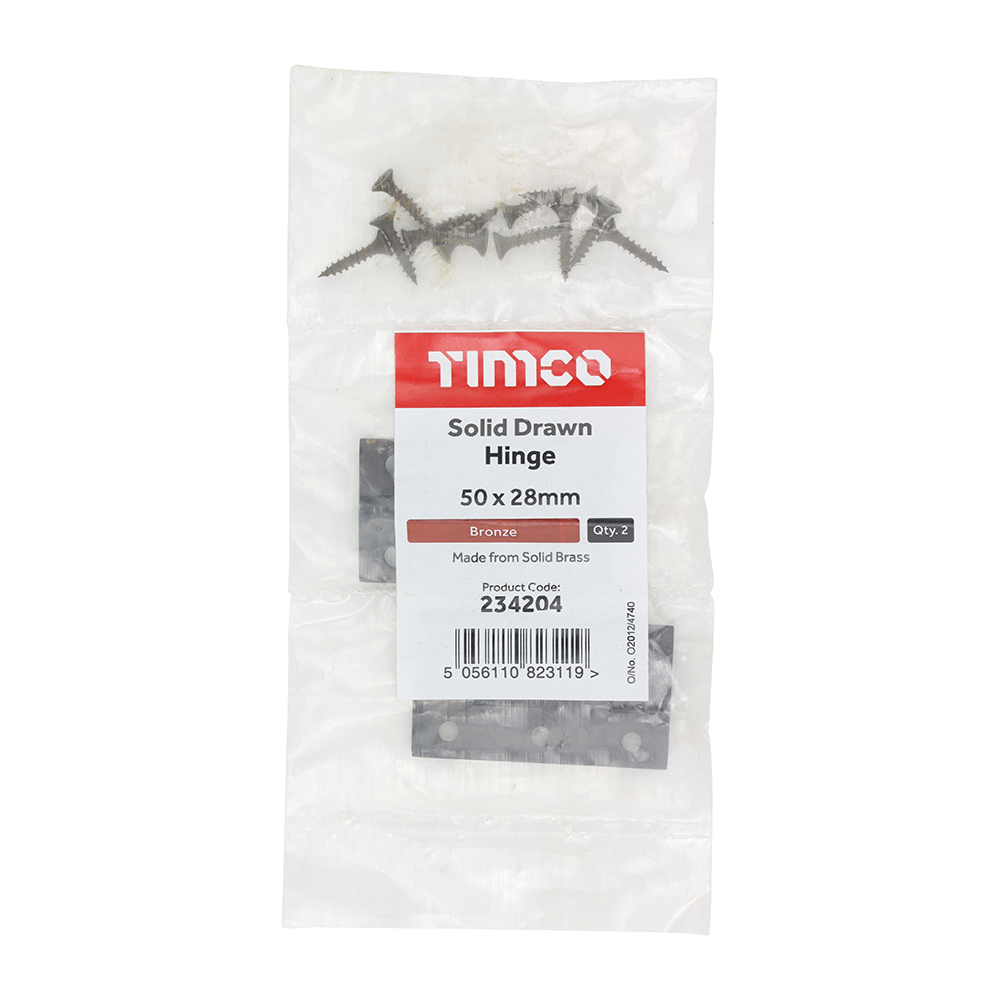

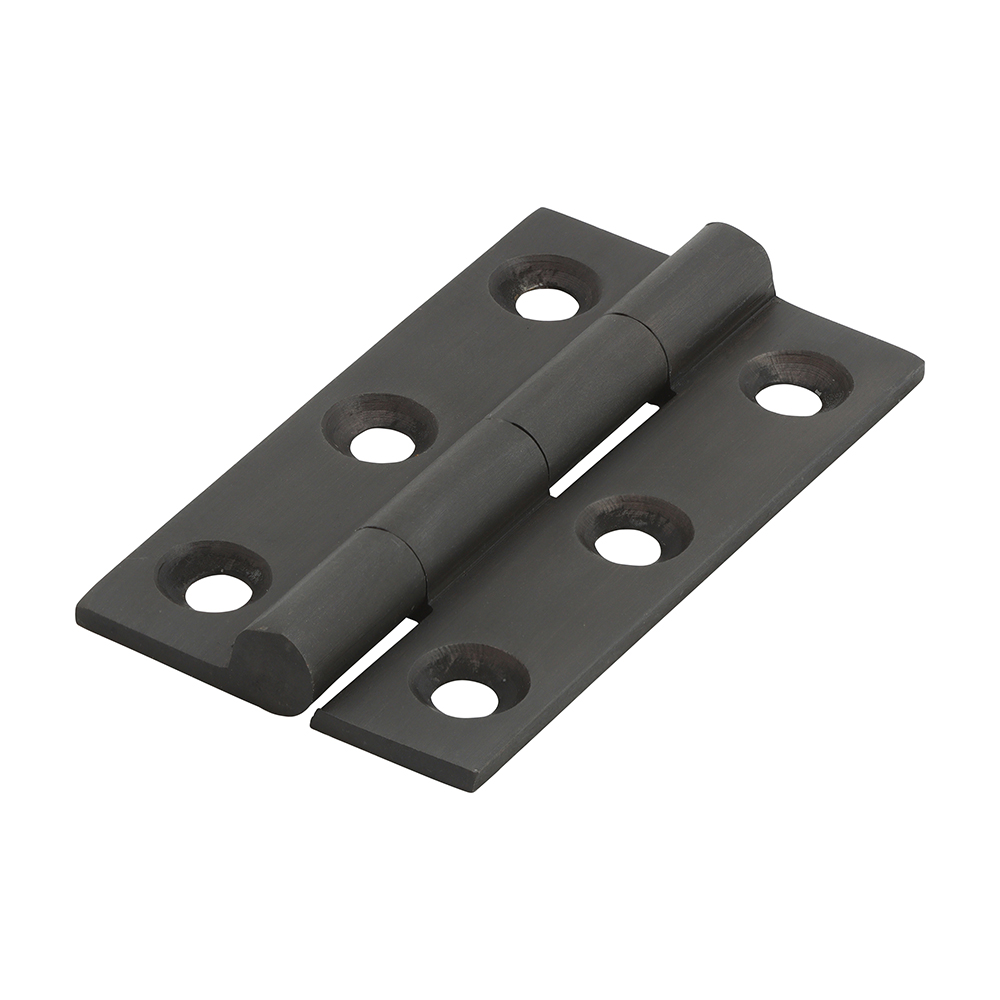

Solid Drawn Hinge - Solid Brass - Bronze
50 x 28
- Product Code: 234204
- Pack Type: Bag
- Pack Quantity: 1
- Barcode: 5056110823119
