Product Information
Designed for applications that allow the head to protrude above the joining parts. The curved design of the button head is decorative and protects adjoining parts from scrapes or other damage. Manufactured from A2 Stainless Steel offering superior corrosion resistance, perfect for external applications. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics.
- Conforms to ISO 7380
Documents
Technical Specifications
Product Specification
| Hex Recess mm | 6 |
| Length mm | 25 |
| Size mm | M8 x 25 |
| Thread Length mm | 25 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Pack Dimensions L x W x H mm | 120 x 90 x 20 |
| Pack Weight kg | 0.11 |
| Carton Qty Packs | 100 |
| Pallet Qty Packs | 3600 |
| Product Code | 825BUTSSX |
| SKU Barcode | 5055893341926 |
| Thread Dia mm | M8 |
Product Specifications
| Head Type | Button |
| Material | Austenitic Stainless Steel (A2-304) |
| Point Type | B Point |
| Recess Type | Internal Hex |
| Thread Coverage | Fully Threaded |
| Thread Type | Metric |
| Substrates | Steel |
Attribute Group 1
| Brand | TIMCO |

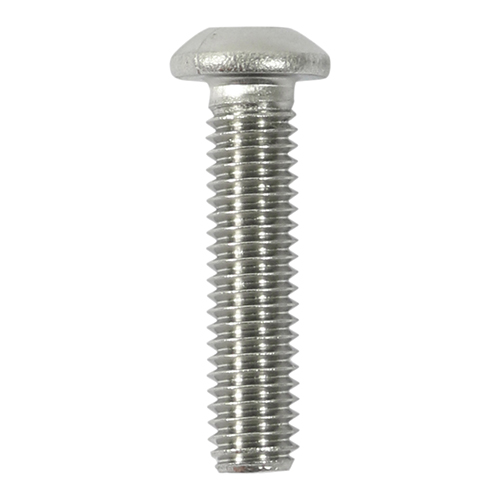

Socket Screws - Button - A2 Stainless Steel
M8 x 25
- Product Code: 825BUTSSX
- Pack Type: Bag
- Pack Quantity: 10
- Barcode: 5055893341926
