Product Information

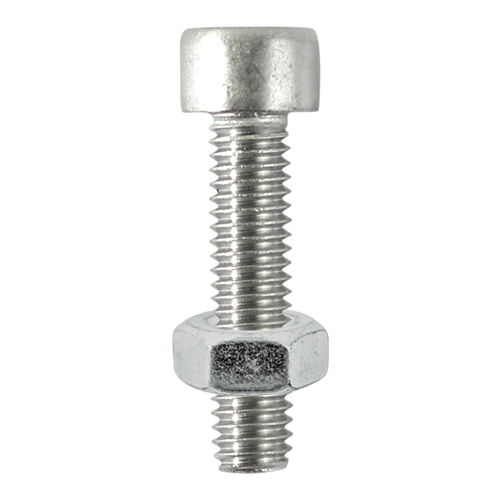

Socket head cap screws are designed to be used with the head protruding. Manufactured from A2 Stainless Steel offering superior corrosion resistance, perfect for external applications. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics. NOTE: Nuts included.
- Conforms to ISO 4762
Documents
Technical Specifications
Product Specification
| Hex Recess mm | 4 |
| Length mm | 16 |
| Nut Size mm | M5 |
| Nut Socket Size mm | 8 |
| Size mm | M5 x 16 |
| Thread Length mm | 16 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Pack Dimensions L x W x H mm | 15 x 90 x 133 |
| Pack Weight kg | 0.04 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| Product Code | 516CAPSSP |
| SKU Barcode | 5055893383087 |
| Thread Dia mm | M5 |
Product Specifications
| Head Type | Cap |
| Material | Austenitic Stainless Steel (A2-304) |
| Nut Type | Hex Full |
| Point Type | B Point |
| Recess Type | Internal Hex |
| Thread Coverage | Fully Threaded |
| Thread Type | Metric |
| Included Items | M5 Hex Full Nuts |
| Substrates | Steel |
Attribute Group 1
| Brand | TIMCO |

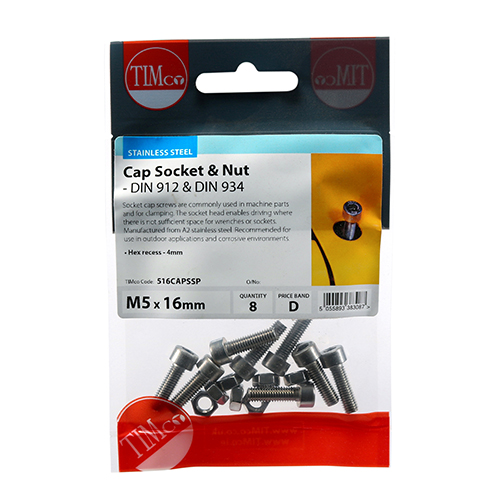

Socket Screws & Hex Nuts - Cap - Stainless Steel
M5 x 16
- Product Code: 516CAPSSP
- Pack Type: TIMpac
- Pack Quantity: 8
- Barcode: 5055893383087
