Product Information
Slide action padbolts are ideal for securing flush fitting gates and doors in domestic and light commercial applications when the bolt is exposed externally. They are pad-lockable and fixed with eight carriage bolts to prevent the bolt being wrenched from the door. Fixings included.
Documents
Technical Specifications
Product Specification
| Bolt Length inch | 7 5/16 |
| Bolt Length mm | 185 |
| Bolt Throw mm | 60 |
| Carriage Bolt Size mm | M6 x 50 |
| Nut Size mm | M6 |
| Plate Size L x W mm | 105 x 72 |
| Staple Keep Size L x W mm | 76 x 25 |
| Washer Size mm | M6 |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Max Padlock Shackle Diameter mm | 8 |
| No of Nuts | 8 |
| No of Carriage Bolts | 8 |
| No of Washers | 8 |
| Pack Dimensions L x W x H mm | 20 x 160 x 290 |
| Pack Weight kg | 0.42 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| Product Code | 287114 |
| SKU Barcode | 5055893395035 |
| Bolt Dia mm | 9 |
| To Fit Carriage Bolt Dia mm | M6 |
| No of Bolt Holes | 8 |
Product Specifications
| Finish | Epoxy Black |
| Material | Carbon Steel |
| Nut Type | Hex Full |
| Included Items | M6 x 50mm Carriage Bolts (Qty 8), M6 Hex Full Nuts (Qty 8), M6 Washers (Qty 8) |
Attribute Group 1
| Brand | TIMCO |

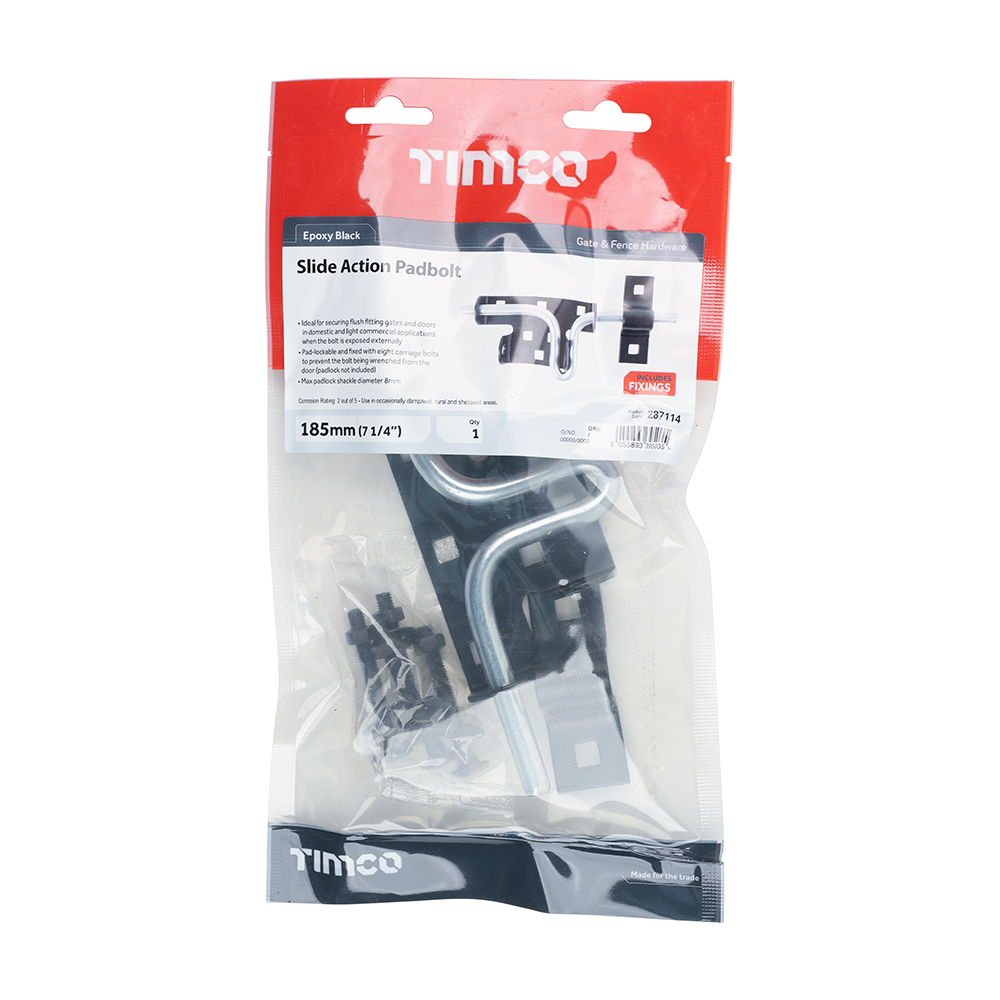

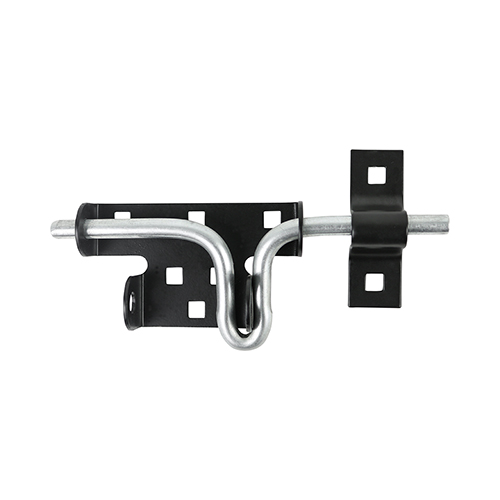

Slide Action Padbolt - Black
7 5/16"
- Product Code: 287114
- Pack Type: TIMbag
- Pack Quantity: 1
- Barcode: 5055893395035
