Product Information
The TIMCO Masonry Hanger range has been designed to support timber joists from a brick or block wall. Install by either building into the wall or for renovation work, rake out existing brickwork. Manufactured from pre-galvanised steel to give a high level of corrosion resistance.
- Conforms to Eurocode 6 and service class 2
- Straight top flange
- No welds
- Hangers 150mm and above are manufactured 10mm less to allow for notching and regularised timber
Documents
Technical Specifications
Product Specification
| Bearing mm | 80 |
| Height mm | 140 |
| Joist Size W x H mm | 47 x 150 |
| Thickness mm | 2.4 |
| Width mm | 47 |
| Type | Single Piece |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Safe Working Load kN | 5.4 |
| Pack Dimensions L x W x H mm | 80 x 47 x 140 |
| Pack Weight kg | 0.4 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| CE Standard Web | BS EN 845-1:2013+A1:2016 |
| Eurocode | 6 |
| Service Class | 2 |
| Product Code | 47147MH |
| SKU Barcode | 5022456317377 |
Product Specifications
| Finish | Galvanised |
| Material | Carbon Steel |
| Approval | BS 5628 |
Attribute Group 1
| Brand | TIMCO |

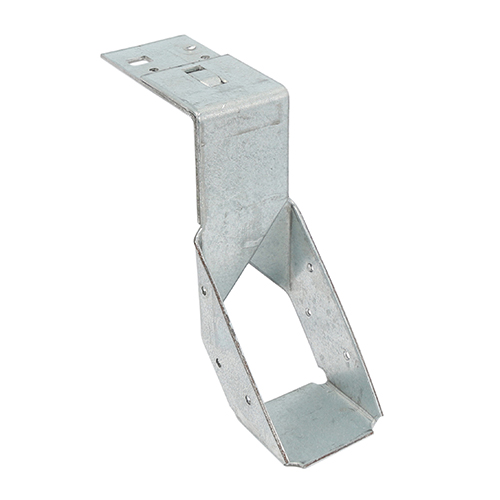

Single Piece Masonry Hangers - Galvanised
47 x 150
- Product Code: 47147MH
- Pack Type: Unit
- Pack Quantity: 1
- Barcode: 5022456317377
