Product Information
Single hinged flexible hasp and staple for use around corners, angles and uneven surfaces where doors do not sit flush with frames.
Documents
Technical Specifications
Product Specification
| Fixing Plate Size L x W mm | 45 x 40 |
| Hasp Plate Size L1 x L2 x W mm | 88 x 69 x 46 |
| Size inch | 6 |
| Size mm | 160 |
| Staple Plate Size L x W mm | 42 x 44 |
| Type | Single Hinged |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Max Padlock Shackle Diameter mm | 13 |
| Security Rating | 7 |
| Weather Rating | 5 |
| Pack Dimensions L x W x H mm | 40 x 75 x 220 |
| Pack Weight kg | 0.272 |
| Carton Qty Packs | 48 |
| Pallet Qty Packs | N/A |
| Product Code | PHS160 |
| SKU Barcode | 5056110857916 |
| Rec Screw Dia mm | 4.0 |
Product Specifications
| Finish | Zinc |
| Material | Carbon Steel |
Attribute Group 1
| Brand | TIMCO |

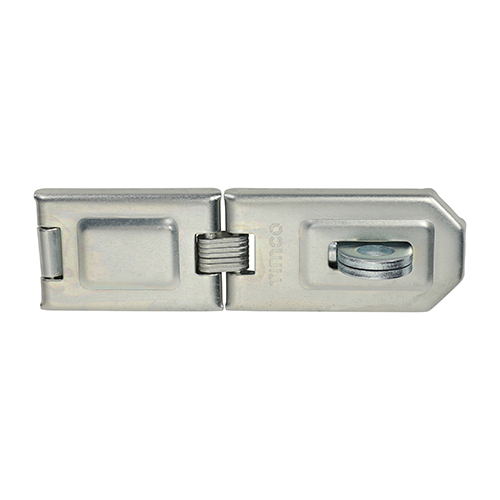

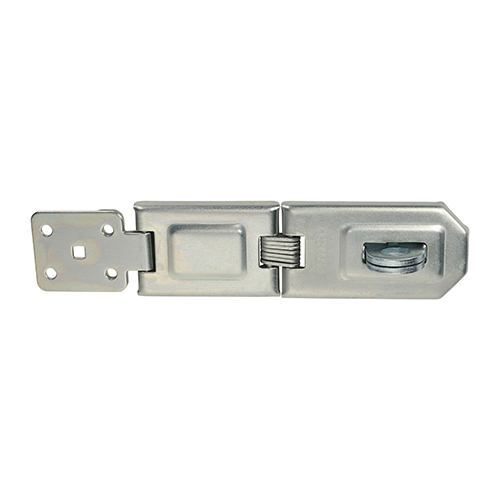

Single Hinged Hasp & Staple - Zinc
160mm
- Product Code: PHS160

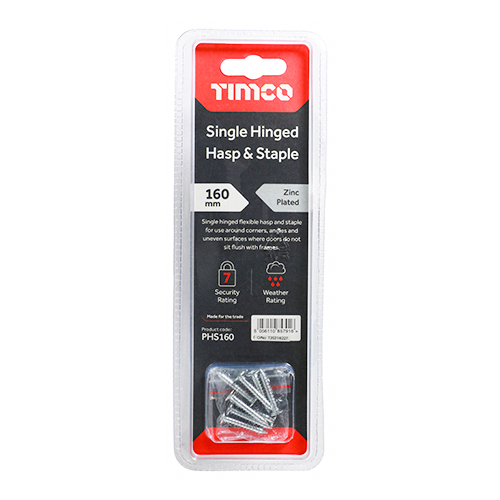

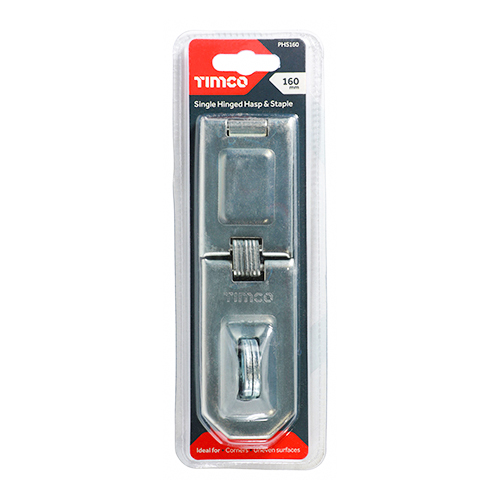

- Pack Type: Blister Pack
- Pack Quantity: 1
- Barcode: 5056110857916
