Product Information
A complete gate kit for medium weight gates in domestic applications. Brenton padbolt is pad-lockable and bolt fixed for additional security. Fixings included.
Documents
Technical Specifications
Product Specification
| Carriage Bolt Size mm | M6 x 50 |
| Nut Size mm | M6 |
| Washer Size mm | M6 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| CSK Screw Size mm | 5.0 x 30 |
| Max Gate Thickness mm | 50 |
| Max Gate Weight kg | 40 |
| Max Padlock Shackle Diameter mm | 12 |
| No of Pan Screws | 20 |
| No of Nuts | 4 |
| No of CSK Screws | 18 |
| No of Carriage Bolts | 4 |
| No of Washers | 4 |
| Pan Screw Size mm | 4.0 x 30 |
| To Suit Gate Width mm | 900 - 1350 |
| Pack Dimensions L x W x H mm | 524 x 172 x 62 |
| Pack Weight kg | 1.908 |
| Carton Qty Packs | 5 |
| Pallet Qty Packs | N/A |
| Offers | Sale |
| Product Code | 427635 |
| SKU Barcode | 5055893389072 |
| Rec Screw Dia mm | 4.0 & 5.0 |
| To Fit Carriage Bolt Dia mm | M6 |
Product Specifications
| Finish | Hot Dipped Galvanised |
| Nut Type | Hex Full |

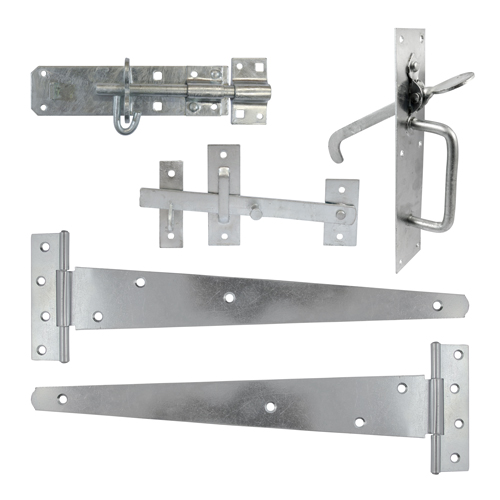

| Contents | 450mm Medium Tee Hinges (Qty 2), 185mm Suffolk Latch (Qty 1), 150mm Brenton Padbolt (Qty 1), 5.0 x 30mm Countersunk Screws (Qty 20), 4.0 x 30mm Pan Screws (Qty 20), M6 x 50mm Carriage Bolts (Qty 4), M6 Hex Full Nuts (Qty 4), M6 Form A Washers (Qty 4) |
Attribute Group 1
| Brand | TIMCO |

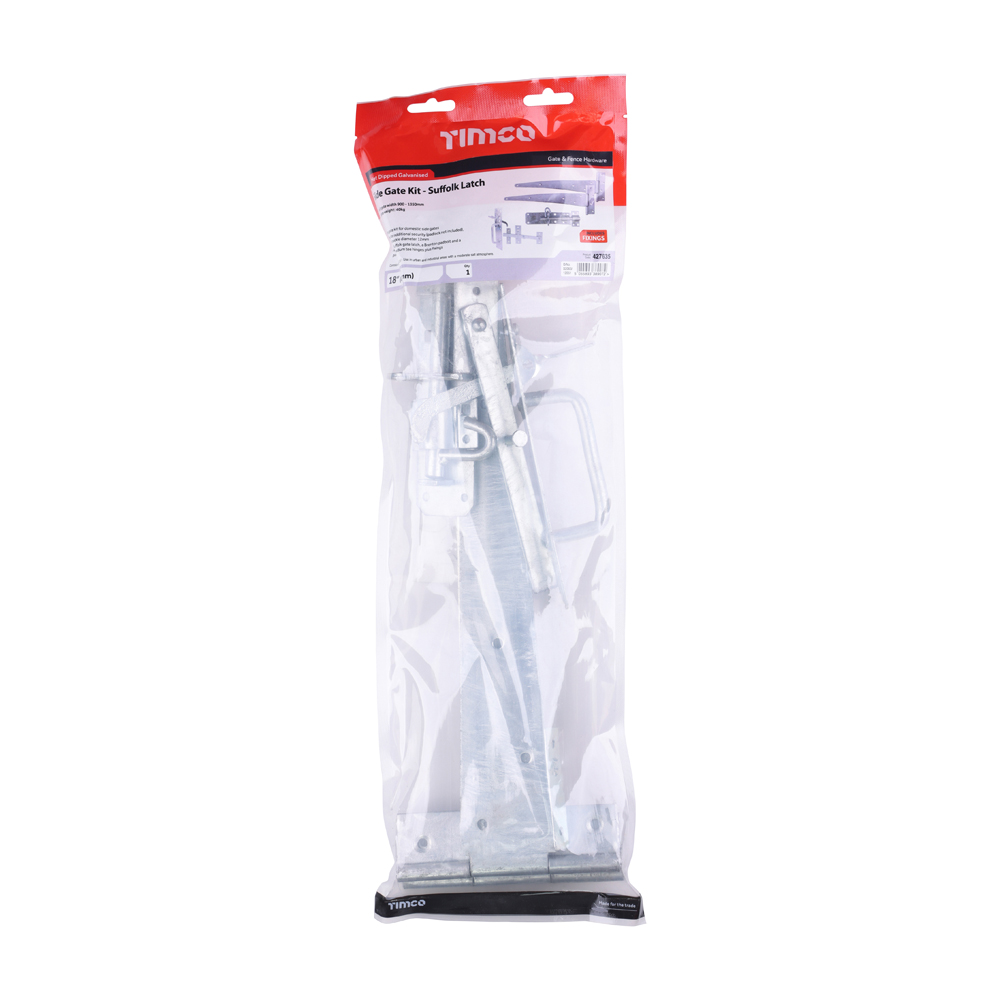

Side Gate Kit - Suffolk Latch - Hot Dipped Galvanised
18"
- Product Code: 427635
- Pack Type: TIMbag
- Pack Quantity: 1
- Barcode: 5055893389072
