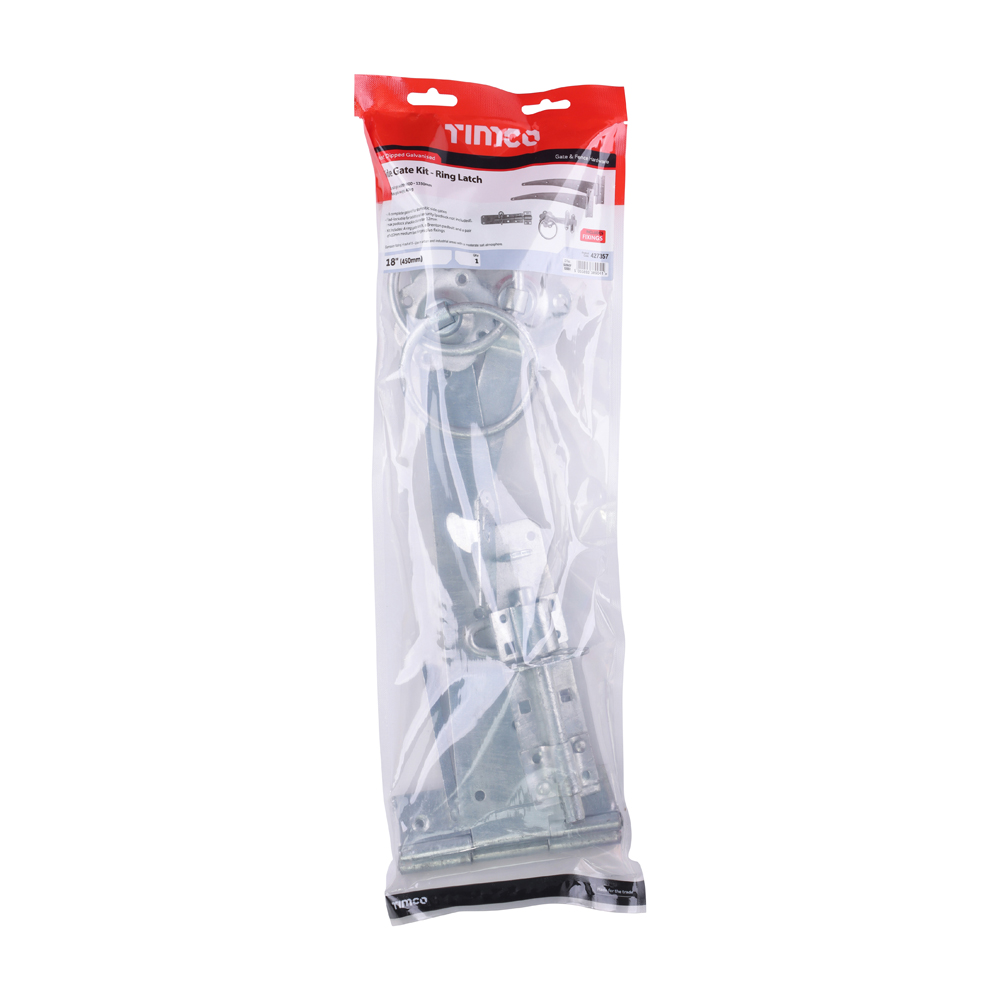

Product Image 1
Product Image 2
Product Information
A complete gate kit for medium weight gates in domestic applications. Brenton padbolt is pad-lockable and bolt fixed for additional security. Fixings included.
Documents
Brochure Page
Technical Specifications
Product Specification
Carriage Bolt Size mm M6 x 50
Nut Size mm M6
Washer Size mm M6
Finish Hot Dipped Galvanised
Nut Type Hex Full
Corrosion Rating 4 - Urban & industrial areas with a moderate salt atmosphere
CSK Screw Size mm 5.0 x 30
Max Gate Weight kg 40
Max Padlock Shackle Diameter mm 12
No of Pan Screws 18
No of Nuts 4
No of CSK Screws 18
No of Carriage Bolts 4
No of Washers 4
Pan Screw Size mm 4.0 x 30
To Suit Gate Width mm 900 - 1350
Pack Dimensions L x W x H mm 513 x 165 x 61
Pack Weight kg 2.052
Carton Qty Packs 5
Pallet Qty Packs N/A
Offers Sale
Product Code 427357
SKU Barcode 5055893389041

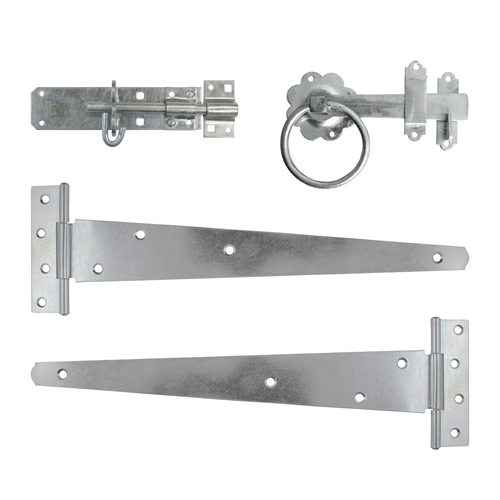

Contents 450mm Medium Tee Hinges (Qty 2), 150mm Ring Gate Latch (Qty 1), 150mm Brenton Padbolt (Qty 1), 5.0 x 30mm Countersunk Screws (Qty 20), 4.0 x 30mm Pan Screws (Qty 20), M6 x 50mm Carriage Bolts (Qty 4), M6 Hex Full Nuts (Qty 4), M6 Form A Washers (Qty 4)
Rec Screw Dia mm 4.0 & 5.0
To Fit Carriage Bolt Dia mm M6
Attribute Group 1
Brand TIMCO

Side Gate Kit - Ring Latch - Hot Dipped Galvanised

18"

  • Product Code: 427357
  • Pack Type: TIMbag
  • Pack Quantity: 1
  • Barcode: 5055893389041
