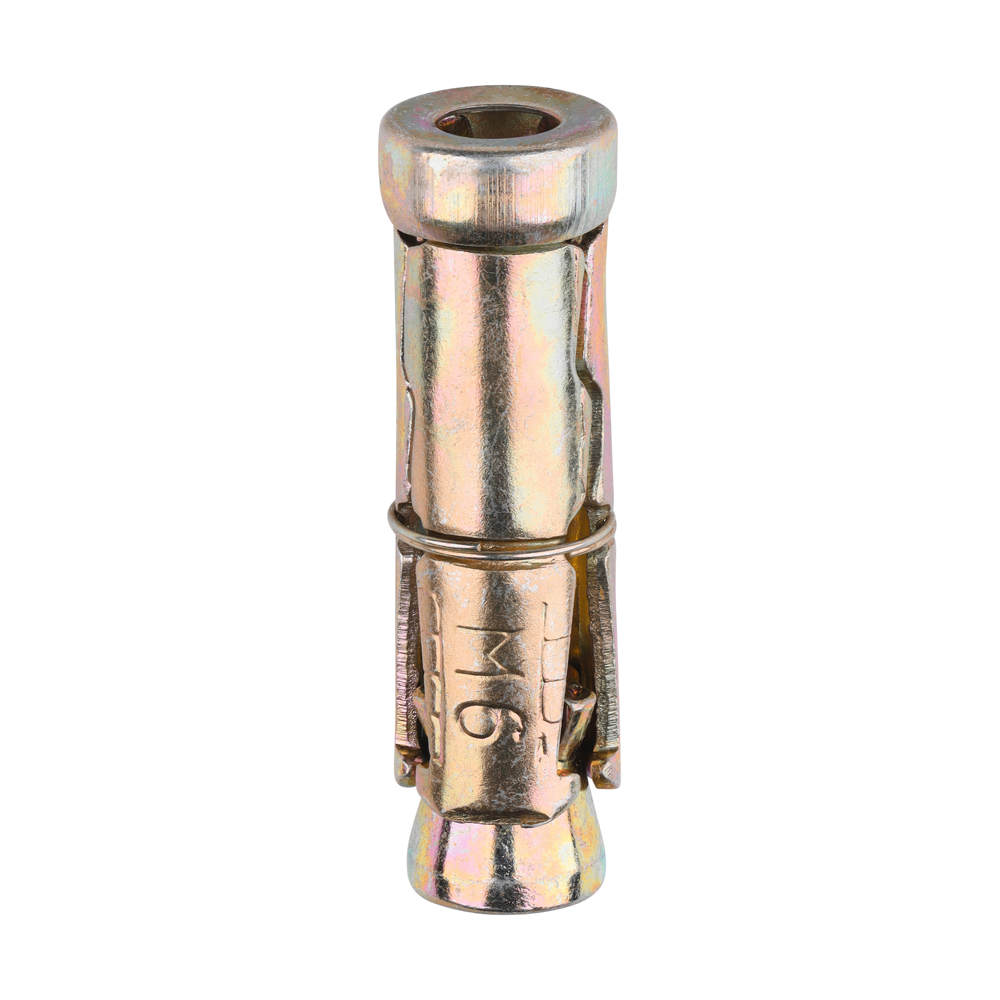

Product Image 1
Product Image 2
Product Information
Suitable for attaching a variety of fixings with metric threads such as hooks, eyes and studs.
  • Compatible with most types of metric threaded components
  • A three segmented expansion anchor used in concrete, brick or stone
  • Torque controlled
Documents
Brochure Page
Technical Specifications
Product Specification
Shield Length mm 45
Finish Zinc & Yellow
Material Carbon Steel
Thread Type Metric
Type Shield Only
Centre Spacing mm 135
Corrosion Rating 1 - Clean, dry & low humidity environments
Fixture Hole Diameter mm 8
Min Drill Hole Depth mm 55
Min Embedment Depth mm 45
Min Structure Thickness mm 90
Substrates Concrete, Brick, Stone
Pack Dimensions L x W x H mm 100 x 92 x 66
Pack Weight kg 0.8
Carton Qty Packs 16
Pallet Qty Packs 640
Product Code 06SH
SKU Barcode 5055331827166
Thread Dia mm M6
Drill Hole Dia mm 12
Attribute Group 1
Brand TIMCO

Shield Only - Yellow

M6

  • Product Code: 06SH
  • Pack Type: Box
  • Pack Quantity: 50
  • Barcode: 5055331827166
