Product Information
Suitable for attaching a variety of fixings with metric threads such as hooks, eyes and studs.
- Compatible with most types of metric threaded components
- A three segmented expansion anchor used in concrete, brick or stone
- Torque controlled
Documents
Technical Specifications
Product Specification
| Shield Length mm | 60 |
| Type | Shield Only |
| Centre Spacing mm | 180 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Fixture Hole Diameter mm | 12 |
| Min Drill Hole Depth mm | 70 |
| Min Embedment Depth mm | 60 |
| Min Structure Thickness mm | 120 |
| Pack Dimensions L x W x H mm | 136 x 96 x 90 |
| Pack Weight kg | 1.88 |
| Carton Qty Packs | 8 |
| Pallet Qty Packs | 320 |
| Product Code | 10SH |
| SKU Barcode | 5055017563555 |
| Thread Dia mm | M10 |
| Drill Hole Dia mm | 16 |
Product Specifications
| Finish | Zinc & Yellow |
| Material | Carbon Steel |
| Thread Type | Metric |
| Substrates | Concrete, Brick, Stone |
Attribute Group 1
| Brand | TIMCO |

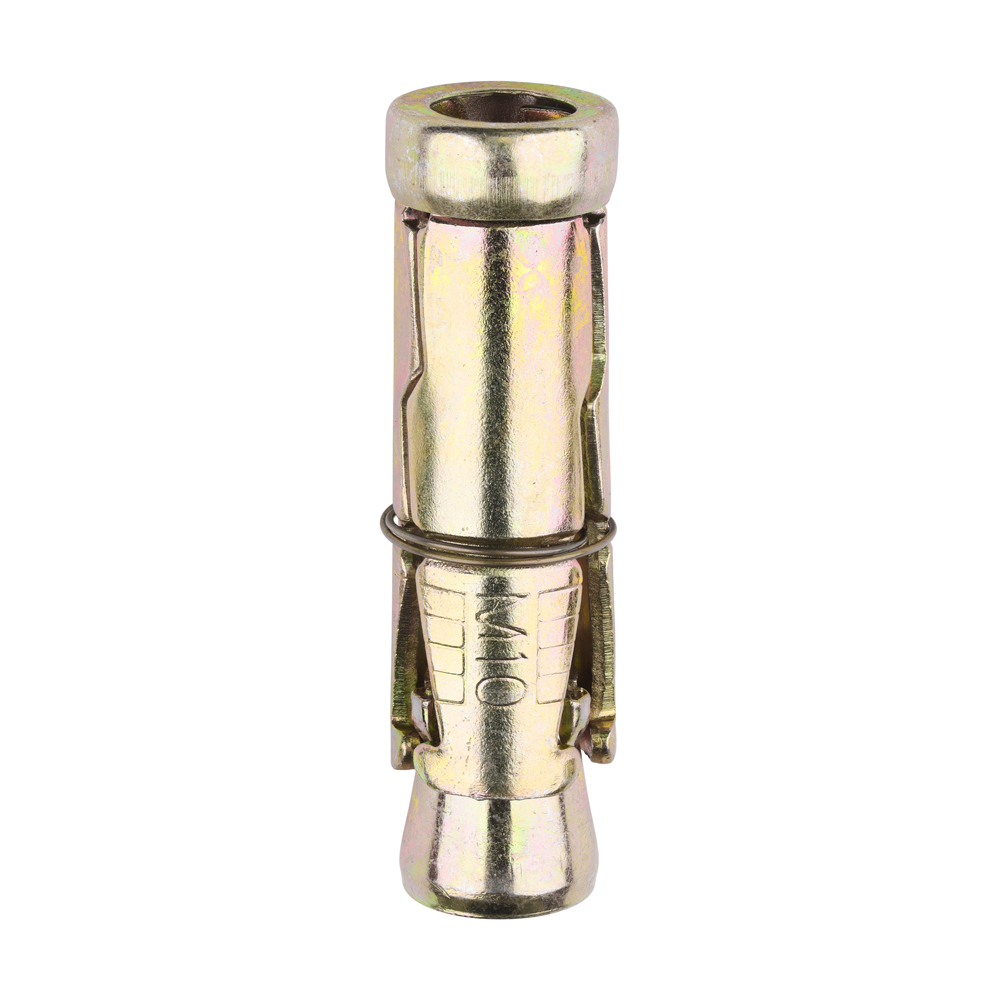

Shield Only - Yellow
M10
- Product Code: 10SH

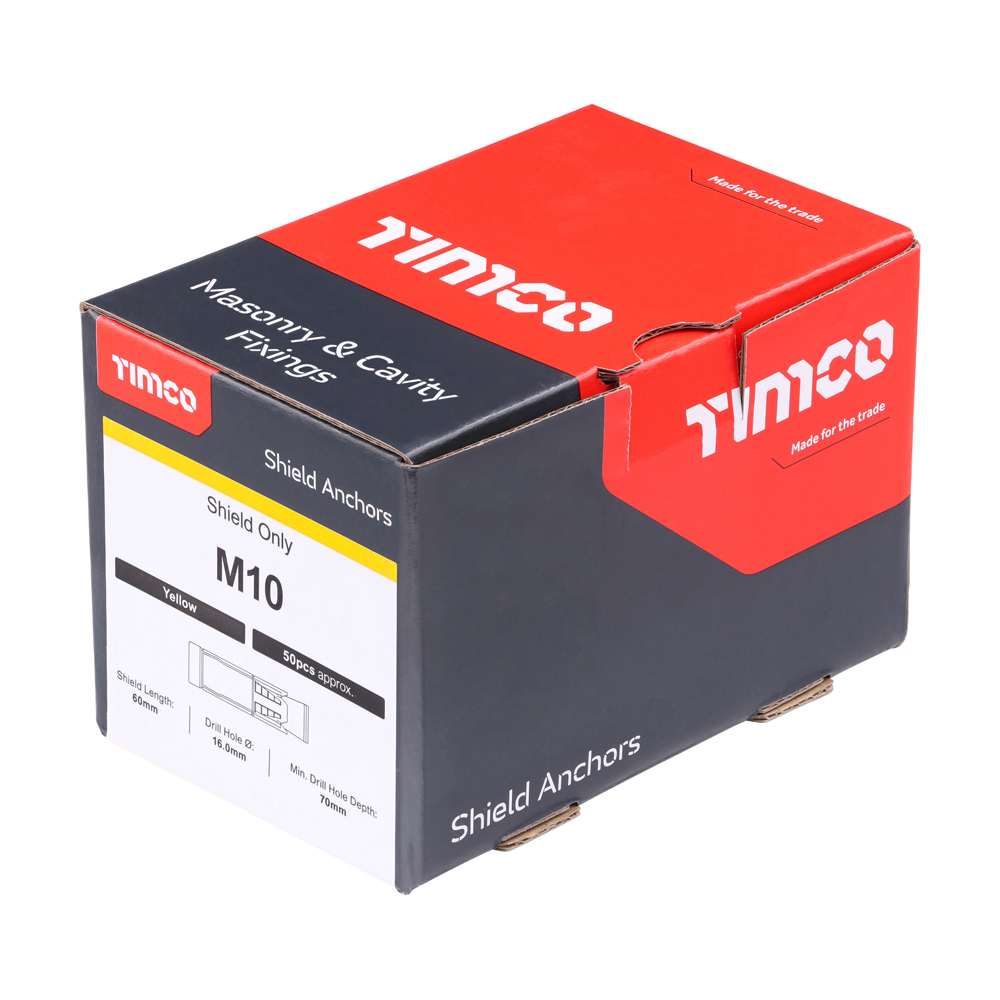

- Pack Type: Box
- Pack Quantity: 50
- Barcode: 5055017563555
