Product Information
The projecting stud allows the fixture to be positioned into place and then fastened secure.
- Compatible with most types of metric threaded components
- A three segmented expansion anchor used in concrete, brick or stone
- Torque controlled
- Stud grade 5.8
Documents
Technical Specifications
Product Specification
| Nut Size mm | M8 |
| Nut Socket Size mm | 13 |
| Shield Length mm | 50 |
| Stud Length mm | 70 |
| Washer Size mm | M8 |
| Type | Projecting |
| Centre Spacing mm | 150 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Fixture Hole Diameter mm | 10 |
| Max Fixture Thickness mm | 10 |
| Min Drill Hole Depth mm | 60 |
| Pack Dimensions L x W x H mm | 186 x 94 x 90 |
| Pack Weight kg | 2.56 |
| Carton Qty Packs | 6 |
| Pallet Qty Packs | 240 |
| Product Code | 0810PSH |
| SKU Barcode | 5055017563715 |
| Thread Dia mm | M8 |
| Drill Hole Dia mm | 14 |
Product Specifications
| Finish | Zinc & Yellow |
| Material | Carbon Steel |
| Point Type | B Point |
| Thread Type | Metric |
| Included Items | M8 Form A Washers (Qty 50), M8 Hex Full Nuts (Qty 50) |
| Substrates | Concrete, Brick, Stone |
Attribute Group 1
| Brand | TIMCO |

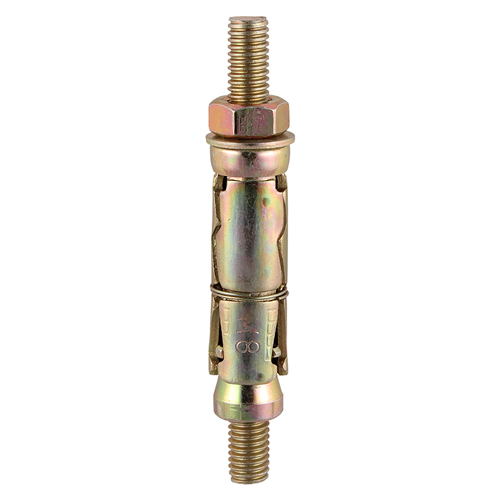

Shield Anchor - Projecting Bolts - Yellow
M8:10P (M8 x 70)
- Product Code: 0810PSH
- Pack Type: Box
- Pack Quantity: 50
- Barcode: 5055017563715
