Product Information
The projecting stud allows the fixture to be positioned into place and then fastened secure.
- Compatible with most types of metric threaded components
- A three segmented expansion anchor used in concrete, brick or stone
- Torque controlled
- Stud grade 5.8
Documents
Technical Specifications
Product Specification
| Nut Socket Size mm | 17 |
| Shield Length mm | 60 |
| Stud Length mm | 130 |
| Type | Projecting |
| Centre Spacing mm | 180 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Fixture Hole Diameter mm | 12 |
| Max Fixture Thickness mm | 60 |
| Min Drill Hole Depth mm | 70 |
| Pack Dimensions L x W x H mm | 265 x 152 x 50 |
| Pack Weight kg | 1.57 |
| Carton Qty Packs | 5 |
| Pallet Qty Packs | 400 |
| Product Code | 1060PSHB |
| SKU Barcode | 5055331821034 |
| Size Thread Dia x L mm | M10 x 130 |
| Thread Dia mm | M10 |
| Drill Hole Dia mm | 16 |
Product Specifications
| Finish | Zinc & Yellow |
| Material | Carbon Steel |
| Point Type | B Point |
| Thread Type | Metric |
| Substrates | Concrete, Brick, Stone |
Attribute Group 1
| Brand | TIMCO |

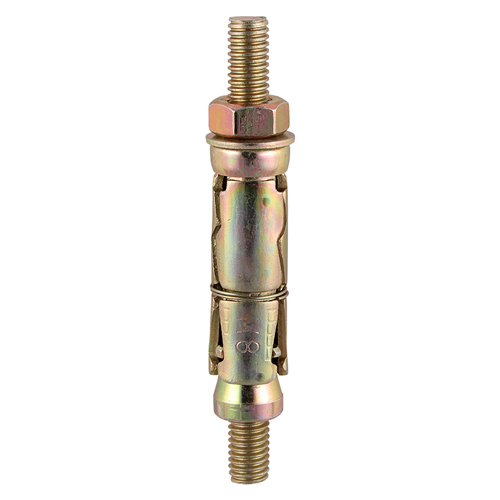

Shield Anchor Projecting Bolts - Yellow
M10:60P (M10 x 130)
- Product Code: 1060PSHB

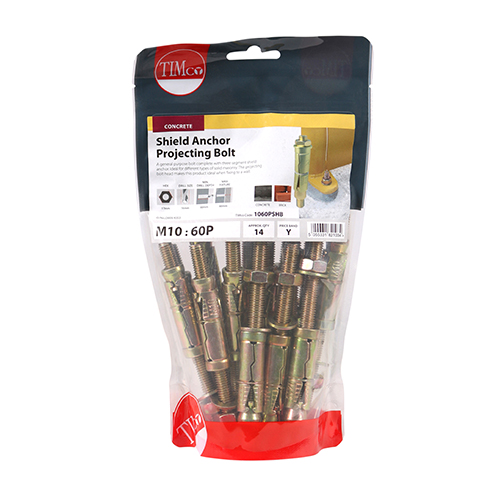

- Pack Type: TIMbag
- Pack Quantity: 14
- Barcode: 5055331821034
