Product Information

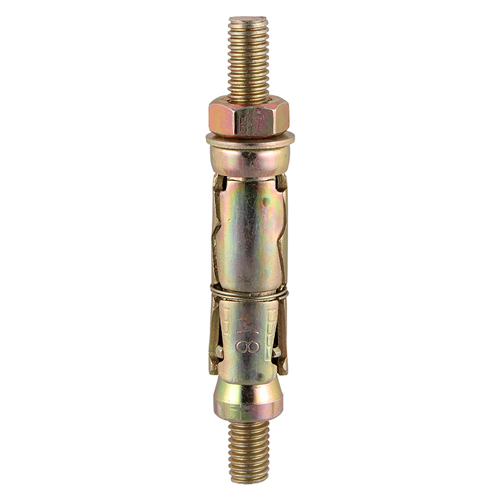

The projecting stud allows the fixture to be positioned into place and then fastened secure.
- Compatible with most types of metric threaded components
- A three segmented expansion anchor used in concrete, brick or stone
- Torque controlled
- Stud grade 5.8
Documents
Technical Specifications
Product Specification
| Nut Size mm | M12 |
| Nut Socket Size mm | 19 |
| Shield Length mm | 75 |
| Stud Length mm | 120 |
| Washer Size mm | M12 |
| Type | Projecting |
| Centre Spacing mm | 225 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Fixture Hole Diameter mm | 14 |
| Max Fixture Thickness mm | 30 |
| Min Drill Hole Depth mm | 85 |
| Pack Dimensions L x W x H mm | 140 x 94 x 64 |
| Pack Weight kg | 1.68 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | 360 |
| Product Code | 1230PSH |
| SKU Barcode | 5055017563784 |
| Thread Dia mm | M12 |
| Drill Hole Dia mm | 20 |
Product Specifications
| Finish | Zinc & Yellow |
| Material | Carbon Steel |
| Point Type | B Point |
| Thread Type | Metric |
| Included Items | M12 Form A Washers (Qty 10), M12 Hex Full Nuts (Qty 10) |
| Substrates | Concrete, Brick, Stone |
Attribute Group 1
| Brand | TIMCO |
Shield Anchor - Projecting Bolts - Yellow
M12:30P (M12 x 120)
- Product Code: 1230PSH
- Pack Type: Box
- Pack Quantity: 10
- Barcode: 5055017563784
