Product Information

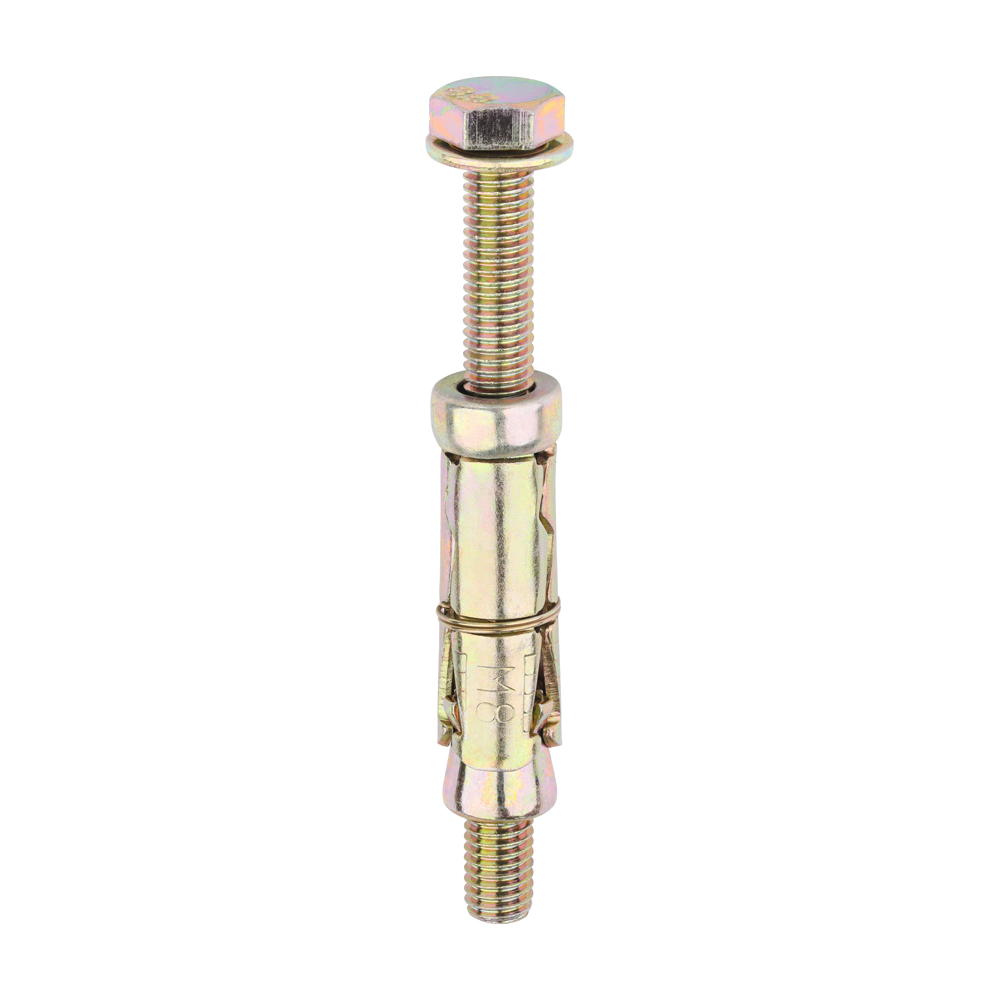

Ideal for fixing through the fixture once the shield has been installed into substrate.
- Compatible with most types of metric threaded components
- A three segmented expansion anchor used in concrete, brick or stone
- Torque controlled
- Bolt grade 8.8
Documents
Technical Specifications
Product Specification
| Bolt Length mm | 90 |
| Shield Length mm | 50 |
| Socket Size mm | 13 |
| Type | Loose |
| Centre Spacing mm | 150 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Fixture Hole Diameter mm | 10 |
| Max Fixture Thickness mm | 40 |
| Min Drill Hole Depth mm | 60 |
| Pack Dimensions L x W x H mm | 15 x 90 x 163 |
| Pack Weight kg | 0.24 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | 3000 |
| Product Code | 0840LSHP |
| SKU Barcode | 5055331828637 |
| Size Thread Dia x L mm | M8 x 90 |
| Thread Dia mm | M8 |
| Drill Hole Dia mm | 14 |
Product Specifications
| Finish | Zinc & Yellow |
| Material | Carbon Steel |
| Point Type | B Point |
| Thread Type | Metric |
| Substrates | Concrete, Brick, Stone |
Attribute Group 1
| Brand | TIMCO |

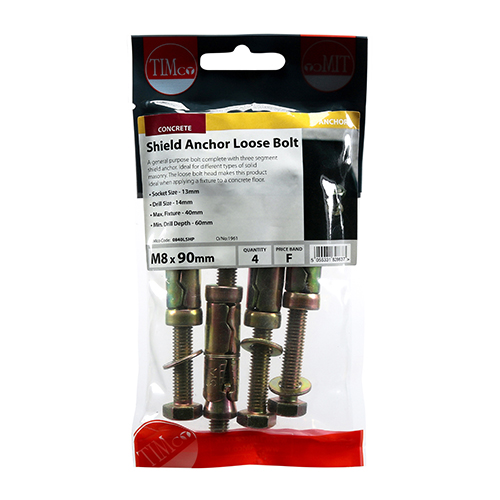

Shield Anchor Loose Bolts - Yellow
M8:40L (M8 x 90)
- Product Code: 0840LSHP
- Pack Type: TIMpac
- Pack Quantity: 4
- Barcode: 5055331828637
