Product Information
Ideal for fixing through the fixture once the shield has been installed into substrate.
- Compatible with most types of metric threaded components

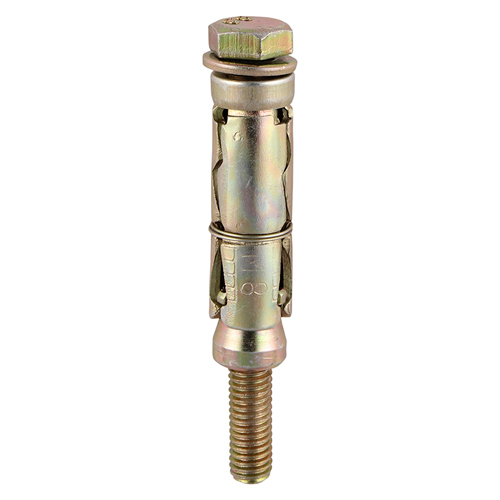

- A three segmented expansion anchor used in concrete, brick or stone
- Torque controlled
- Bolt grade 8.8
Documents
Technical Specifications
Product Specification
| Bolt Length mm | 85 |
| Shield Length mm | 60 |
| Socket Size mm | 17 |
| Washer Size mm | M10 |
| Finish | Zinc & Yellow |
| Material | Carbon Steel |
| Point Type | B Point |
| Thread Type | Metric |
| Type | Loose |
| Centre Spacing mm | 180 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Fixture Hole Diameter mm | 12 |
| Included Items | M10 Form A Washers (Qty 25) |
| Max Fixture Thickness mm | 25 |
| Min Drill Hole Depth mm | 70 |
| Substrates | Concrete, Brick, Stone |
| Pack Dimensions L x W x H mm | 188 x 92 x 64 |
| Pack Weight kg | 2.34 |
| Carton Qty Packs | 8 |
| Pallet Qty Packs | 256 |
| Product Code | 1025LSH |
| SKU Barcode | 5055017564149 |
| Thread Dia mm | M10 |
| Drill Hole Dia mm | 16 |
Attribute Group 1
| Brand | TIMCO |

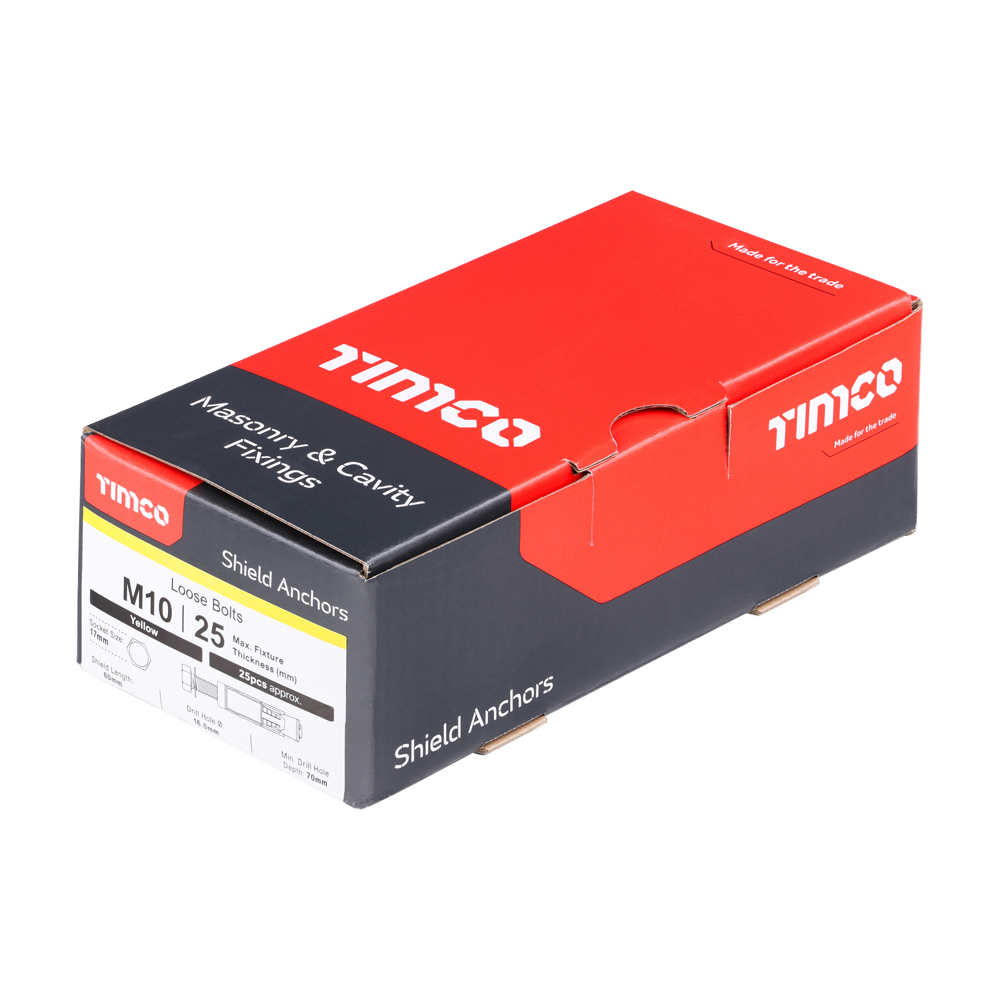

Shield Anchor - Loose Bolts - Yellow
M10:25L (M10 x 85)
- Product Code: 1025LSH
- Pack Type: Box
- Pack Quantity: 25
- Barcode: 5055017564149
