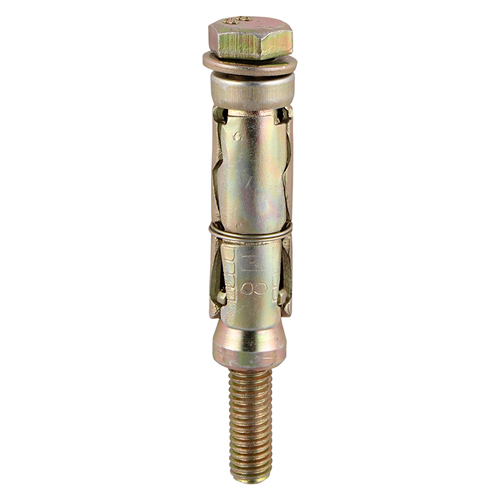

Product Information
Ideal for fixing through the fixture once the shield has been installed into substrate.
- Compatible with most types of metric threaded components
- A three segmented expansion anchor used in concrete, brick or stone
- Torque controlled
- Bolt grade 8.8
Documents
Technical Specifications
Product Specification
| Bolt Length mm | 135 |
| Shield Length mm | 60 |
| Socket Size mm | 17 |
| Washer Size mm | M10 |
| Type | Loose |
| Centre Spacing mm | 180 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Fixture Hole Diameter mm | 12 |
| Max Fixture Thickness mm | 75 |
| Min Drill Hole Depth mm | 70 |
| Pack Dimensions L x W x H mm | 186 x 94 x 92 |
| Pack Weight kg | 3.06 |
| Carton Qty Packs | 6 |
| Pallet Qty Packs | 240 |
| Product Code | 1075LSH |
| SKU Barcode | 5055017564163 |
| Thread Dia mm | M10 |
| Drill Hole Dia mm | 16 |
Product Specifications
| Finish | Zinc & Yellow |
| Material | Carbon Steel |
| Point Type | B Point |
| Thread Type | Metric |
| Included Items | M10 Form A Washers (Qty 25) |
| Substrates | Concrete, Brick, Stone |
Attribute Group 1
| Brand | TIMCO |
Shield Anchor - Loose Bolts - Yellow
M10:75L (M10 x 135)
- Product Code: 1075LSH
- Pack Type: Box
- Pack Quantity: 25
- Barcode: 5055017564163
