Product Information

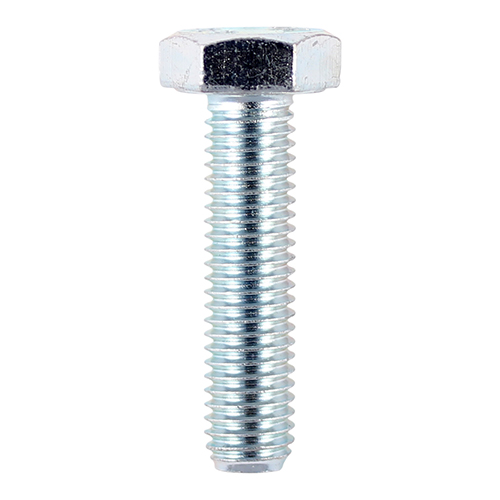

A fully threaded, grade 8.8 high tensile set screw used in a wide variety of applications. NOTE: Nuts not included.
- Plated in Trivalent Chromium (Cr3) Zinc
- Manufactured from grade 8.8 carbon steel
Documents
Technical Specifications
Product Specification
| Length mm | 45 |
| Size mm | M16 x 45 |
| Socket Size mm | 24 |
| Thread Pitch mm | 2 |
| Material Grade | 8.8 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Pack Dimensions L x W x H mm | 142 x 80 x 238 |
| Pack Weight kg | 4.85 |
| Carton Qty Packs | 4 |
| Pallet Qty Packs | 144 |
| DIN Standard | DIN 933 |
| Product Code | S1645Z |
| SKU Barcode | 5055331841827 |
| Thread Dia mm | M16 |
Product Specifications
| Finish | Zinc & Clear Cr3 |
| Head Type | Hex |
| Material | Carbon Steel |
| Point Type | B Point |
| Thread Coverage | Fully Threaded |
| Thread Type | Metric |
| Substrates | Steel, Thin Sheet Metal |
Attribute Group 1
| Brand | TIMCO |
Set Screws - Grade 8.8 - Zinc
M16 x 45
- Product Code: S1645Z
- Pack Type: Box
- Pack Quantity: 50
- Barcode: 5055331841827
