Product Information
A fully threaded, grade 8.8 high tensile set screw used in a wide variety of applications. NOTE: Nuts not included.
- Plated in Trivalent Chromium (Cr3) Zinc
- Manufactured from grade 8.8 carbon steel
Documents
Technical Specifications
Product Specification
| Length mm | 60 |
| Size mm | M20 x 60 |
| Socket Size mm | 30 |
| Thread Pitch mm | 2.5 |
| Material Grade | 8.8 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Pack Dimensions L x W x H mm | 222 x 90 x 140 |
| Pack Weight kg | 4.97 |
| Carton Qty Packs | 4 |
| Pallet Qty Packs | 144 |
| DIN Standard | DIN 933 |
| Product Code | S2060Z |
| SKU Barcode | 5055331841957 |
| Thread Dia mm | M20 |
Product Specifications
| Finish | Zinc & Clear Cr3 |
| Head Type | Hex |
| Material | Carbon Steel |
| Point Type | B Point |
| Thread Coverage | Fully Threaded |
| Thread Type | Metric |
| Substrates | Steel, Thin Sheet Metal |
Attribute Group 1
| Brand | TIMCO |

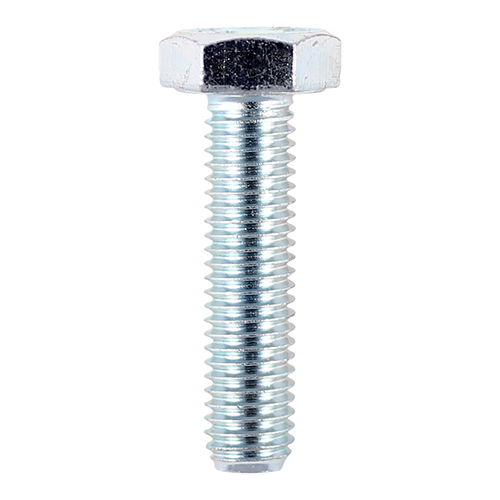

Set Screws - Grade 8.8 - Zinc
M20 x 60
- Product Code: S2060Z
- Pack Type: Box
- Pack Quantity: 25
- Barcode: 5055331841957
