Product Information

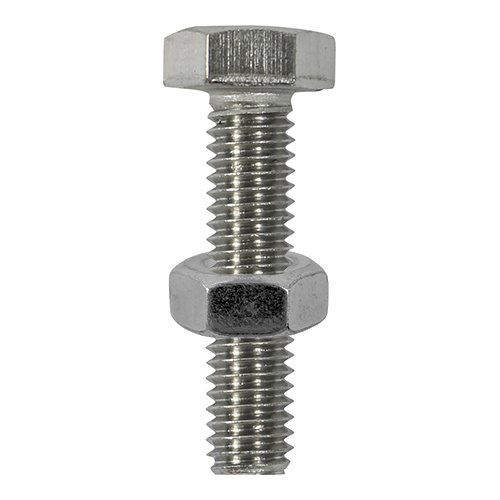

A fully threaded set screw used in a variety of applications. Manufactured from A2 Stainless Steel offering superior corrosion resistance, perfect for external applications. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak. NOTE: Nuts included.
Documents
Technical Specifications
Product Specification
| Length mm | 30 |
| Nut Size mm | M12 |
| Nut Socket Size mm | 19 |
| Size mm | M12 x 30 |
| Socket Size mm | 19 |
| Thread Pitch mm | 1.75 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Pack Dimensions L x W x H mm | 15 x 90 x 133 |
| Pack Weight kg | 0.11 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| DIN Standard | DIN 933, DIN 934 |
| Product Code | S1230SSP |
| SKU Barcode | 5055893369166 |
| Thread Dia mm | M12 |
Product Specifications
| Head Type | Hex |
| Material | Austenitic Stainless Steel (A2-304) |
| Nut Type | Hex Full |
| Point Type | B Point |
| Thread Coverage | Fully Threaded |
| Thread Type | Metric |
| Included Items | M12 Hex Full Nuts |
| Substrates | Steel, Thin Sheet Metal |
Attribute Group 1
| Brand | TIMCO |

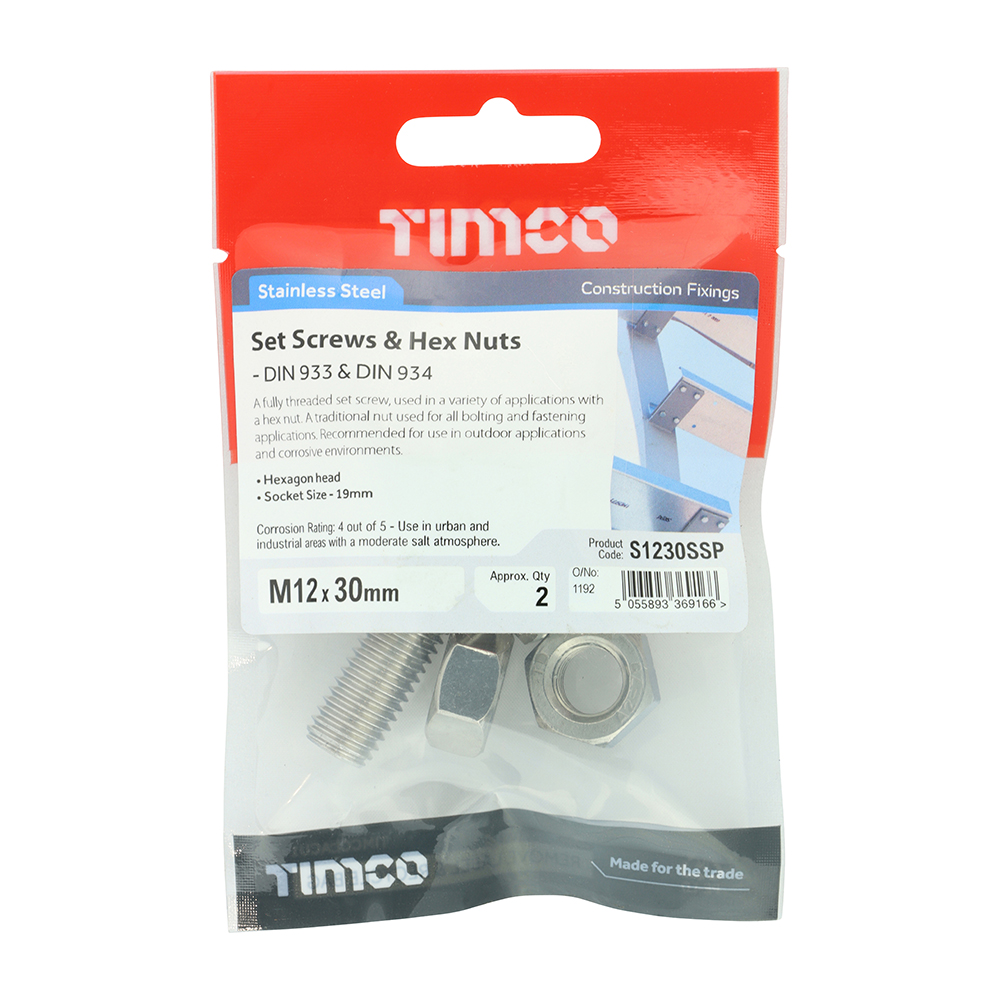

Set Screws & Hex Nuts - Stainless Steel
M12 x 30
- Product Code: S1230SSP
- Pack Type: TIMpac
- Pack Quantity: 2
- Barcode: 5055893369166
