Product Information

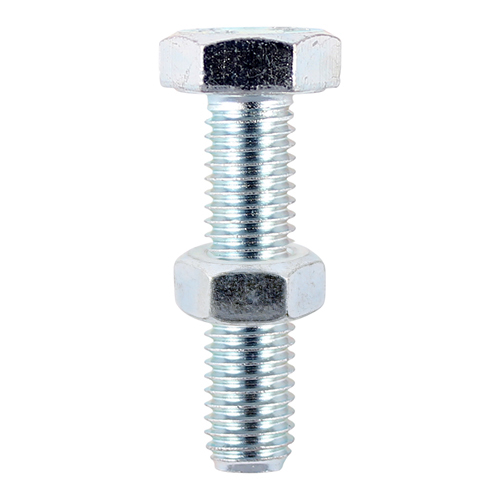

A fully threaded high tensile set screw with hex nut, used in a wide variety of applications. NOTE: Nuts included.
- Plated in Trivalent Chromium (Cr3) Zinc
- Manufactured from grade 8.8 carbon steel
Documents
Technical Specifications
Product Specification
| Length mm | 80 |
| Nut Size mm | M10 |
| Nut Socket Size mm | 17 |
| Size mm | M10 x 80 |
| Socket Size mm | 17 |
| Thread Pitch mm | 1.5 |
| Material Grade | 8.8 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Pack Dimensions L x W x H mm | 15 x 90 x 163 |
| Pack Weight kg | 0.12 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| DIN Standard | DIN 933, DIN 934 |
| Product Code | 1080SNZP |
| SKU Barcode | 5055893381502 |
| Thread Dia mm | M10 |
Product Specifications
| Finish | Zinc & Clear Cr3 |
| Head Type | Hex |
| Material | Carbon Steel |
| Nut Type | Hex Full |
| Point Type | B Point |
| Thread Coverage | Fully Threaded |
| Thread Type | Metric |
| Included Items | M10 Hex Full Nuts |
| Substrates | Steel, Thin Sheet Metal |
Attribute Group 1
| Brand | TIMCO |

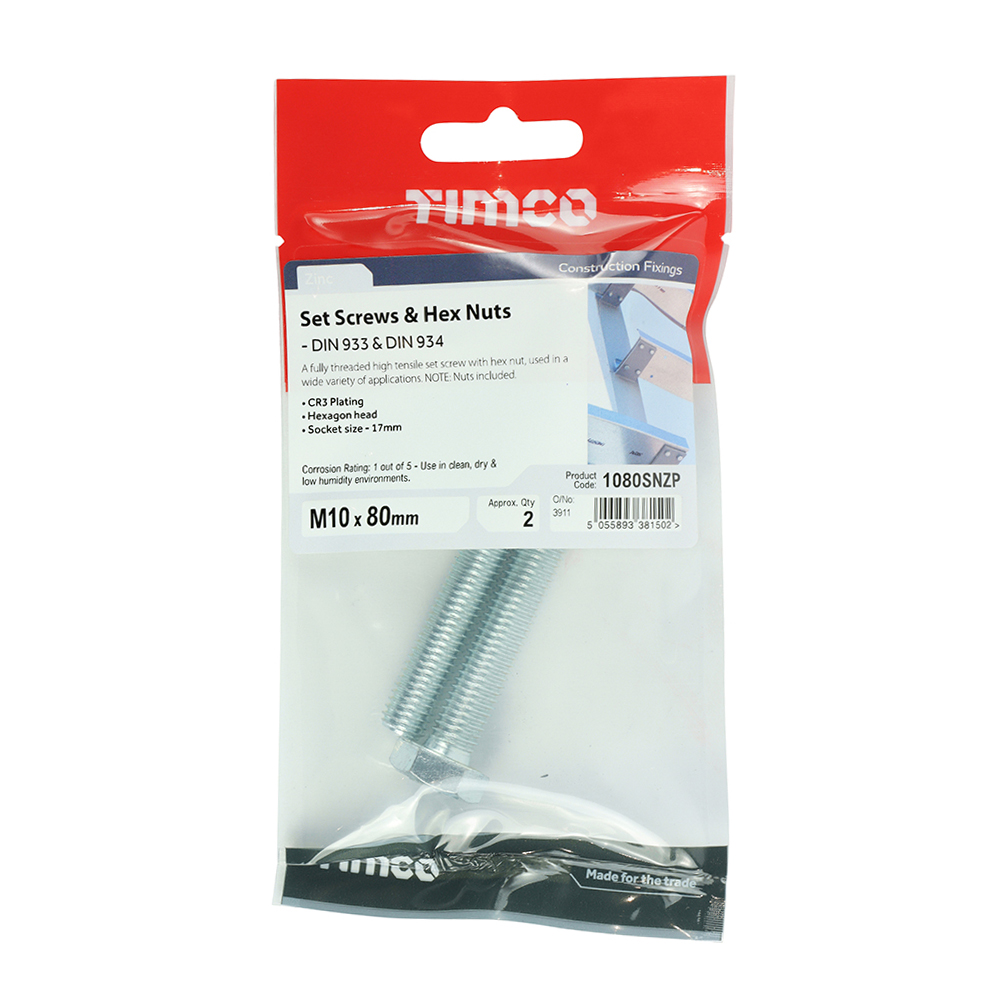

Set Screws & Hex Nuts - Grade 8.8 - Zinc
M10 x 80
- Product Code: 1080SNZP
- Pack Type: TIMpac
- Pack Quantity: 2
- Barcode: 5055893381502
