Product Information
Used for stitching metal or attaching to metal. A pre-drilled hole is required. Pan head for improved clamping.
- Pan head for extra clamping
- Plated in Trivalent Chromium (Cr3) Zinc
- 60° self-tapping thread for ease of insertion
- Manufactured to BS 4174:1972
Documents
Technical Specifications
Product Specifications
| Gauge | 8 |
| Finish | Zinc & Clear Cr3 |
| Head Type | Pan |
| Material | Carbon Steel |
| Point Type | AB Point |
| Recess Type | Pozi |
| Thread Coverage | Fully Threaded |
| Thread Type | 60° Self-Tapping |
| Driver Bit Size | PZ2 |
| Substrates | Steel, Thin Sheet Metal |
| Approval | BS 4174:1972 |
Product Specification
| Length inch | 5/8 |
| Length mm | 16 |
| Diameter mm | 4.2 |
| Size mm | 4.2 x 16 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Pack Dimensions L x W x H mm | 15 x 90 x 133 |
| Pack Weight kg | 0.03 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | 6000 |
| Product Code | 00858CPAZP |
| SKU Barcode | 5055893307878 |
| Size imp | 8 x 5/8 |
| Thread Dia mm | 4.2 |
Attribute Group 1
| Brand | TIMCO |

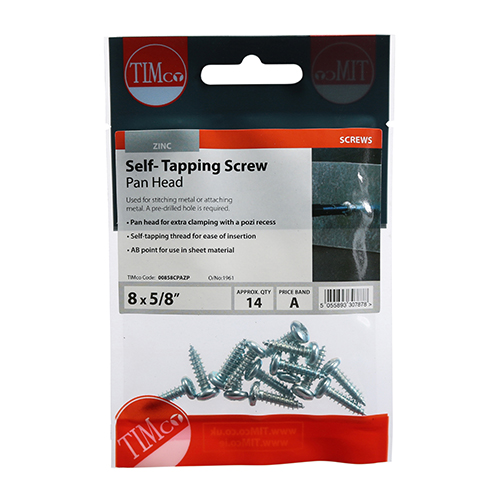

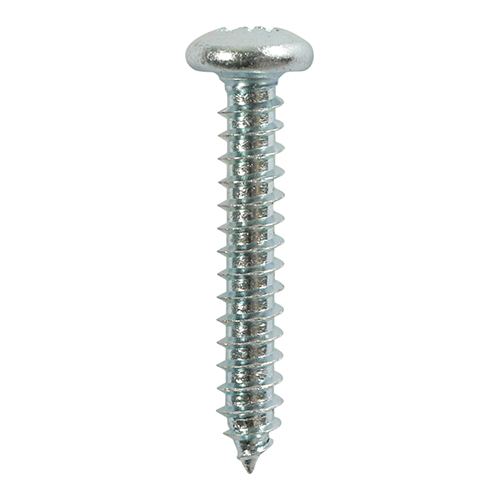

Self-Tapping Screws - PZ - Pan - Zinc
8 x 5/8
- Product Code: 00858CPAZP
- Pack Type: TIMpac
- Pack Quantity: 14
- Barcode: 5055893307878
