Product Information
A high security, heavy duty hasp and staple for sheds, gates and doors in heavy domestic, commercial and agricultural applications. Bolt fixed for additional security. Fixings not included.
Documents
Technical Specifications
Product Specification
| Fixing Plate Size L x W mm | 158 x 55 |
| Hasp Plate Size L x W mm | 92 x 55 |
| Size inch | 10 |
| Size mm | 250 |
| Staple Plate Size L x W mm | 65 x 55 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Max Padlock Shackle Diameter mm | 15 |
| Pack Dimensions L x W x H mm | 160 x 20 x 290 |
| Pack Weight kg | 0.64 |
| Carton Qty Packs | 30 |
| Pallet Qty Packs | N/A |
| Product Code | BHS10GB |
| SKU Barcode | 5055893356203 |
| Rec Screw Dia mm | 5.0 |
| To Fit Carriage Bolt Dia mm | M12 |
| No of Bolt Holes | 1 |
Product Specifications
| Finish | Hot Dipped Galvanised |
| Material | Carbon Steel |
Attribute Group 1
| Brand | TIMCO |

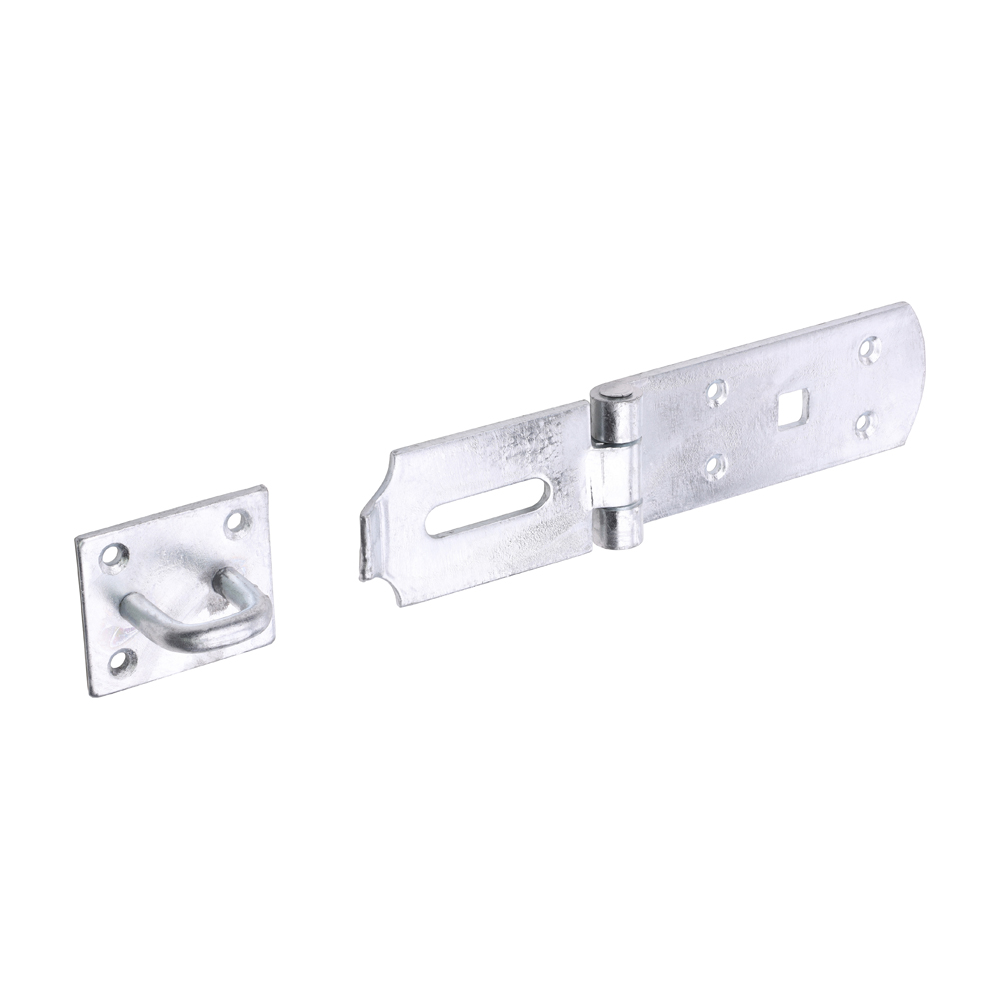

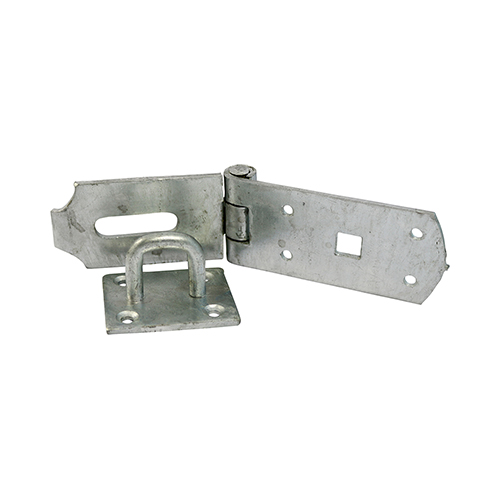

Secure Bolt On Hasp & Staple - Heavy Duty - Hot Dipped Galvanised
10"
- Product Code: BHS10GB
- Pack Type: Plain Bag
- Pack Quantity: 1
- Barcode: 5055893356203
