Product Information
A high security, heavy duty hasp and staple for sheds, gates and doors in heavy domestic, commercial and agricultural applications. Bolt fixed for additional security. Fixings included.
Documents
Technical Specifications
Product Specification
| Carriage Bolt Size mm | M12 x 75 |
| Fixing Plate Size L x W mm | 158 x 55 |
| Hasp Plate Size L x W mm | 92 x 55 |
| Nut Size mm | M12 |
| Size inch | 10 |
| Size mm | 250 |
| Staple Plate Size L x W mm | 65 x 55 |
| Washer Size mm | M12 |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| CSK Screw Size mm | 5.0 x 30 |
| Max Padlock Shackle Diameter mm | 15 |
| No of Nuts | 1 |
| No of CSK Screws | 8 |
| No of Carriage Bolts | 1 |
| No of Washers | 1 |
| Pack Dimensions L x W x H mm | 283 x 150 x 61 |
| Pack Weight kg | 0.724 |
| Carton Qty Packs | 5 |
| Pallet Qty Packs | N/A |
| Product Code | BHS10BP |
| SKU Barcode | 5055893367018 |
| Rec Screw Dia mm | 5.0 |
| To Fit Carriage Bolt Dia mm | M12 |
| No of Bolt Holes | 1 |
Product Specifications
| Finish | Epoxy Black |
| Material | Carbon Steel |
| Nut Type | Hex Full |
| Included Items | M12 x 75mm Carriage Bolt (Qty 1), M12 Hex Full Nut (Qty 1), M12 Washer (Qty 1), 5.0 x 30mm Countersunk Screws (Qty 8) |
Attribute Group 1
| Brand | TIMCO |

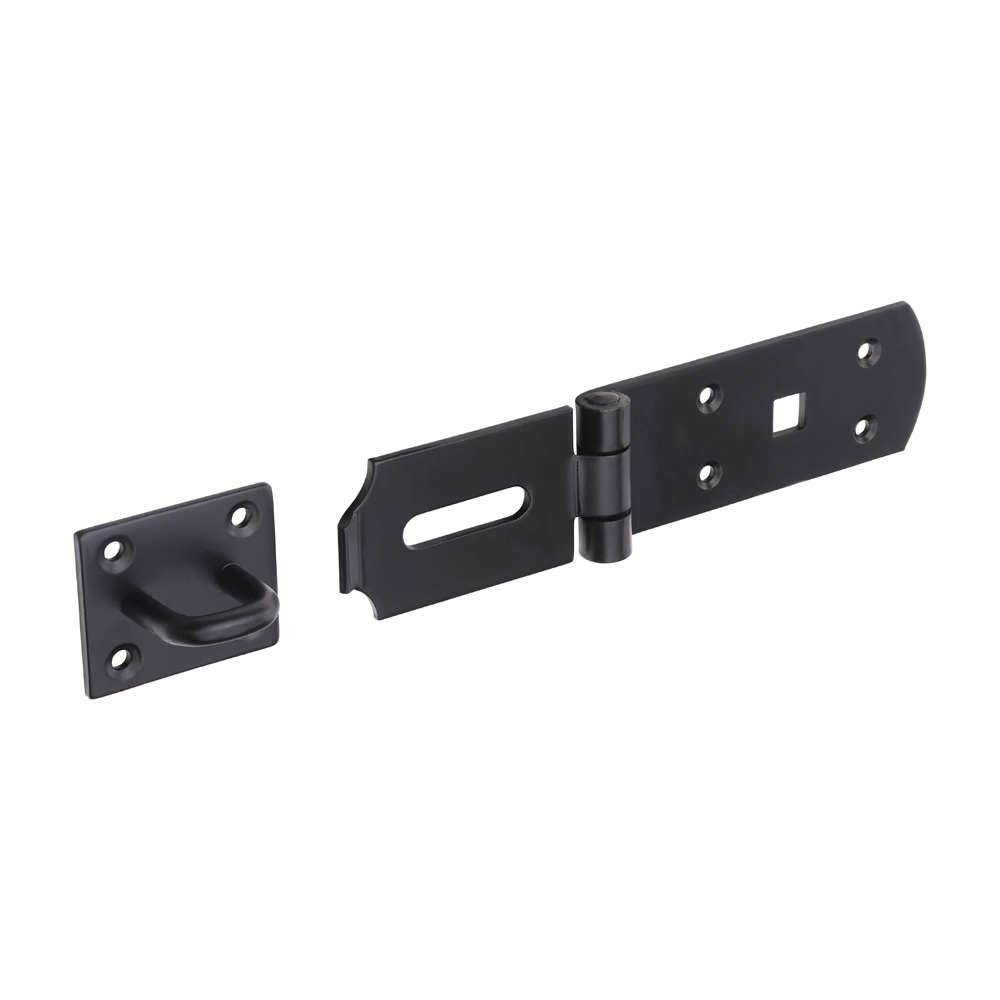

Secure Bolt On Hasp & Staple - Heavy Duty - Black
10"
- Product Code: BHS10BP

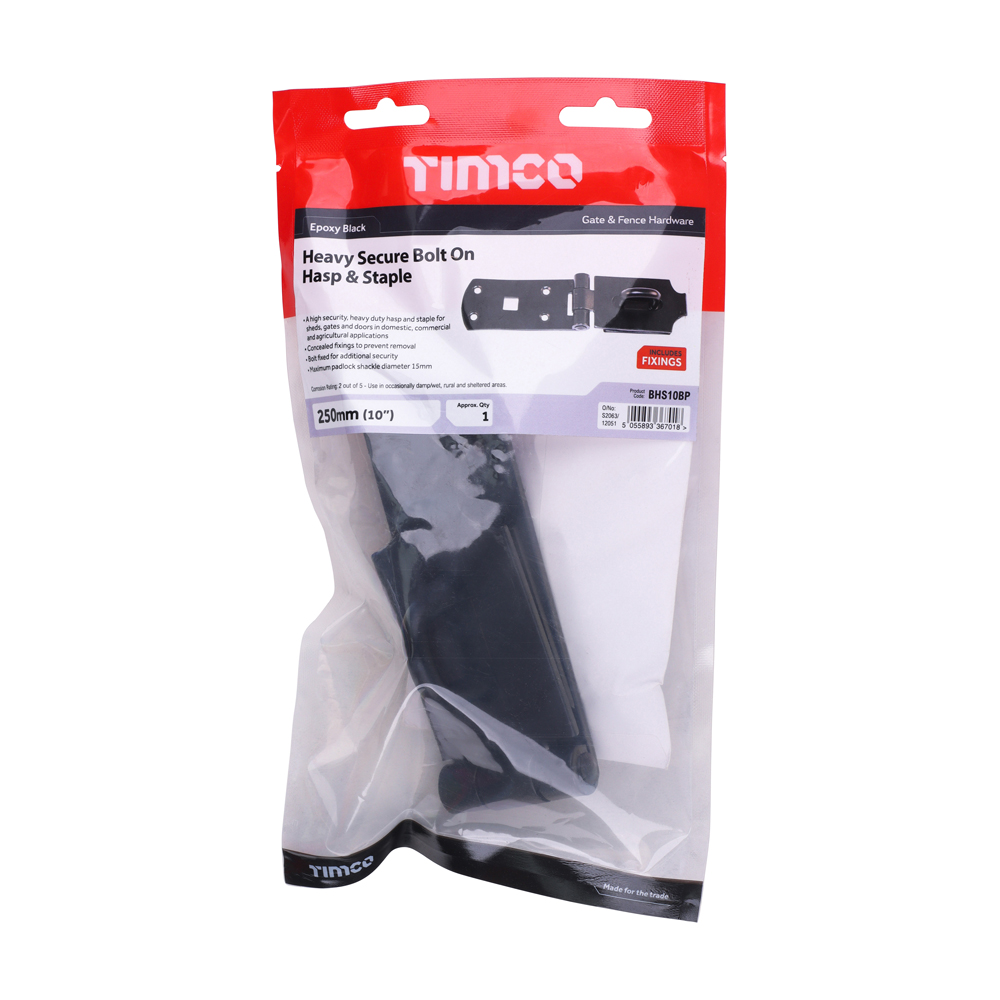

- Pack Type: TIMbag
- Pack Quantity: 1
- Barcode: 5055893367018
